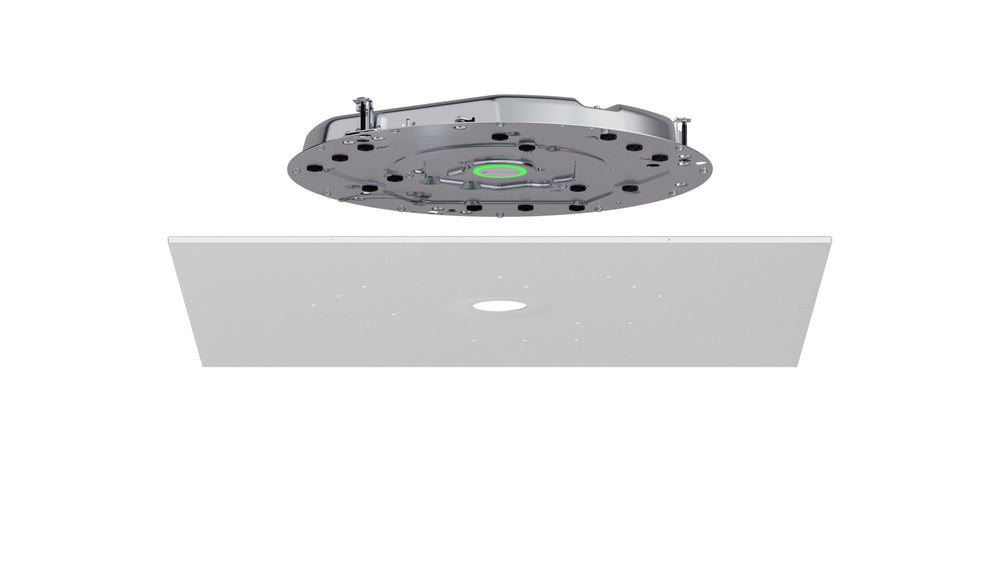

The Sennheiser TeamConnect Ceiling M Plus (model 700519) is a ceiling-mounted conference microphone array designed for medium to large flexible meeting rooms. It features 15 precision capsules and automatic dynamic beamforming to capture voice clearly up to 4.3 meters away. Smart-Boards supplies this device to organizations in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and Africa, offering quote-based pricing and regional logistics.
This Sennheiser TeamConnect Ceiling M Plus integrates fifteen German-engineered condenser capsules to deliver reliable audio capture in spaces up to 60 square meters. The unit utilizes automatic dynamic beamforming and TruVoiceLift technology to isolate speaker voices while reducing background noise. It connects via a single cable in split or daisy-chain mode, supporting automatic speaker-position detection for camera tracking. The device operates within a 100 Hz to 16,000 Hz frequency response and consumes approximately 8 W of power.
Management and configuration are simplified through the browser-based LUI interface and Sennheiser DeviceHub for centralized cloud control. PartnerLink enables direct integration with third-party AV platforms, streamlining deployment for IT teams. The microphone reduces background interference to ensure speech intelligibility, making it suitable for ministries, schools, and corporate offices. Smart-Boards provides this solution to buyers in the GCC and Africa, with delivery times confirmed on the quotation and on-site installation available within the UAE only.
Key features
- Beamforming Technology - Automatic dynamic beamforming with 15 capsules captures voice clearly up to 4.3 meters across rooms of 60 square meters.
- Device Management - Centralized control via Sennheiser DeviceHub and direct configuration through PartnerLink integration with third-party AV platforms.
- Audio Performance - Pre-polarised condenser array with a dynamic range of 83 dB(A) and sensitivity of 0 dBV/Pa for accurate voice lifting.
- Connectivity Options - Wired connection supports single cable, split mode, or daisy-chain topologies with a 3-pin terminal output for Phoenix Contact.
- Operational Reliability - Features energy-saving standby mode, automatic speaker-position detection for camera tracking, and operation up to 95% RH humidity.
Ideal for medium to large flexible collaboration spaces in schools, universities, and corporate offices across the GCC and Africa requiring reliable ceiling audio capture.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TeamConnect Ceiling M Plus CT-W
- Product type
- Ceiling Microphone Array
- Key features
- Automatic dynamic beamforming, 4.3 m (14 ft) pickup, 15 capsules, TruVoiceLift, DeviceHub management, browser-based setup (LUI), PartnerLink integration, camera tracking support
- Dynamic range
- 83 dB(A)
- Sensitivity
- 0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio
- 79 dB(A)
Display
- Frequency response
- 100 Hz to 16,000 Hz
Connectivity
- Connectivity options
- Wired (single cable, split mode or daisy-chain)
Camera & audio
- Audio out
- 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
- Max SPL
- 98 dB SPL
- Microphone type
- Pre-polarised condenser
- Pickup range
- Up to 4.3 m (14 ft)
Physical & warranty
- Operating humidity
- 20% to 95% RH, non-condensing
- Power consumption
- 8 W (approximate)
- Weight
- 4.1 kg
- Warranty
- 5 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the pickup range of the Sennheiser TeamConnect Ceiling M Plus?
Yes, it captures voice reliably up to 4.3 meters (14 feet). This range covers spaces up to 60 square meters effectively.
How is the device managed and configured?
It uses Sennheiser DeviceHub for cloud-based management and a browser-based LUI interface. PartnerLink allows direct configuration within third-party AV platforms.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners at the lowest possible cost.
Is on-site installation included outside the UAE?
No. On-site installation is available within the UAE only. Other countries receive the product ready for local setup with remote guidance if needed.
What is the warranty period for this microphone?
Yes, the Sennheiser TeamConnect Ceiling M Plus comes with a 5-year manufacturer warranty plus Smart-Boards after-sales support.
How many capsules does this ceiling microphone contain?
Yes, it is built with 15 precision German-engineered capsules to ensure accurate voice capture and enhanced beamforming performance.
What is the power consumption of the unit?
The device consumes approximately 8 W of power. It also features an energy-saving standby mode to reduce usage when not in active use.
