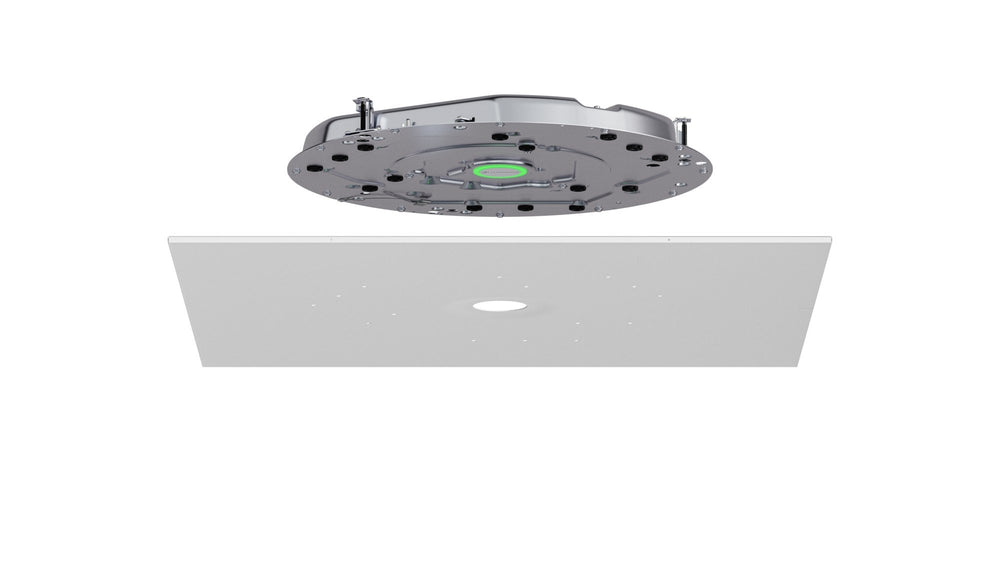

The Sennheiser TeamConnect Ceiling M Plus (700507) is a ceiling-mounted conference microphone array designed for medium and large meeting rooms. Featuring 15 German-engineered capsules and automatic dynamic beamforming, it captures voice up to 4.3 meters. Smart-Boards supplies this device across the GCC and Africa.
This ceiling microphone array eliminates the need for table-based hardware by mounting directly to the room ceiling. It utilizes 15 precision capsules and patented automatic dynamic beamforming to isolate speaker voice from background noise. The system provides a 4.3-meter pickup range, covering spaces up to 60 square meters. Browser-based setup via the Local User Interface simplifies initial configuration for IT teams.
Management and integration are streamlined through DeviceHub for cloud-based monitoring and PartnerLink for direct configuration in third-party AV platforms. It supports automatic speaker-position detection to assist camera tracking systems. Connectivity options include single cable, split mode, or daisy-chain connections via a 3-pin terminal. Energy consumption is approximately 8 watts, with an energy-saving standby mode to reduce operational costs.
Key features
- Acoustic Performance - 15 pre-polarised condenser capsules deliver a 100 Hz to 16,000 Hz frequency response with 83 dB(A) dynamic range.
- Pickup Coverage - Automatic dynamic beamforming ensures reliable voice capture up to 4.3 meters across rooms up to 60 square meters.
- Device Management - DeviceHub provides centralized cloud-based visibility, while PartnerLink allows direct configuration within partner AV platforms.
- Installation Options - Wired connectivity supports single cable, split mode, or daisy-chain setups using a 3-pin terminal fitting Phoenix Contact connectors.
- Smart Features - TruVoiceLift enhances natural voice lifting, and automatic speaker-position detection supports integrated camera tracking systems.
Ideal for: Medium and large flexible collaboration spaces in schools, universities, and corporate offices across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TeamConnect Ceiling M Plus F-W
- Product type
- Ceiling Microphone Array
- Key features
- Automatic dynamic beamforming, 4.3 m (14 ft) pickup, 15 capsules, TruVoiceLift, DeviceHub management, browser-based setup (LUI), PartnerLink integration, camera tracking support
- Dynamic range
- 83 dB(A)
- Sensitivity
- 0 dBV/Pa (1020 mV/Pa)
- Signal-to-noise ratio
- 79 dB(A)
Display
- Frequency response
- 100 Hz to 16,000 Hz
Connectivity
- Connectivity options
- Wired (single cable, split mode or daisy-chain)
Camera & audio
- Audio out
- 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
- Max SPL
- 98 dB SPL
- Microphone type
- Pre-polarised condenser
- Pickup range
- Up to 4.3 m (14 ft)
Physical & warranty
- Operating humidity
- 20% to 95% RH, non-condensing
- Power consumption
- 8 W (approximate)
- Weight
- 4.1 kg
- Warranty
- 5 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does it support camera tracking?
Yes, the Sennheiser TeamConnect Ceiling M Plus includes automatic speaker-position detection to support camera tracking integration.
What is the warranty period?
This model comes with a 5-year manufacturer warranty, plus Smart-Boards after-sales support for regions in the GCC and Africa.
Which countries receive delivery?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations.
Is installation included outside UAE?
On-site installation is available within the UAE only. Other countries receive delivery ready for local setup with remote guidance.
How is it managed remotely?
DeviceHub offers cloud-based device management, while PartnerLink enables direct configuration within third-party AV platforms.
What are the power specs?
The microphone consumes approximately 8 watts during operation and features an energy-saving standby mode to reduce power usage.
How is it connected?
It uses a single cable with optional split mode or daisy-chain connectivity via a 3-pin terminal compatible with Phoenix Contact MCVW 1.5-3-ST-3.81.
