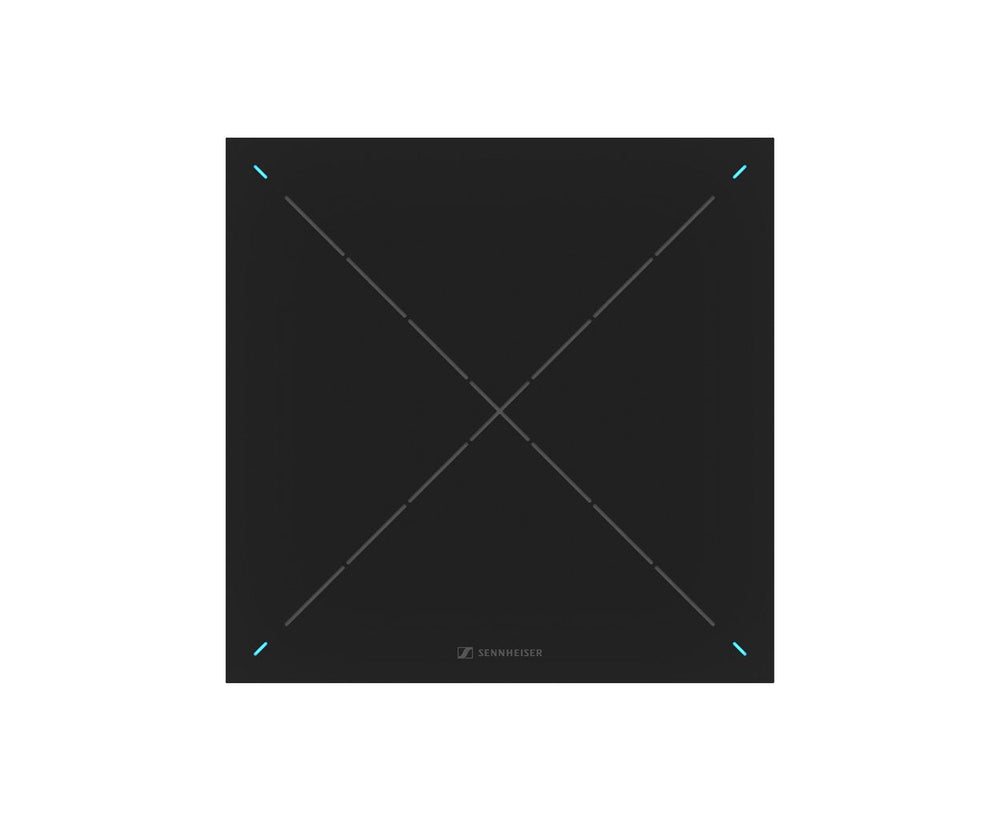

The Sennheiser TeamConnect Ceiling 2 US Kit (509178) is a ceiling-mounted audio solution replacing standard tiles. It features 28 electret capsules and PoE for clean installation. Smart-Boards supplies this certified conferencing hardware across the GCC and Africa.
This square array integrates seamlessly by replacing a ceiling tile, enabling cable-free table setups. It utilizes automatic dynamic beamforming and TruVoiceLift to capture speech clearly while suppressing background noise. The unit supports IEEE 802.1x security and offers flexible Dante or analog audio outputs for diverse AV architectures.
Designed for modern hybrid workspaces, the device ensures perfect speech intelligibility through priority and exclusion zones. It provides camera control data based on talker position, enhancing video conferencing accuracy. Certified for MS Teams, Zoom, DingTalk, and Tencent, it suits complex multi-site rollouts managed by Smart-Boards in Dubai.
Key features
- Beamforming Audio - Patented automatic dynamic beamforming captures voice from up to 12 meters while ignoring background noise.
- 28 Microphone Capsules - Contains 28 electret condenser capsules made in Germany for high dynamic range and sensitivity.
- Flexible Connectivity - Delivers audio via Dante digital or analog output, powered by IEEE 802.1x or standard PoE.
- Smart Control Zones - Allows users to define exclusion and priority zones, plus camera control via talker position data.
- Platform Certification - Officially certified for Microsoft Teams, Zoom, DingTalk, and Tencent for plug-and-play integration.
- Physical Mounting - Dimensions are 590 x 590 x 43 mm, designed to replace a standard ceiling tile directly.
- Audio Specifications - Features a frequency response of 160 Hz to 18,000 Hz and a dynamic range of 93 dB(A).
Ideal for boardrooms and large meeting spaces requiring clean aesthetics, suitable for buyers across the GCC and Africa needing reliable, certified audio infrastructure.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TeamConnect Ceiling 2 US Kit
- Product type
- Ceiling Microphone Array
- Key features
- Automatic dynamic beamforming, TruVoiceLift, 28 electret capsules, exclusion and priority zones, camera control via talker position, IEEE 802.1x, PoE, Dante or analog output
- Compatibility
- MS Teams, Zoom, DingTalk, Tencent
- Dynamic range
- 93 dB(A)
- PoE
- Yes
- Sensitivity
- 0 dBV/Pa (988 mV/Pa)
- Signal-to-noise ratio
- 83 dB(A)
Display
- Colour
- Black
- Frequency response
- 160 Hz to 18,000 Hz
Connectivity
- Connectivity options
- Wired
Camera & audio
- Audio out
- 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
- Max SPL
- 104 dB SPL
- Microphone type
- Pre-polarised condenser
Physical & warranty
- Mounting type
- Replaces a ceiling tile
- Operating humidity
- 20% to 95% RH, non-condensing
- Power consumption
- 8.8 W (maximum)
- Dimensions
- 590 x 590 x 43 mm
- Weight
- 5.67 kg
- Warranty
- 5 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product certified for major video platforms?
Yes, the TeamConnect Ceiling 2 US Kit is certified for Microsoft Teams, Zoom, DingTalk, and Tencent. This ensures direct compatibility without additional configuration for most standard deployments.
How does the microphone connect to the network?
It uses Power over Ethernet (PoE) for both data and power. The device supports IEEE 802.1x for secure network integration and outputs audio via Dante or analog connections to the mixer.
What are the dimensions and weight of the unit?
The unit measures 590 x 590 x 43 mm and weighs 5.67 kg. Its square form factor allows it to replace a standard ceiling tile, simplifying installation in suspended ceilings.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations. Logistics costs are minimized through established partners, with delivery times confirmed on the quotation.
Is on-site installation included for GCC orders?
On-site installation is available within the UAE only. For other GCC countries and Africa, the unit is delivered ready for local setup, with remote guidance provided by our technical team if needed.
Does it support camera tracking?
Yes, the device provides camera control data based on talker position. This allows connected PTZ cameras to automatically frame the active speaker, enhancing the video conferencing experience.
What warranty is provided with this kit?
Sennheiser provides a 5-year manufacturer warranty. Smart-Boards, as an authorised reseller, also offers after-sales support to assist with any technical questions or service requirements in the region.
