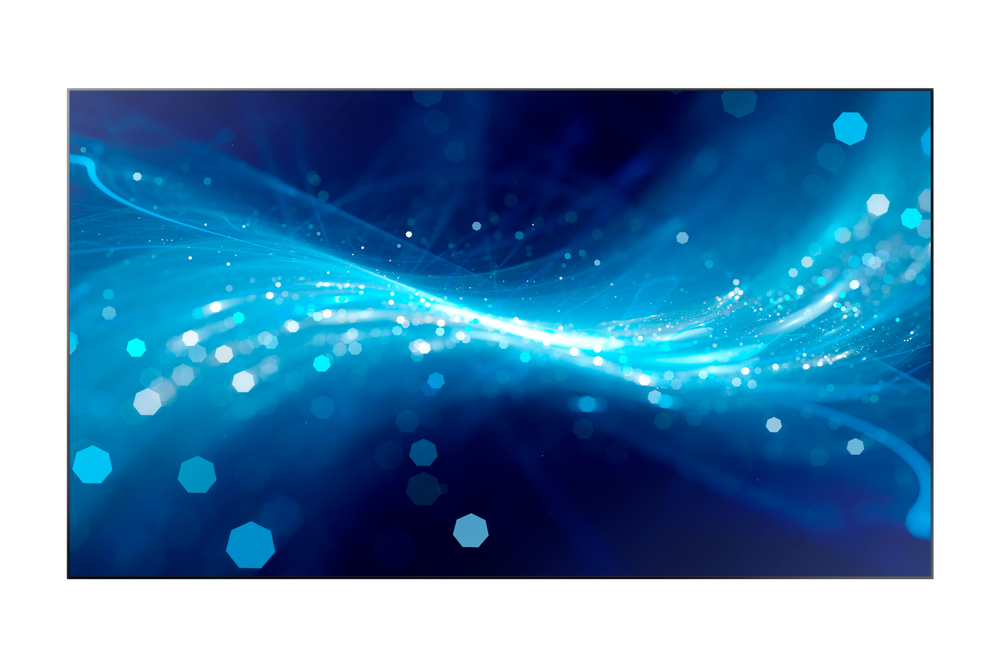

The Samsung UH46F5 is a 46-inch D-LED DID video wall display designed for professional multi-screen environments. It features a 1920 x 1080 resolution, 700 cd/m² brightness, and a narrow 3.4mm top/left bezel for clean imagery. Smart-Boards supplies this model across the GCC and Africa, offering authorized reseller support and regional logistics.
The Samsung UH46F5 Series 46-inch display utilizes D-LED technology to deliver consistent image quality in video wall configurations. With a maximum brightness of 700 cd/m² and a 4000:1 contrast ratio, it ensures clear visibility in well-lit commercial spaces. The panel supports 8-bit color depth, rendering 16.7 million colors with a 72% color gamut for accurate reproduction. Its 178-degree horizontal and vertical viewing angles allow audiences to see consistent images from various positions within the installation area.
Connectivity options include two HDMI inputs, one DisplayPort, and one DVI input, alongside D-Sub RGB and RS232 ports for system integration. The device operates on AC 100-240 V power, consuming a maximum of 132W, and fits standard VESA 400 x 400mm mounting patterns. The unit measures 1023.8 x 578.4 x 47.9mm with a package weight of 19.2kg. Smart-Boards provides this hardware to organizations in the UAE, KSA, Qatar, and other African markets, managing delivery and technical documentation for multi-site deployments.
Key features
- Narrow Bezel Design - Features a 3.4mm bezel width on the top and left edges, and 2.0mm on the right and bottom, minimizing visual gaps in multi-display setups.
- Professional Connectivity - Equipped with dual HDMI, single DisplayPort, DVI, RS232 in/out, and RJ45 inputs for robust control and signal integration.
- High Brightness Output - Delivers a typical brightness of 700 cd/m² to maintain image clarity in ambient lighting conditions common in lobbies and control rooms.
- D-LED Panel Technology - Uses D-LED (Direct LED) backlighting to provide uniform illumination and reliable performance for continuous video wall operation.
- Standard VESA Mount - Supports WMN-46VD mounting hardware via a 400 x 400mm VESA pattern for flexible installation on walls or stands.
Ideal for corporate lobbies, control rooms, and educational facilities requiring durable multi-screen displays, suitable for buyers across the GCC and Africa managing regional AV rollouts.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- UH46F5
Display
- Backlight
- Direct LED
- Brightness
- 700 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 46"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Connectivity
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB × 1
- Inputs
- HDMI, DisplayPort, DVI-D, USB
Physical & warranty
- Operating humidity
- 10% to 80% RH
- Power consumption
- 98 W (typical)
- Dimensions
- 1023.8 x 578.4 x 47.9 mm
- Weight
- 13.2 kg
- VESA mount
- 400 x 400 mm
- Bezel size
- 3.4 mm (T/L), 2.0 mm (R/B)
- Country of origin
- South Korea
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Samsung UH46F5 support wall mounting?
Yes. The display supports standard VESA 400 x 400mm mounting patterns. Smart-Boards provides the recommended WMN-46VD mount and can arrange delivery ready for local setup or on-site installation within the UAE.
What is the bezel width of this video wall display?
The bezel width is 3.4mm on the top and left edges, and 2.0mm on the right and bottom edges. This narrow design helps create a more cohesive image when multiple units are arranged in a grid configuration.
Can Smart-Boards deliver this model to KSA or Qatar?
Yes. Smart-Boards ships to GCC countries including Saudi Arabia and Qatar through established logistics partners. Delivery times depend on the country and order size, confirmed on your quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available if needed to assist with configuration and mounting.
What inputs are available for connecting signal sources?
The UH46F5 includes two HDMI inputs, one DisplayPort input, one DVI input, and a D-Sub RGB input. It also features audio in via stereo mini jack or HDMI/DVI, and RS232 for control systems.
What is the maximum brightness of the panel?
The typical brightness is 700 cd/m². This level ensures the display remains visible and legible in environments with moderate to high ambient lighting, such as busy office corridors or public squares.
How is pricing structured for this product?
Pricing is by quotation only. Smart-Boards offers quote-only pricing with options for education, government, bulk, and tender requirements. Contact the team for a tailored price based on your region and order volume.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
