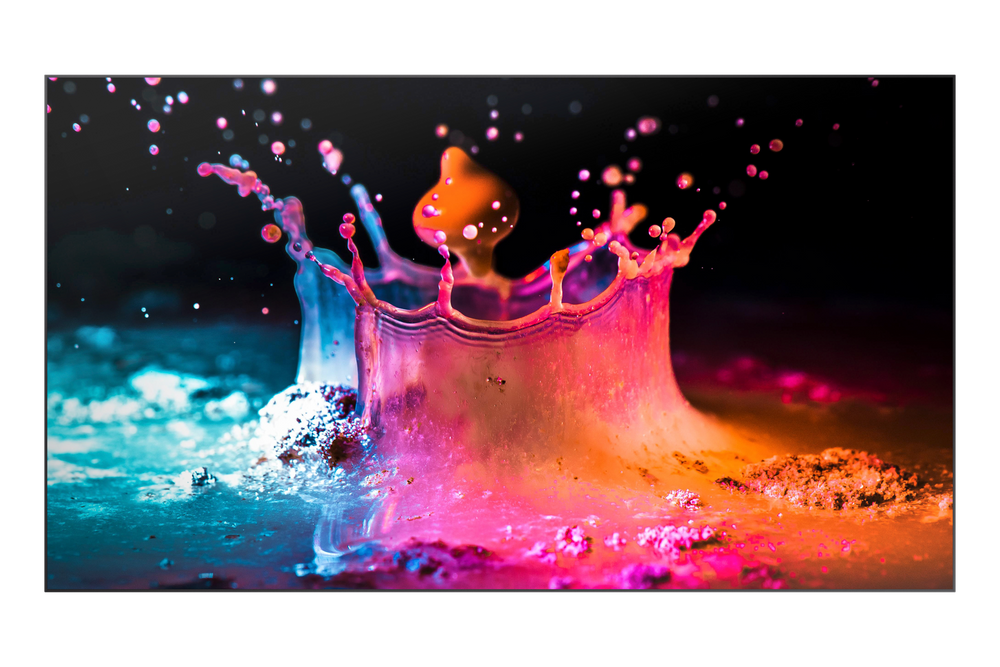

The Samsung UD55E-B (LH55UDEBLBB/UE) is a 55-inch D-LED DID video wall display designed for continuous operation. Featuring a 2.3mm ultra-narrow bezel and 1920 x 1080 resolution, it supports reliable digital signage and information dissemination. Smart-Boards supplies this model across the GCC and African regions.
This 55-inch panel utilizes D-LED technology to deliver 500 cd/m² brightness and a 4000:1 contrast ratio, ensuring clear visibility in various lighting conditions. The 178-degree viewing angles and 8-bit color depth provide accurate image reproduction for professional environments. Its robust construction includes a 96.6mm depth, facilitating easy integration into mounting structures while maintaining a sleek profile for public-facing displays.
Connectivity options include dual HDMI inputs, DisplayPort 1.2 for loop-out daisy-chaining, and standard audio I/O, allowing flexible signal routing for multi-screen setups. The display supports AC 100-240V power supply, adapting to regional electrical standards across the GCC and Africa. With a VESA mount pattern of 600 x 400 mm and a weight of 21.5 kg, it is engineered for secure installation in corporate, educational, or government facilities.
Key features
- Ultra-Narrow Bezel - The bezel width measures 2.3mm on the top and left edges, and 1.2mm on the right and bottom, creating a near-seamless visual surface for video walls.
- D-LED Panel Technology - Built with D-LED DID panels, this display offers high reliability and consistent performance for 24/7 operation in commercial environments.
- Flexible Connectivity - Inputs include HDMI, DisplayPort 1.2, and Analog D-SUB, with DP loop-out capability to simplify cabling in multi-display arrays.
- Standard Mounting - Compatible with the WMN-55VD mount and supports a VESA pattern of 600 x 400 mm for secure wall or stand installation.
- Power Efficiency - Consumes a maximum of 198W during operation and less than 0.5W in off or sleep modes, helping to reduce energy costs.
- Included Accessories - The package contains a Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, power cord, remote controller, and batteries.
Ideal for: Suitable for corporate lobbies, control rooms, and educational institutions across the GCC and Africa requiring reliable, high-brightness video wall solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- UD55E-B
Display
- Brightness
- 500 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Contrast ratio
- 4,000:1
- Response time
- 8 ms
Connectivity
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- Inputs
- HDMI, DisplayPort, DVI-D, USB, RS-232, RJ45
Camera & audio
- Audio out
- 3.5 mm audio out
Physical & warranty
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 176 W (typical)
- Dimensions
- 1213.5 x 684.3 x 96.6 mm
- Weight
- 21.5 kg
- VESA mount
- 600 x 400 mm
- Bezel size
- 2.3 mm (T/L), 1.2 mm (R/B)
- Country of origin
- South Korea
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum brightness of the Samsung UD55E-B?
The Samsung UD55E-B delivers a brightness level of 500 cd/m², which ensures the display remains visible and legible in well-lit indoor environments typical of offices and public spaces.
Which countries in the GCC and Africa does Smart-Boards deliver to?
Smart-Boards ships to GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations, through established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, Smart-Boards delivers the unit ready for local setup, providing remote guidance if needed to assist with the configuration process.
Can multiple UD55E-B units be daisy-chained?
Yes, the display features DisplayPort 1.2 loop-out, allowing you to connect multiple units in a series. This simplifies cabling and signal distribution in large video wall configurations.
What is the bezel width on all sides?
The bezel width is 2.3mm on the upper and left edges, and 1.2mm on the right and bottom edges. This asymmetrical design helps minimize visual disruption in multi-panel setups.
Does this display support 24/7 operation?
Yes, the D-LED DID panel is specifically designed for digital signage and video wall applications, supporting continuous operation in commercial environments without compromising image quality.
How is pricing determined for this product?
Pricing is provided by quotation only. Smart-Boards offers quote-only pricing with options for education, government, bulk orders, and tender requirements, ensuring competitive rates for your project.
