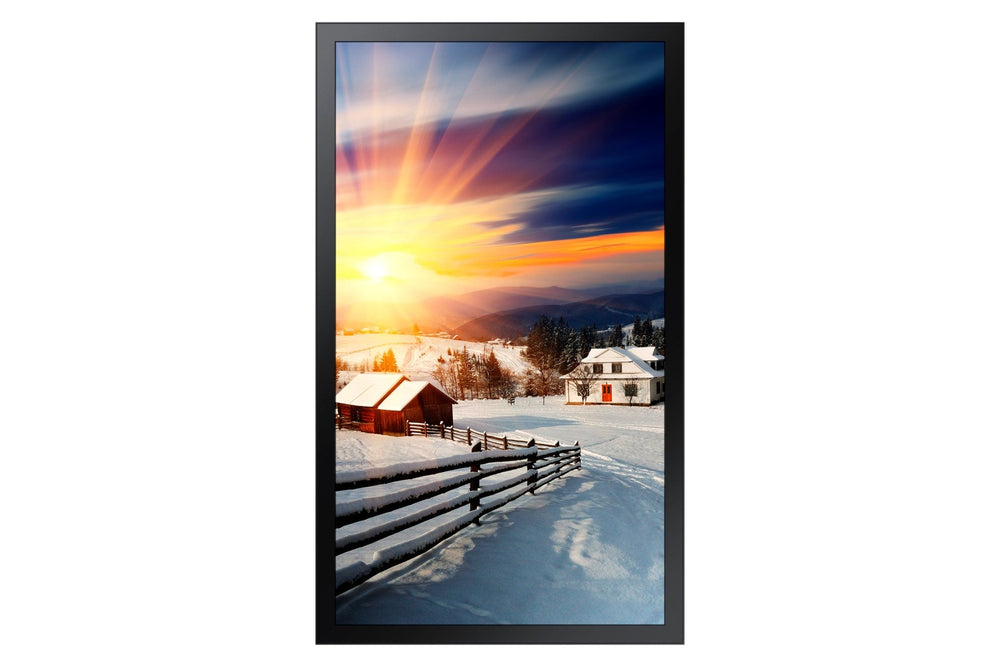

The Samsung OH75F (LH75OHFPLBC/UE) is a high-brightness 75-inch digital signage display designed for demanding commercial environments. Featuring 2,500 nits of brightness and HDBaseT connectivity, this unit ensures clear visibility in well-lit spaces. Smart-Boards supplies this model across the GCC and Africa with professional logistics and installation services in the UAE.
This 75-inch VA panel delivers Full HD 1920 x 1080 resolution with a native contrast ratio of 5,000:1 and a dynamic ratio of 10,000:1. The screen achieves 2,500 nits typical brightness, making it suitable for bright indoor or semi-outdoor settings. It includes protection glass to withstand heavy use and features 178° horizontal and vertical viewing angles. The display operates on 100–240 V AC power, consuming 1,400 W in on mode. Dimensions are 1774.8 x 1053.4 x 120 mm, with a weight of 142 kg.
Connectivity options include two HDMI inputs, HDBaseT via LAN, RS232 In, and RJ45 In for robust control integration. A USB port and audio output are also provided. The bezel size measures 59.8 mm, and the unit supports operating humidity from 10% to 80% non-condensing. Smart-Boards, as an authorised reseller, manages shipping to GCC and African countries through established logistics partners. We offer live or virtual demonstrations and quote-only pricing for education, government, and bulk orders. On-site installation is available within the UAE, while other regions receive delivery ready for local setup with remote guidance.
Key features
- High Brightness - Delivers 2,500 nits typical brightness for clear visibility in well-lit commercial spaces.
- Durable Panel - Features protection glass and a 5,000:1 native contrast ratio for reliable performance.
- Flexible Connectivity - Includes 2 HDMI ports, HDBaseT, RS232, and RJ45 for easy system integration.
- Control Integration - Supports RS232 and RJ45 inputs for centralized management in multi-display setups.
- Power Efficiency - Operates on 100–240 V AC with 0.5 W standby power in sleep mode.
Ideal for corporate lobbies, educational institutions, and government facilities across the GCC and Africa requiring durable, high-visibility digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- OH75F
- Product type
- High Brightness Digital Signage Display
- Key features
- 2,500 nits brightness, 10,000:1 dynamic contrast, protection glass, HDBaseT input, RS232 and RJ45 control, no daisy-chain videowall support
Display
- Brightness
- 2500 cd/m²
- Resolution
- Full HD
- Screen size
- 75"
- Surface protection
- Protection glass
- Viewing angle
- 178° horizontal / 178° vertical
- Colour gamut
- 70%
- Contrast ratio
- 5,000:1 (native); 10,000:1 (dynamic)
- Panel technology
- VA
- Response time
- 6 ms
Connectivity
- HDMI input
- 2
- USB ports
- Yes
- Inputs
- HDMI × 2, HDBaseT (LAN), RS232 In, RJ45 In
- Ports
- HDMI In × 2, HDBaseT In, RS232 In, RJ45 In, Audio Out × 1, USB
Physical & warranty
- Operating humidity
- 10% to 80%, non-condensing
- Power consumption
- 1,400 W (on mode)
- Standby power
- 0.5 W (sleep mode)
- Dimensions
- 1774.8 x 1053.4 x 120 mm
- Weight
- 142 kg
- Shipping dimensions
- 1946 x 1252 x 495 mm
- Shipping weight
- 188 kg
- Bezel size
- 59.8 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this display support daisy-chaining for videowalls?
No, the Samsung OH75F does not support daisy-chain videowall configurations. It relies on standard HDMI and HDBaseT inputs for individual display control and signal distribution.
What is the resolution of the 75-inch panel?
The display provides a Full HD resolution of 1920 x 1080 pixels. This ensures sharp text and image clarity for professional digital signage applications.
Can you deliver to countries outside the GCC?
Yes, we ship to GCC and African countries through established logistics partners. Delivery times depend on the country and order size, which we confirm on the quotation.
Is on-site installation available in Africa?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed.
What control interfaces are included?
The unit includes RS232 In and RJ45 In ports for network control. It also features two HDMI inputs and a HDBaseT LAN input for video signal transmission.
What is the viewing angle of this screen?
The panel offers a 178° horizontal and 178° vertical viewing angle. This wide angle ensures consistent image quality for viewers from different positions.
Does Smart-Boards provide warranty support?
Yes, we provide manufacturer warranty plus Smart-Boards after-sales support. We are an authorised reseller ensuring genuine parts and professional service across our supply region.
