Product overview

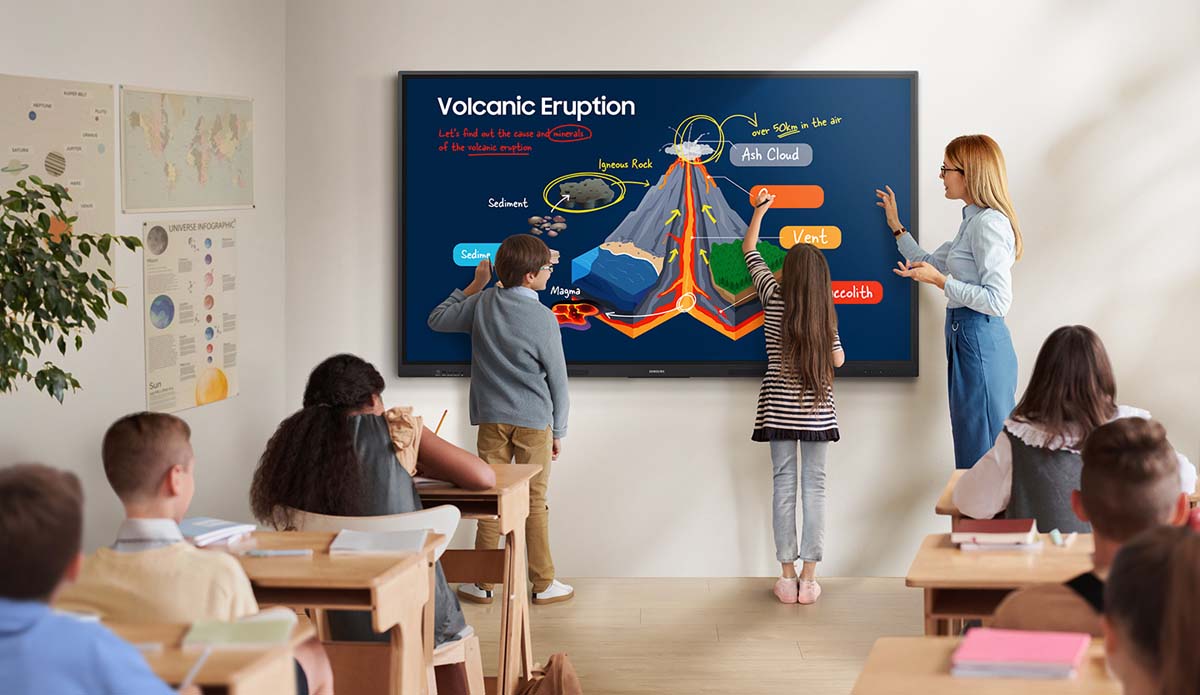

Samsung 86" – Interactive Display – WAF Series (Model: LH86WAFWLGCXZA). A projector-free, PC-free interactive display for teaching and team meetings.
The Samsung 86" – – WAF Series (Model: LH86WAFWLGCXZA) is an interactive display designed to keep every session engaging - a bright panel, smooth touch and integrated apps let presenters annotate, cast and video-call without extra hardware. Smart-Boards offers it across the UAE, wider GCC and Africa with quotation-based pricing, bulk and education options, and reliable delivery wherever you are based.
Key features
- 86" display at 400 cd/m² brightness in 4K UHD for sharp, readable content
- 40 Points Multi Touch, Infrared touch for smooth, natural writing and group work
- Built-in Android 14 on a A73 × 4 + A53 × 4 processor for apps, whiteboarding and casting
- Integrated audio (15W × 2) that fills the room
- Flexible connectivity: HDMI In × 2; USB 2.0 × 2, USB 3.0 × 2; USB C (Front) × 1
- Wireless ready (Yes) for cable-free sharing
Specifications
| Specification | Detail |
|---|---|
| Screen size | 86" |
| Resolution | 4K UHD |
| Panel & backlight | LED backlight (Direct) |
| Brightness | 400 cd/m² |
| Refresh rate | 60 Hz |
| Touch | 40 Points Multi Touch, Infrared |
| Operating system | Android 14 |
| Processor | A73 × 4 + A53 × 4 |
| Memory | 8 GB RAM, 64 GB storage |
| Audio | 15W × 2 |
| Connectivity | HDMI In × 2; USB 2.0 × 2, USB 3.0 × 2; USB C (Front) × 1 |
| Wireless | Yes |
Ideal for: boardrooms, classrooms, training rooms, lecture halls and government meeting spaces across the GCC and Africa
Delivery & logistics: Smart-Boards ships the Samsung 86" – – WAF Series (Model: LH86WAFWLGCXZA) to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; other countries receive delivery ready for local setup.
Frequently asked questions
1. What is the Samsung 86" – – WAF Series (Model: LH86WAFWLGCXZA)?
It is a 86" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at 4K UHD on a led backlight (direct), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 40 Points Multi Touch, Infrared, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Android 14 on board for whiteboarding, casting and apps, powered by a A73 × 4 + A53 × 4 processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (15W × 2) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Because of its size we recommend professional mounting - included within the UAE.
7. Which countries can you deliver to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
8. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
9. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the Samsung 86" – – WAF Series (Model: LH86WAFWLGCXZA) ready for your local team to set up, with remote guidance if needed.
10. What warranty do I get?
It is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Specifications
| Ifp accessories | Remote Controller, Touch Pen (2ea, Black), Warranty/QSG |
|---|---|
| Ifp ambient light sensor | Yes |
| Ifp audio in | Audio In × 1 |
| Ifp audio out | Audio Out × 1 |
| Ifp backlight | Direct |
| Ifp bluetooth | Yes |
| Ifp brightness | 400 cd/m² |
| Ifp cpu | A73 × 4 + A53 × 4 |
| Ifp ethernet rj45 | Gigabit LAN (RJ45) × 1 |
| Ifp hdmi input | HDMI In × 2 |
| Ifp hdmi output | HDMI Out × 1 |
| Ifp included cables | Power Cord, HDMI Cable, USB Cable |
| Ifp operating humidity | 10% to 90% RH |
| Ifp operating temprature | 0 °C - 40 °C |
| Ifp ops pc slot | Optional |
| Ifp os version | Android 14 |
| Ifp power consumption | < 262 W |
| Ifp power standby | 0.5 W |
| Ifp product dimensions | 1961.8 × 1163.9 × 87.7 mm |
| Ifp product weight | 65.5 kg |
| Ifp ram | 8 GB |
| Ifp refresh rate | 60 Hz |
| Ifp resolution | 4K UHD |
| Ifp screen size | 86" |
| Ifp serial port | RS232C × 1 |
| Ifp shipping dimensions | 2095 × 1265 × 185 mm |
| Ifp speaker output | 15W × 2 |
| Ifp speaker type | Built-in Speakers |
| Ifp storage | 64 GB |
| Ifp surface protection | Yes |
| Ifp touch points | 40 Points Multi Touch |
| Ifp touch response time | < 5 ms |
| Ifp touch technology | Infrared |
| Ifp touch usb ports | Touch Out × 2 (Front × 1; Rear × 1) |
| Ifp type c in | USB C (Front) × 1 |
| Ifp usb ports | USB 2.0 × 2, USB 3.0 × 2 |
| Ifp viewing angle | 178° (H) / 178° (V) |
| Ifp wall mount | 800 × 600 mm (VESA) |
