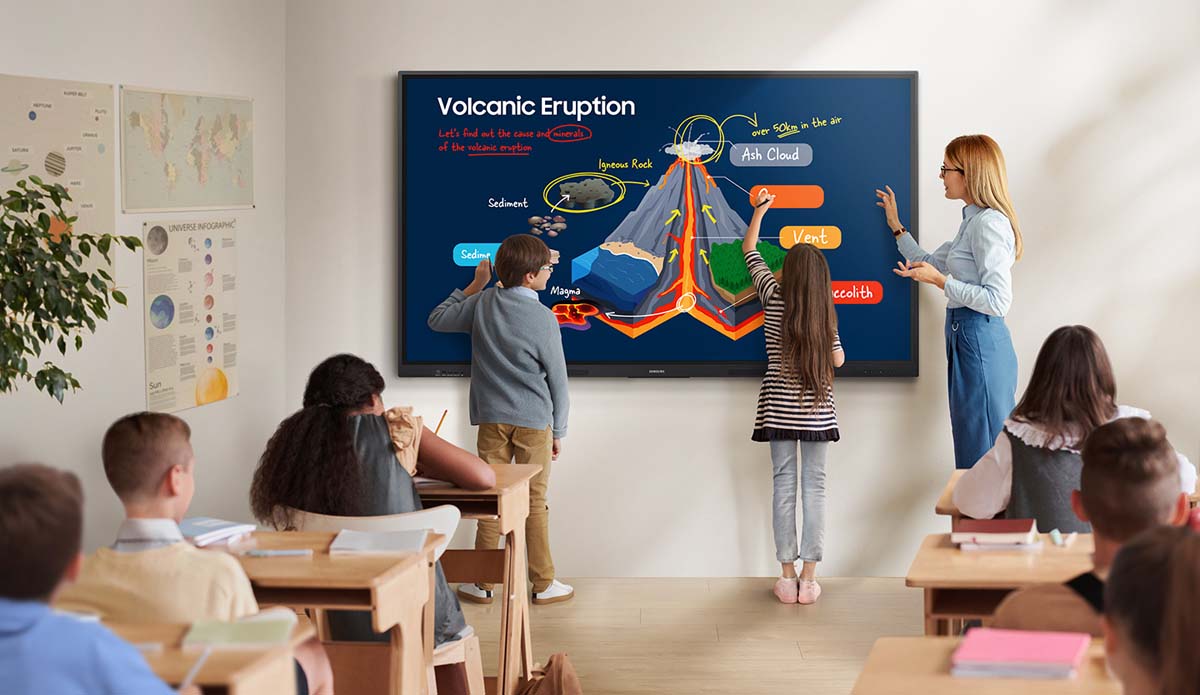

Samsung 75" – Interactive Display – WAF Series (Model: LH75WAFWLGCXZA). An all-in-one touchscreen that turns any large room into a collaborative workspace.
The Samsung 75" – – WAF Series (Model: LH75WAFWLGCXZA) brings a sharp 75" display, responsive multi-point touch, on-board Android and wireless sharing together in a single interactive flat panel. There is no separate projector or PC to manage - staff and students simply walk up, write and share. Smart-Boards supplies it to schools, universities, government bodies and enterprises across the GCC and Africa, backed by live demonstrations, procurement-ready quotations and low-cost delivery to your country.
Key features
- 75" display at 400 cd/m² brightness in 4K UHD for sharp, readable content
- 40 Points Multi Touch, Infrared touch for smooth, natural writing and group work
- Built-in Android 14 on a A73 × 4 + A53 × 4 processor for apps, whiteboarding and casting
- Integrated audio (15W × 2) that fills the room
- Flexible connectivity: HDMI In × 2; USB 2.0 × 2, USB 3.0 × 2; USB C (Front) × 1
- Wireless ready (Wi-Fi 5, 2.4G/5G, Yes) for cable-free sharing
| Accessories | Remote Controller, Touch Pen (2), Warranty/QSG |
|---|---|
| Audio in | Audio In × 1 |
| Audio out | Audio Out × 1 |
| Backlight | Direct |
| Bluetooth | Yes |
| Brightness | 400 cd/m² |
| Cpu | A73 × 4 + A53 × 4 |
| Ethernet rj45 | Gigabit LAN (RJ45) × 1 |
| Hdmi input | HDMI In × 2 |
| Hdmi output | HDMI Out × 1 |
| Included cables | Power Cord, HDMI Cable, USB Cable |
| Operating humidity | 10% to 90% RH |
| Operating temprature | 0 °C - 40 °C |
| Ops pc slot | Optional |
| Os version | Android 14 |
| Power consumption | < 215 W |
| Power standby | 0.5 W |
| Product dimensions | 1716.5 × 1031.8 × 86.9 mm |
| Product weight | 48.9 kg |
| Ram | 8 GB |
|---|---|
| Refresh rate | 60 Hz |
| Resolution | 4K UHD |
| Screen size | 75" |
| Serial port | RS232C In × 1 |
| Shipping dimensions | 1840 × 1125 × 185 mm |
| Speaker output | 15W × 2 |
| Speaker type | Built-in Speakers |
| Storage | 64 GB |
| Touch points | 40 Points Multi Touch |
| Touch response time | < 5 ms |
| Touch technology | Infrared |
| Touch usb ports | Touch Out × 2 (Front × 1; Rear × 1) |
| Type c in | USB C (Front) × 1 |
| Usb ports | USB 2.0 × 2, USB 3.0 × 2 |
| Viewing angle | 178° (H) / 178° (V) |
| Wall mount | 800 × 400 mm (VESA) |
| Wi fi | Wi-Fi 5, 2.4G/5G |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the Samsung 75" – – WAF Series (Model: LH75WAFWLGCXZA)?
It is a 75" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at 4K UHD on a led backlight (direct), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 40 Points Multi Touch, Infrared, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Android 14 on board for whiteboarding, casting and apps, powered by a A73 × 4 + A53 × 4 processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (15W × 2) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Because of its size we recommend professional mounting - included within the UAE.
7. Which countries can you deliver to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
8. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
9. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the Samsung 75" – – WAF Series (Model: LH75WAFWLGCXZA) ready for your local team to set up, with remote guidance if needed.
10. What warranty do I get?
It is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
