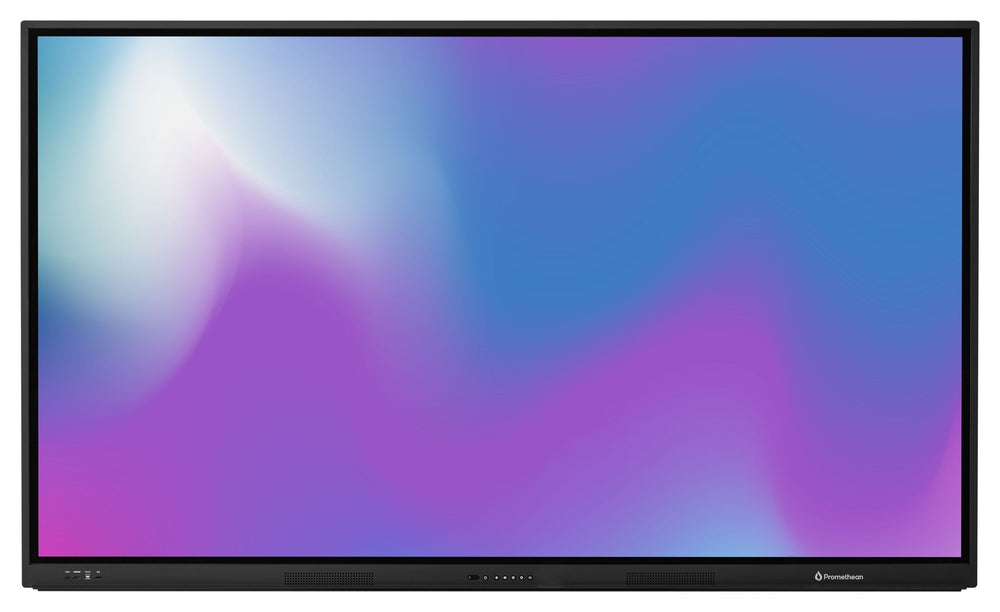

The Promethean ActivPanel LX 75" (APLX-75) is a 4K UHD interactive flat panel with 20-point multi-touch and no built-in OS. Designed for secure, flexible deployment, it supports Windows, Android, or Chrome OS. Smart-Boards supplies this model across the GCC and Africa with expert logistics and support.
This 75-inch TFT LCD panel delivers 3840 x 2160 resolution at 60 Hz with 350 nits brightness and 10-bit color depth. The surface features heat-tempered anti-glare glass for durability. With 20-point touch accuracy of 1 mm, it supports simultaneous input from multiple users. The design prioritizes security and adaptability, allowing institutions to integrate their preferred operating system for future-proof interoperability across diverse educational and corporate environments.
Connectivity includes three HDMI 2.0 ports, VGA, Ethernet, and USB-C with 15 W power delivery. The panel weighs 50 kg and measures 1716 x 1033 x 110 mm, fitting standard VESA 800 x 400 mm mounts. Built-in dual 15 W speakers provide audio output. Smart-Boards acts as an authorised reseller, offering tailored quotation pricing for bulk orders. We ensure reliable delivery and remote setup guidance for international clients.
Key features
- 4K UHD Display - Delivers 3840 x 2160 resolution with 10-bit color depth and 350 nits brightness for clear visuals.
- 20-Point Touch - Supports simultaneous 20-point multi-touch with 1 mm accuracy for collaborative interaction.
- OS Flexibility - No built-in OS; choose Windows, Android EDLA, or Chrome OS for secure, familiar operation.
- Robust Connectivity - Includes 3x HDMI 2.0, VGA, RJ45 LAN with Wake-on-LAN, and USB-C with 15 W power delivery.
- Durable Surface - Features heat-tempered anti-glare glass with 8H hardness and 10 ms touch response time.
Ideal for: Classrooms, boardrooms, and training centers in the GCC and Africa requiring secure, flexible interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- APLX-75
- Product type
- Interactive Flat Panel
- Key features
- No built-in OS, 4K UHD, 20-point touch, 350 nits, two pens, ActivInspire Personal, Wake-on-LAN, ENERGY STAR certified
- Compatibility
- Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS
Display
- Brightness
- 350 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- 8H (pencil), 7 (Mohs), heat-tempered, anti-glare glass
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1 dynamic, 1,200:1 static
- Panel technology
- TFT LCD (direct LED backlight)
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 20-point multi-touch
- Touch response time
- 10 ms
System
- Operating system
- Android
Connectivity
- Ethernet (RJ45)
- 10/100/1000 LAN in and out (RJ45), Wake-on-LAN
- HDMI input
- HDMI 2.0 × 3 (2 rear, 1 front)
- USB-C
- USB-C 2.0 × 1 (front, 15 W Power Delivery)
- USB ports
- USB-A 2.0 × 3 (1 front, 2 rear), USB-B 2.0 touch × 2 (1 front, 1 rear)
- VGA input
- VGA × 1
Camera & audio
- Audio in
- 3.5 mm audio in
- Speaker output
- 2 x 15 W (peak)
Physical & warranty
- In the box
- ActivPanel LX panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 2 pens, antistatic bag, 4 VESA mount screws (M6), mini PC bracket
- Operating temperature
- 0 to 40 °C
- Power consumption
- 132 W (typical)
- Dimensions
- 1716 x 1033 x 110 mm
- Weight
- 50 kg
- VESA mount
- 800 x 400 mm
- Input voltage
- 100–240 V AC
- Certifications
- CE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What operating systems does the APLX-75 support?
The ActivPanel LX has no built-in OS. It supports Windows 7-11, Mac OS, Linux Ubuntu 20.04 LTS, and Chrome OS. For Android, it supports EDLA-certified systems, allowing institutions to choose the most suitable platform for their security and workflow needs.
Which countries receive delivery?
Yes, Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations. Delivery costs are optimized through established logistics partners, and timelines are confirmed on the quotation based on order size and destination.
Is on-site installation included outside the UAE?
No, on-site installation is only provided within the UAE. For other countries, the unit is delivered ready for local setup. Remote guidance is available to assist local teams with mounting and initial configuration to ensure successful deployment.
What are the power and weight specifications?
The panel weighs 50 kg and consumes 132 W typically. It operates on 100–240 V AC input. The dimensions are 1716 x 1033 x 110 mm, and it uses a VESA 800 x 400 mm mount pattern for flexible wall or stand mounting.
Does it include a remote and pens?
Yes, the package includes a remote control with batteries and two pens. It also provides a 3 m HDMI cable, 3 m USB cable, 3 m power cable, and a 2 m USB-C cable for immediate connectivity and operation.
What connectivity ports are available?
It features three HDMI 2.0 inputs, one VGA input, RJ45 Ethernet, one USB-C port, three USB-A ports, and two USB-B touch ports. This variety supports multiple device connections for versatile classroom or meeting room setups.
How does Smart-Boards support GCC and African buyers?
We are an authorised reseller offering quote-only pricing with options for education, government, and bulk tenders. We provide live or virtual demonstrations and manage logistics to ensure cost-effective delivery and reliable after-sales support across the region.
