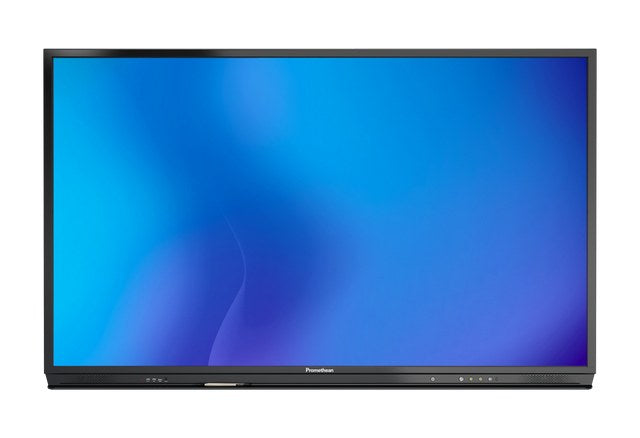

The discontinued Promethean ActivPanel Elements AP7-U86 is an 86-inch interactive flat panel designed for collaborative environments. This 4K UHD display features 15-point multi-touch and built-in Android 8, supplied by Smart-Boards for schools and offices across the GCC and Africa.
This 86-inch LCD display delivers 4K UHD resolution (3840 x 2160) with 400 nits brightness and a 4,000:1 contrast ratio. The fanless design ensures quiet operation in classrooms or meeting rooms. It includes a built-in Android 8 operating system with 2 GB RAM and 16 GB storage, alongside a Wi-Fi module and an OPS slot for flexible computing options.
Touch interaction is handled by Vellum Writing Technology, supporting 15-point multi-touch with 1 mm accuracy. The unit weighs 84 kg and fits standard VESA 700 x 400 mm mounts. It connects via HDMI and USB, with RS-232 for system control. Smart-Boards acts as an authorised reseller, providing documentation and support for buyers in the region.
Key features
- Visual Clarity - The 86-inch screen provides 4K UHD resolution and 178-degree viewing angles for clear visibility in large spaces.
- Multi-Touch Input - Vellum touch technology enables precise 15-point multi-touch interaction with 1 mm accuracy for collaborative work.
- Integrated Android OS - Built-in Android 8 (Oreo) with 2 GB RAM and 16 GB storage offers immediate access to apps without external PCs.
- Connectivity Options - Includes an OPS slot, Wi-Fi module, and RS-232 control for flexible integration into existing AV infrastructure.
- Quiet Operation - The fanless design ensures silent performance, which is essential for lecture halls and quiet meeting environments.
Ideal for: This interactive flat panel suits schools, universities, and corporate training centres across the GCC and Africa requiring large-format, Android-based displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- AP7-U86
- Product type
- Interactive Flat Panel
- Key features
- Vellum touch, 15-point touch, Android OS, Wi-Fi module, OPS slot, fanless design, RS-232 control
Display
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 15-point multi-touch
- Touch technology
- Vellum Writing Technology
System
- Operating system
- Android 8
- RAM
- 2 GB
- Storage
- 16 GB
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- In the box
- ActivPanel Nickel, 3 m HDMI cable, 3 m USB cable, remote control, pen, VESA mount screws, mini PC bracket
- Operating humidity
- 20% to 80% non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 450 W (maximum)
- Dimensions
- 2018 x 1236 x 113 mm
- Weight
- 84 kg (net)
- VESA mount
- 700 x 400 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Promethean ActivPanel AP7-U86 still available?
The Promethean ActivPanel Elements AP7-U86 is a discontinued model. Smart-Boards can confirm current availability or recommend the latest successor model for your specific project requirements.
Can this panel be delivered to countries outside the UAE?
Yes, Smart-Boards ships to GCC countries (KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners, ensuring cost-effective delivery for regional orders.
Is on-site installation included for international orders?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available from the Smart-Boards team to assist with configuration.
What is the operating temperature range?
The panel operates between 0 to 40 °C with 20% to 80% non-condensing humidity, making it suitable for standard indoor environments in the GCC and Africa.
Does the box include a wall mount?
The package includes VESA mount screws for standard 700 x 400 mm mounts, a 3 m HDMI cable, a 3 m USB cable, a remote control, and a pen for immediate use.
What is the power consumption of the 86-inch model?
The maximum power consumption is 450 W. It accepts input voltage from 100–240 V AC, allowing it to operate on standard power supplies across different regions without adapters.
Does the Android OS support third-party applications?
Yes, the built-in Android 8 operating system allows access to the Google Play Store and the Unified Menu, enabling users to manage apps, tools, and files directly on the panel.
