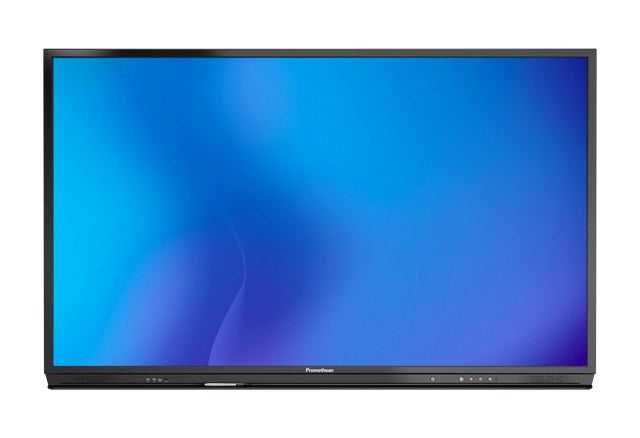

The Promethean ActivPanel Elements AP7-U75 is a 75-inch 4K UHD interactive flat panel designed for collaborative environments. Featuring 15-point Vellum touch and a fanless design, it offers reliable performance for educational and corporate settings. Smart-Boards supplies this model across the GCC and Africa.
This 75-inch LCD interactive flat panel delivers 3840 x 2160 resolution with 350 nits brightness and a 4,000:1 contrast ratio. It uses Vellum Writing Technology for precise 1 mm touch accuracy across 15 points. The device runs Android 8 Oreo with 2 GB RAM and 16 GB storage, supporting built-in Wi-Fi and an OPS slot for optional PC integration.
The fanless design ensures quiet operation within 0 to 40 °C operating temperatures. It includes dual 15 W speakers, RS-232 control, and accepts 100–240 V AC power. The unit weighs 64 kg with dimensions of 1767 x 1093 x 106 mm and supports VESA 600 x 400 mm mounting. As a discontinued model, availability should be confirmed via quotation.
Key features
- Precision Touch Interface - 15-point multi-touch with 1 mm accuracy using Vellum Writing Technology for natural writing and drawing.
- 4K UHD Display - 75-inch LCD panel with 3840 x 2160 resolution, 350 nits brightness, and 178° viewing angles.
- Built-in Android System - Runs Android 8 Oreo with 2 GB RAM and 16 GB storage, featuring a Unified Menu for app access.
- Fanless Quiet Operation - Passive cooling design eliminates fan noise, suitable for quiet classrooms and meeting rooms.
- Control & Connectivity - Includes RS-232 control port, Wi-Fi module, and OPS slot for flexible integration with existing systems.
Ideal for: Interactive teaching, corporate collaboration, and digital signage in schools and offices across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- AP7-U75
- Product type
- Interactive Flat Panel
- Key features
- Vellum touch, 15-point touch, Android OS, Wi-Fi module, OPS slot, fanless design, RS-232 control
Display
- Brightness
- 350 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 15-point multi-touch
- Touch technology
- Vellum Writing Technology
System
- Operating system
- Android 8
- RAM
- 2 GB
- Storage
- 16 GB
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- In the box
- ActivPanel Nickel, 3 m HDMI cable, 3 m USB cable, remote control, pen, VESA mount screws, mini PC bracket
- Operating humidity
- 20% to 80% non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 380 W (maximum)
- Dimensions
- 1767 x 1093 x 106 mm
- Weight
- 64 kg (net)
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product still available for purchase?
The AP7-U75 is discontinued. Smart-Boards can confirm current availability or recommend the current successor model. Contact our sales team for stock status and alternatives suitable for your region.
Which countries can be delivered to?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations. Delivery costs are minimized through established logistics partners. Final delivery times depend on the destination country and order size.
Is on-site installation included?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance is provided where needed to assist with configuration and mounting.
What is the touch technology used?
It uses Vellum Writing Technology, supporting 15-point multi-touch with 1 mm accuracy. This allows multiple users to interact simultaneously with high precision for writing and navigation.
Does it support wall mounting?
Yes, it supports VESA 600 x 400 mm mounting. The package includes VESA mount screws and a mini PC bracket. Ensure the wall structure supports the 64 kg weight for safe installation.
What is the operating voltage range?
The unit accepts 100–240 V AC input, making it compatible with standard power outlets across different regions. Maximum power consumption is 380 W. No voltage converter is typically required for GCC or African grids.
What is included in the box?
The package includes the ActivPanel Nickel, 3 m HDMI cable, 3 m USB cable, remote control, pen, VESA mount screws, and a mini PC bracket. Additional accessories like mounting hardware may be purchased separately.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
