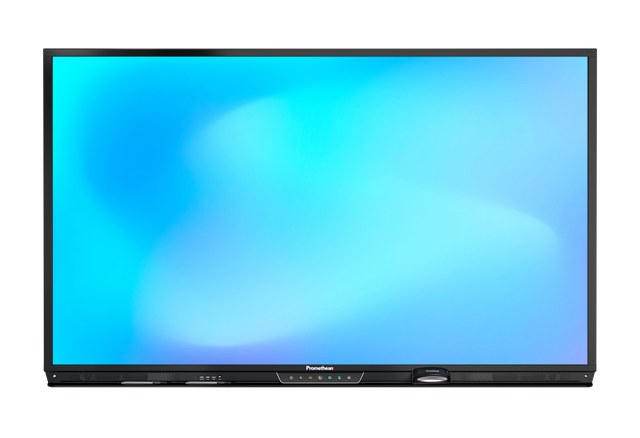

The Promethean ActivPanel Elements AP7-B70 is a discontinued 70-inch 4K UHD interactive flat panel designed for collaborative environments. Supplying across the GCC and Africa, Smart-Boards offers available stock or successor recommendations. Contact our Dubai office for quote-only pricing and regional logistics support.
This Promethean ActivPanel Elements model features a 70-inch LCD screen with 3840 x 2160 resolution and 380 nits brightness. It utilises Vellum Writing Technology for 20-point multi-touch with 1 mm accuracy. The built-in Android 8 operating system includes 4 GB RAM and 64 GB storage, alongside an OPS slot for optional PC integration. The fanless design ensures quiet operation in classrooms and boardrooms across the GCC and Africa.
Discontinued by the manufacturer, this unit is no longer in active production. Smart-Boards, an authorised reseller, can confirm current availability or recommend the latest Promethean ActivPanel successor. We supply interactive flat panels to schools, universities, and ministries in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African nations. Our team provides live or virtual demonstrations before purchase to ensure suitability for multi-site rollouts.
Key features
- Vellum Touch Interface - Supports 20 simultaneous touch points with 1 mm accuracy using Vellum Writing Technology.
- 4K UHD Display - Delivers 3840 x 2160 resolution on a 70-inch LCD panel with 380 nits brightness and 4,000:1 contrast.
- Android Operating System - Runs Android 8 (Oreo) with 4 GB RAM, 64 GB storage, and Bluetooth 4.2 connectivity.
- Unified Menu Access - Provides always-accessible Unified Menu for easy navigation between apps, tools, and the Locker.
- Quiet Fanless Design - Operates silently without cooling fans, suitable for classrooms and meeting rooms with 0 to 40 °C operating temperature.
- Included Accessories - Comes with 3 m HDMI and USB cables, remote control, four pens, block eraser, and VESA mount screws.
Ideal for educational institutions and corporate boardrooms in the GCC and Africa requiring large-format collaborative displays with built-in Android capabilities.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- AP7-B70
- Product type
- Interactive Flat Panel
- Key features
- Vellum touch, 20 touch points, Android OS, Wi-Fi module, OPS slot, fanless design, RS-232 control
Display
- Brightness
- 380 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 70"
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 20-point multi-touch
- Touch technology
- Vellum Writing Technology
System
- Operating system
- Android 8
- RAM
- 4 GB
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 4.2
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- In the box
- ActivPanel Titanium, 3 m HDMI cable, 3 m USB cable, remote control, 4 pens, block eraser, VESA mount screws, mini PC bracket
- Operating humidity
- 20% to 80% non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 215 W (maximum)
- Dimensions
- 1668 x 1033 x 95 mm
- Weight
- 53 kg (net)
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Promethean ActivPanel Elements AP7-B70 still in production?
No, the AP7-B70 is discontinued. Smart-Boards can check current stock levels or recommend the latest Promethean ActivPanel successor model suitable for your requirements in the GCC or Africa.
Which countries does Smart-Boards deliver to?
We ship to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners. Delivery times depend on the country and order size, confirmed on your quotation.
Is on-site installation included for orders outside the UAE?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed by our technical team.
What is the power consumption of this 70-inch panel?
The maximum power consumption is 215 W. It supports an input voltage of 100–240 V AC, making it compatible with standard power supplies across the GCC and African regions.
Does this model include a built-in computer?
No, it includes an OPS slot for an optional mini PC. The panel itself runs Android 8 with 4 GB RAM and 64 GB storage for direct app usage without external hardware.
How many touch points does the Vellum technology support?
The Vellum Writing Technology supports 20 simultaneous touch points with 1 mm accuracy, allowing multiple users to interact with content on the 70-inch screen simultaneously.
What accessories are included in the box?
The package includes the ActivPanel Titanium, 3 m HDMI cable, 3 m USB cable, remote control, four pens, a block eraser, VESA mount screws, and a mini PC bracket.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
