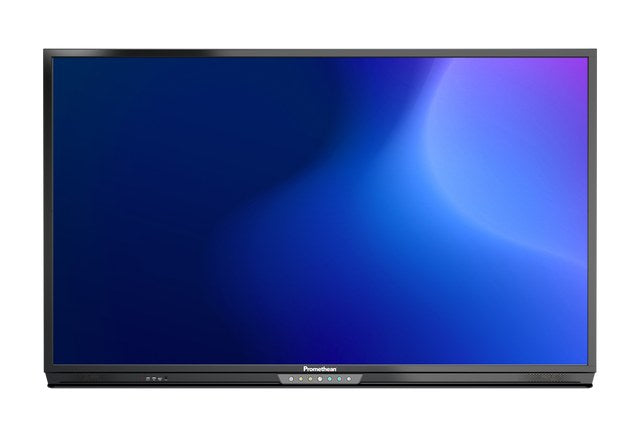

The Promethean ActivPanel Cobalt 86-inch is a discontinued interactive flat panel featuring 4K UHD resolution and 20-point Vellum touch technology. Smart-Boards supplies this Android 8 device across the GCC and Africa for schools and enterprises, offering quote-based pricing and logistics support.
This 86-inch LCD interactive flat panel delivers 4K UHD clarity with a brightness of 400 nits and a 4,000:1 contrast ratio. Powered by Android 8, it includes 3 GB of RAM and 32 GB of storage for smooth app performance. The unified menu provides instant access to the Locker, organizing apps and files for efficient classroom or boardroom use.
Touch interaction is handled by Vellum Writing Technology, supporting up to 20 simultaneous touch points with 1 mm accuracy. The unit features a fanless design for quiet operation and includes an OPS slot for optional mini PC integration. Connectivity is supported via HDMI and USB, while 2 x 15 W speakers provide audio output. The panel weighs 84 kg and measures 2018 x 1236 x 113 mm.
Key features
- 4K Interactive Display - An 86-inch LCD screen with 3840 x 2160 resolution, 400 nits brightness, and 20-point multi-touch capability for precise input.
- Android Operating System - Built-in Android 8 (Oreo) with 3 GB RAM and 32 GB storage, featuring a unified menu and Locker for app and file management.
- Vellum Touch Technology - Supports 20 simultaneous touch points with 1 mm accuracy, enabling collaborative writing and navigation without gloves or special tools.
- Fanless Quiet Design - Operates silently with no fan, suitable for quiet environments, while maintaining operating temperatures between 0 to 40 °C.
- Flexible Mounting Options - Compatible with standard VESA 700 x 400 mm mounts and includes an OPS slot for adding a mini PC, with included VESA screws.
- Included Accessories - Ships with a 3 m HDMI cable, 3 m USB cable, remote control, two pens, and VESA mount screws for immediate setup.
Ideal for: Suitable for schools, universities, and corporate meeting rooms across the GCC and Africa requiring large-format collaboration tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- AP7-A86
- Product type
- Interactive Flat Panel
- Key features
- Vellum touch, 20 touch points, Android OS, Wi-Fi module, OPS slot, fanless design
Display
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch accuracy
- 1 mm
- Touch points
- 20-point multi-touch
- Touch technology
- Vellum Writing Technology
System
- Operating system
- Android 8
- RAM
- 3 GB
- Storage
- 32 GB
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- In the box
- ActivPanel Cobalt, 3 m HDMI cable, 3 m USB cable, remote control, 2 pens, VESA mount screws, mini PC bracket
- Operating humidity
- 20% to 80% non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 450 W (maximum)
- Dimensions
- 2018 x 1236 x 113 mm
- Weight
- 84 kg (net)
- VESA mount
- 700 x 400 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Promethean ActivPanel Cobalt 86" currently in production?
No, this model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model from the ActivPanel Elements series.
Which countries do you ship this product to?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners at competitive rates.
Do you provide on-site installation in the UAE?
Yes, Smart-Boards offers on-site installation services within the UAE. For other regions, units are delivered ready for local setup with remote guidance.
What is the touch technology used in this panel?
It uses Vellum Writing Technology, which supports 20-point multi-touch with 1 mm accuracy, allowing for precise and responsive interaction.
Can I add a computer to this interactive flat panel?
Yes, the panel includes an OPS slot, allowing you to insert a compatible mini PC for extended Windows or Linux functionality alongside Android.
What is the power consumption of this model?
The maximum power consumption is 450 W. It operates on an input voltage of 100–240 V AC, making it suitable for various regional power standards.
What is included in the box for this model?
The package contains the ActivPanel, 3 m HDMI and USB cables, a remote control, two pens, and VESA mount screws for wall installation.
