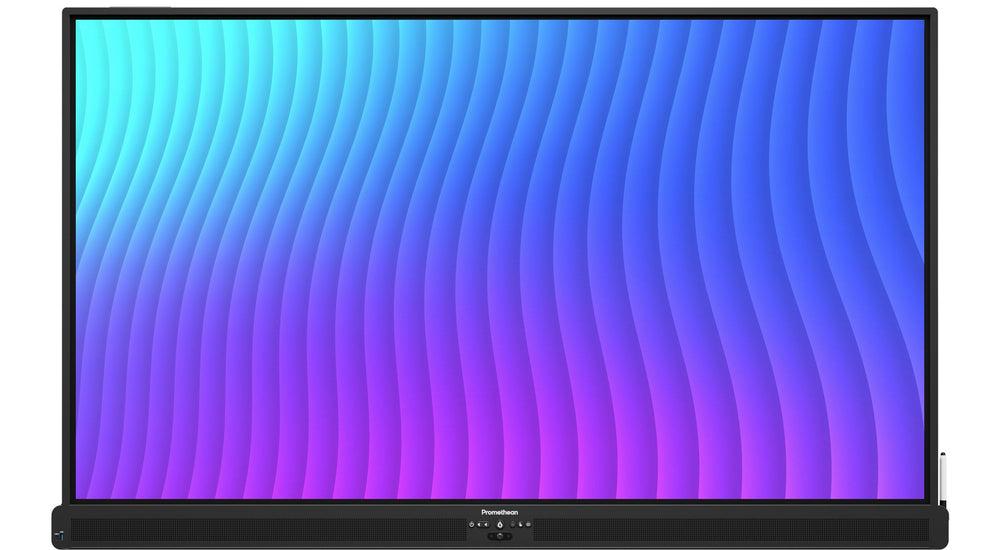

The Promethean ActivPanel 10 (AP10-A65) is a 65-inch interactive flat panel designed for collaborative environments across the GCC and Africa. Featuring 4K UHD resolution, 40-point Vellum touch, and a secure, fanless design, it supports flexible OPS integration. Smart-Boards provides quote-only pricing, logistics, and verified delivery to UAE, KSA, Qatar, and other African nations.
This 65-inch LCD display delivers 3840 x 2160 resolution with 520 nits brightness and a 1,200:1 static contrast ratio. The panel uses Vellum writing technology to support 40 simultaneous touch points with 3 ms response time and less than 1 mm accuracy. A fanless design ensures quiet operation, while dual 20 W speakers and an OPS slot allow for flexible audio and computing integration without built-in operating systems.
Connectivity includes two HDMI 2.1 inputs, one DisplayPort 1.4, and a 100 W USB-C port for power and data. The unit weighs 37.8 kg and fits standard 600 x 400 mm VESA mounts. Smart-Boards supplies this model to educational and government institutions in the GCC and Africa, offering live demonstrations, installation in the UAE, and remote guidance for regional setup.
Key features
- Vellum Touch Tech - Supports 40-point touch with palm rejection and pen differentiation for precise interaction.
- 4K UHD Display - 65-inch LCD screen with 3840 x 2160 resolution and 178° viewing angles for clear visibility.
- Flexible Connectivity - Includes HDMI 2.1, DisplayPort 1.4, USB-C PD, and dual RJ45 LAN ports for stable networking.
- OPS Slot Integration - Features one OPS slot to accommodate Windows, macOS, or ChromeOS computing modules securely.
- Fanless Quiet Design - Operates without fans to reduce noise, ensuring a calm environment for meetings and classrooms.
Ideal for classrooms, boardrooms, and training centers in the GCC and Africa requiring reliable, high-precision interactive displays with flexible computing options.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- AP10-A65
- Product type
- Interactive Flat Panel
- Key features
- Vellum writing, 40 touch points, Palm rejection, Pen and touch differentiation, OPS slot, Dual 20 W speakers, Fanless design, ENERGY STAR
- Compatibility
- Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS, Android 14
Display
- Backlight
- Direct LED
- Brightness
- 520 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1 dynamic, 1,200:1 static
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch accuracy
- <1 mm
- Touch points
- 40-point touch
- Touch resolution
- 32768 x 32768 px
- Touch response time
- 3 ms
- Touch technology
- Vellum writing technology
System
- OPS slot
- 1 OPS slot
- Operating system
- None built in
Connectivity
- Ports
- HDMI In × 2 (2.1), DisplayPort × 1 (1.4), USB-C × 1 (100 W PD), USB-A × 4 (3.2 Gen 1), USB Touch × 3 (3.0), HDMI Out × 1 (2.0), RJ45 LAN × 2, RS-232 × 1
Camera & audio
- Speaker output
- 2 × 20 W
Physical & warranty
- Operating humidity
- 20% to 80% non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 122 W (maximum, ENERGY STAR reported)
- Standby power
- ≤ 0.5 W
- Dimensions
- 1484 x 931 x 107 mm
- Weight
- 37.8 kg
- Shipping dimensions
- 1640 x 1030 x 185 mm
- VESA mount
- 600 x 400 mm
- Shipping weight
- 46.6 kg
- Input voltage
- 100–240 V AC
- Certifications
- CE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR, TAA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can this product be delivered to?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times and costs are confirmed on the quotation based on the specific destination and order size.
Do you provide installation services outside the UAE?
On-site installation is available only within the UAE. For other countries, the product is delivered ready for local setup with remote guidance provided by the Smart-Boards team to ensure correct configuration and mounting.
What are the power requirements for this panel?
The unit accepts 100–240 V AC input, making it suitable for global voltage standards. Maximum power consumption is 122 W, with standby power at ≤ 0.5 W, meeting ENERGY STAR efficiency standards.
Does the ActivPanel 10 include an operating system?
No, the panel has no built-in operating system. It is secure by design and includes one OPS slot for inserting compatible computing modules such as the Promethean Chromebox, OPS-A, or OPS-M.
What warranty and after-sales support is included?
The product comes with the manufacturer's warranty plus Smart-Boards after-sales support. We offer live or virtual demonstrations before purchase and provide quote-only pricing with options for education, government, and bulk tender contracts.
What is the touch resolution and accuracy?
The Vellum writing technology offers a touch resolution of 32768 x 32768 px with an accuracy of less than 1 mm. It supports 40 simultaneous touch points with a 3 ms response time for smooth interaction.
Is this model suitable for multi-site deployments?
Yes, the dual RJ45 LAN ports and RS-232 interface support network management and control across multiple locations. Smart-Boards coordinates logistics and documentation for multi-site rollouts across the GCC and Africa.
