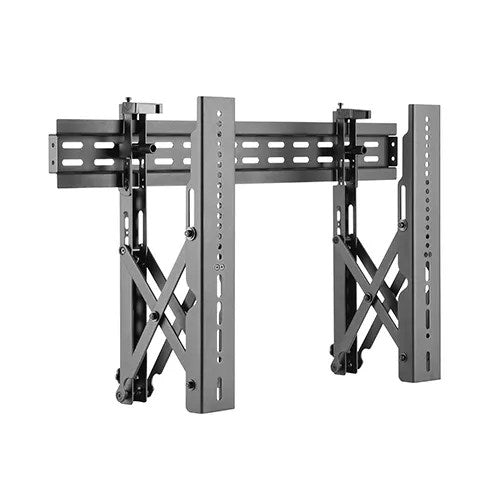

VSYS VSVW02-46T Push-Pull Video Wall Mount for 37"–70" Displays, 45 kg. A pop-out bracket for arrays that sit in public view and still need servicing.
In a video wall the panels sit shoulder to shoulder with no gap to reach through, so the only way to get to a loose HDMI lead or a power brick is to bring the screen forward. The VSYS VSVW02-46T does that with a press: the panel pops 215 mm off the wall, the back is fully accessible, and a push returns it to a 68 mm retracted profile that keeps the array flush. It carries 37" to 70" screens up to 45 kg. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
Alignment is the other half of the job. Lateral shift brackets slide each panel left or right so the bezel gaps stay even down a long run, and a levelling adjustment squares the screen once the plate is fixed. Toolless tilt of plus 3 to minus 3 degrees trims the face angle across the array. An anti-theft locking hole takes a padlock or security fitting, which matters when the wall is in a mall concourse or an unstaffed lobby. The brackets are 2 mm to 2.5 mm cold-rolled steel, powder-coated black and strength tested to four times the rated load.
Key features
- Press-to-release pop-out extends the panel 215 mm for full rear access, then locks back to 68 mm retracted
- Anti-theft locking hole accepts a padlock or security fitting - built for public-facing walls rather than back-office rooms
- Lateral shift brackets slide each screen sideways so bezel gaps stay consistent across a multi-panel array
- Levelling adjustment squares the display after the wall plate is already fixed
- Toolless tilt of plus 3 to minus 3 degrees trims the face angle without a screwdriver
- 45 kg rating on 2 mm to 2.5 mm cold-rolled steel, strength tested to four times that load
- 37" to 70" coverage with VESA from 200x200 mm to 600x400 mm - one part number across a mixed-size array
- 68 mm retracted depth keeps the finished wall shallow enough for a corridor or concourse position
- Powder-coated black finish disappears behind the panels instead of catching the eye between bezels
- Ships with the wall plate, pop-out bracket arms, hardware kit, anti-theft lock fitting and printed instructions
| Alignment | Lateral shift brackets plus levelling adjustment |
|---|---|
| Brand | VSYS |
| Colour | Black |
| Display compatibility | 37 inch to 70 inch flat panels and signage displays |
| Extension | Push-pull pop-out, 215 mm of travel |
| In the box | Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed installation instructions |
| Material | 2 mm to 2.5 mm cold-rolled steel, powder coated |
| Max load | 45 kg (99 lbs) |
| Mounting type | Wall mount, push-pull pop-out video wall bracket, one per panel |
|---|---|
| Security | Anti-theft locking hole, lock fitting supplied |
| Testing | Strength tested to 4 times rated load |
| Tilt range | Plus 3 to minus 3 degrees, toolless |
| Vesa pattern | 200x200 mm to 600x400 mm |
| Wall distance | 68 mm retracted, 215 mm extended |
| Model | VSVW02-46T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VSVW02-46T?
It is a push-pull video wall bracket for a single 37" to 70" panel up to 45 kg. Press the screen and it pops out 215 mm for rear access; push it back and it locks at 68 mm from the wall. You use one per panel in an array.
2. Is it compatible with my display?
Yes - if the panel is 37" to 70", weighs 45 kg or less and has a VESA pattern between 200x200 mm and 600x400 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Why does a video wall need a pop-out mount at all?
Because the panels touch. There is no gap to put a hand through, so a fixed bracket means dismounting a screen every time a cable, a media player or a power supply needs attention. The pop-out turns that into a two-second press.
4. How do I keep the panels aligned with each other?
Lateral shift brackets move each screen left or right after it is hung, and the levelling adjustment squares it vertically. That is how you get even bezel gaps across a 2x2 or a long signage run without needing the wall fixings to be perfect.
5. Is it secure enough for a public location?
It has an anti-theft locking hole that takes a padlock or a security fitting, so the panel cannot simply be popped out and lifted off. That is the reason to choose this model for a mall concourse, an airport or an unstaffed lobby rather than a locked control room.
6. Do you ship the VSYS VSVW02-46T across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VSVW02-46T?
Pricing is on request, and video wall projects are usually quoted per panel. Send a quote request from the product page or email info@procure.ae with your array size and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the array. Outside the UAE we ship it ready for local installation and provide setup guidance on request. Video wall alignment is worth doing properly, so ask us for the layout drawing before you fix anything.
9. How many do I need for a 2x2 or 3x3 wall?
One VSVW02-46T per display: four for a 2x2, nine for a 3x3. Tell us the array layout and panel model with your enquiry and we will confirm the quantity and check the combined load against your wall construction.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
