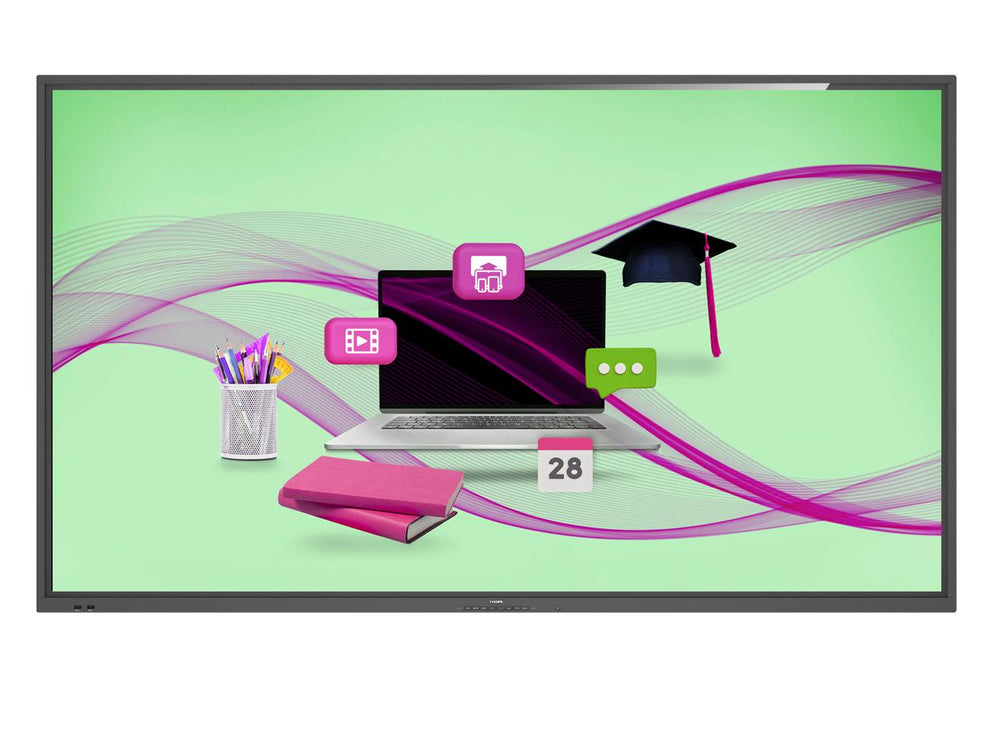

The Philips 86BDL4052E is an 86-inch interactive flat panel featuring 4K UHD resolution, 20-point infrared touch, and Android 11. Designed for collaborative environments, it includes built-in Wi-Fi and a robust connectivity suite. Smart-Boards supplies this unit across the GCC and Africa.
This E-Line display combines a 4K UHD VA panel with 20-point infrared touch technology to support multi-user collaboration. The Android 11 operating system, powered by an MTK 9970A processor, 8 GB RAM, and 32 GB storage, ensures smooth operation for educational software and digital signage applications without external PCs.
Connectivity is extensive, featuring three HDMI 2.0 inputs, USB-C with 65 W power delivery, and an OPS slot for flexible computing options. The unit includes 2 x 15 W speakers and comprehensive cabling for immediate setup. With a 5-year manufacturer warranty, it is suitable for demanding institutional deployments.
Key features
- High-Definition Visuals - The 86-inch screen delivers 3840 x 2160 resolution with 400 nits brightness and a 4,000:1 contrast ratio for clear content display.
- Multi-Touch Interaction - Infrared touch technology supports 20 simultaneous touch points with a viewing angle of 178 degrees horizontally and vertically.
- Android Operating System - Built-in Android 11 with 8 GB RAM and 32 GB storage enables standalone operation and app compatibility for interactive workflows.
- Comprehensive Connectivity - Includes HDMI 2.0 In x3, USB-C (65 W), HDMI Out, RS232C, RJ45, and an OPS slot for extended computing integration.
- Integrated Audio - Two 15 W built-in speakers provide audio output, reducing the need for external sound systems in standard meeting rooms.
Ideal for: Schools, universities, and corporate training centres requiring reliable 86-inch interactive displays for multi-site rollouts across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86BDL4052E/02
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD VA panel, 20-point infrared touch, Android 11, 8 GB memory, built-in Wi-Fi (2G/5G/6G), 2 x 15 W speakers, 500,000:1 dynamic contrast, Smart Insert mounting
Display
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178 degrees horizontal and vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- VA
- Response time
- 8 ms
Touch
- Touch points
- 20-point multi-touch
- Touch technology
- Infrared
System
- Processor
- MTK 9970A
- OPS slot
- Yes
- Operating system
- Android 11
- RAM
- 8 GB
- Storage
- 32 GB
Connectivity
- Wi-Fi
- 2G/5G/6G 2T2R
- Ports
- HDMI 2.0 In × 3, DVI-D In × 1, USB-C In (up to 65 W) × 1, USB 2.0 × 3, USB 3.0 × 3, USB-B × 3, HDMI 2.0 Out × 1, OPS slot, RJ45, RS232C, IR, Audio In and Out (3.5 mm)
Camera & audio
- Speaker output
- 2 x 15 W
Physical & warranty
- In the box
- Cleaning cloth, HDMI cable (3 m), remote control with AAA batteries, USB A to B cable (3 m), DVI-I cable (1.8 m), IR sensor cable (1.8 m), RS232 cable, RS232 daisy chain cable, quick start guide
- Operating humidity
- 20% to 80% RH (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 450 W (typical)
- Standby power
- < 0.5 W
- Weight
- 74.49 kg
- VESA mount
- 600 x 400 mm
- Warranty
- 5 years
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE; FCC Class A; RoHS; CB; EAC; EMF; ETL
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Philips 86BDL4052E support wireless screen sharing?
Yes, the display features built-in 2G/5G/6G 2T2R Wi-Fi, enabling wireless connectivity for screen sharing and network integration without additional adapters.
What is the warranty coverage for this interactive panel?
The manufacturer provides a 5-year warranty for this unit. Smart-Boards offers additional after-sales support to assist with technical queries and maintenance in the GCC and Africa.
Can this display be installed outside the UAE?
On-site installation is available only within the UAE. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
Which countries does Smart-Boards deliver to?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at the lowest possible cost.
Does the unit come with an OPS slot?
Yes, the Philips 86BDL4052E includes an OPS slot, allowing you to insert a separate computing module for additional operating system flexibility.
What is the power consumption of this display?
The typical power consumption is 450 W, with standby power under 0.5 W. It supports input voltages of 100–240 V AC, 50/60 Hz.
Is there a cleaning cloth included in the box?
Yes, the package includes a cleaning cloth, an HDMI cable (3 m), remote control, various connection cables, and a quick start guide for immediate use.
