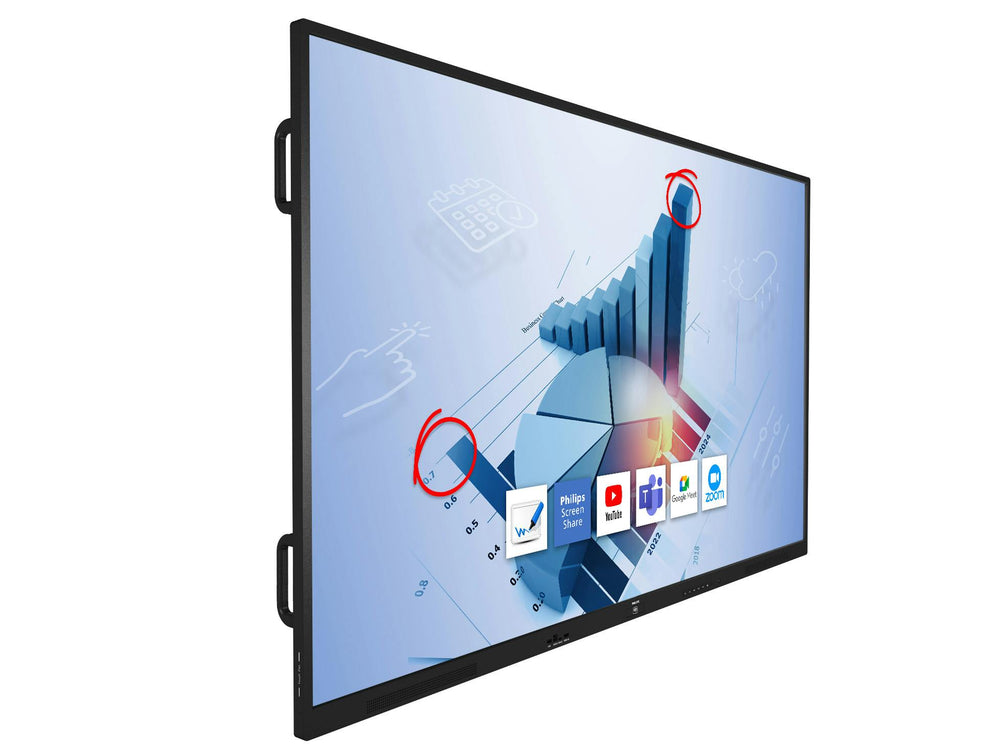

The Philips 86BDL4152E is an 86-inch interactive flat panel designed for high-engagement collaboration in educational and corporate environments. Featuring a 4K UHD ADS display, 40-point infrared touch, and Android 14, it supports heavy daily use with tempered glass. Smart-Boards supplies this model across the GCC and African regions.
This 86-inch collaboration display utilises an ADS panel technology to deliver a 3840 x 2160 resolution with 400 nits brightness. The screen is protected by tempered glass rated at 7 MOHS, providing anti-glare and anti-reflection properties essential for busy rooms. Android 14 powers the interface, supported by an octa-core processor, 8 GB RAM, and 32 GB storage for smooth multitasking and application performance.
Connectivity is managed through dual Gb LAN ports, Wi-Fi 2T/2R supporting 2.4/5/6 GHz bands, and Bluetooth 5.2 BLE. Input options include three HDMI 2.0 ports, two USB-C inputs (one delivering 65 W power), and an OPS slot for modular computing. Audio is handled by two 20 W speakers, while the unit weighs 57 kg and supports VESA mounting on 800 x 400 mm patterns.
Key features
- 4K Interactive Surface - The ADS panel offers 3840 x 2160 resolution with 40-point infrared multi-touch for precise interaction.
- Android 14 Platform - Built-in Android 14 OS with an octa-core processor, 8 GB RAM, and 32 GB storage for standalone operation.
- Robust Connectivity - Features dual Gb LAN, Wi-Fi 6, Bluetooth 5.2, and an OPS slot for flexible hardware integration.
- Durable Glass Front - Tempered glass rated 7 MOHS with anti-glare, anti-reflection, and anti-fingerprint coatings for heavy use.
- Comprehensive Ports - Includes three HDMI 2.0 inputs, two USB-C inputs (65 W), USB 3.0, and RS232C for control integration.
- Power Management - Typical power consumption is 190 W, with standby power under 0.5 W, supporting energy-efficient operation.
Ideal for lecture halls, meeting rooms, and training centres requiring durable 4K displays, suitable for buyers across the GCC and Africa seeking reliable collaboration tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86BDL4152E/00
- Product type
- Interactive Flat Panel
- Key features
- 40-point infrared touch, 4K UHD ADS panel, Android 14, Bluetooth 5.2 BLE and NFC, Wi-Fi 2T/2R 2.4/5/6 GHz, 2 x 20 W speakers, dual Gb LAN, tempered glass rated 7 MOHS
Display
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178 degrees horizontal and vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Panel technology
- ADS
- Response time
- 8 ms
Touch
- Touch points
- 40-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Octa-core (4 x A73 + 4 x A53)
- OPS slot
- Yes
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 32 GB
Connectivity
- Bluetooth
- Bluetooth 5.2 BLE
- Wi-Fi
- 2T/2R 2.4/5/6 GHz
- Ports
- HDMI 2.0 In × 3, USB 3.0 × 2, USB 2.0 × 1, USB-C In × 2 (one up to 65 W), USB-B × 2, Micro USB (OTG), HDMI 2.0 Out × 1, OPS slot, Gb LAN × 2, RS232C, IR, Audio In and Out (3.5 mm)
Camera & audio
- Speaker output
- 2 x 20 W
Physical & warranty
- In the box
- Cleaning cloth, remote control with AAA batteries, USB A to B cable (3 m), AC power cord, 2 touch pens, quick start guide, AC switch cover and screw
- Operating humidity
- 20% to 80% RH (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 190 W (typical)
- Standby power
- < 0.5 W
- Weight
- 57 kg
- VESA mount
- 800 x 400 mm
- Warranty
- 5 years
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE; FCC Class A; RoHS; CB; EAC; EMF; ETL; EPEAT Silver; Energy Label Class G
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can receive this display?
Smart-Boards ships this product to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available to assist regional teams during commissioning.
What warranty coverage is included?
The product comes with a 5-year manufacturer warranty, supplemented by Smart-Boards after-sales support to handle service and maintenance requirements in the supply regions.
Can I get a demonstration before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations to help you evaluate the display’s features, touch performance, and Android 14 interface before finalising your order.
What is the pricing structure?
Pricing is by quotation only. Smart-Boards provides tailored quotes for education, government, bulk, and tender projects, ensuring transparency for multi-site rollouts across the GCC and Africa.
Does the display include mounting hardware?
The package includes a quick start guide and screws for mounting, but the specific VESA pattern (800 x 400 mm) requires compatible brackets which are typically sourced separately for custom installations.
What accessories are included in the box?
The box contains a remote control with batteries, a 3 m USB A to B cable, AC power cord, two touch pens, a cleaning cloth, and an AC switch cover for safety and immediate setup.
