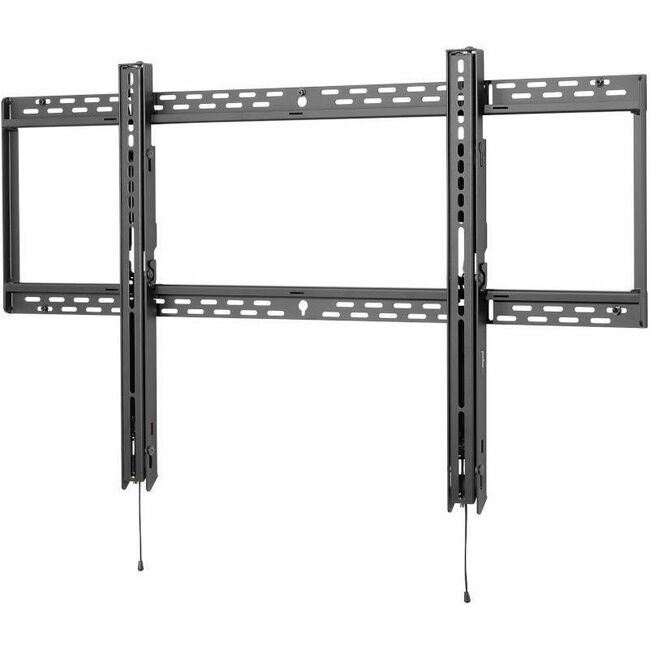

The Peerless-AV SmartMount SF680P-HUB2 is a low-profile flat wall mount engineered for 85-inch Microsoft Surface Hub 2S and 3 displays. Supporting up to 158.76 kg and featuring lateral and vertical adjustment, it ensures secure, accessible installation. Smart-Boards supplies this mount across the GCC and Africa.
This mount keeps the 85-inch display just 44 mm from the wall, preserving a sleek aesthetic while allowing full access to rear ports. The open wall plate design simplifies electrical and cable management during setup. Built-in kickstands hold the unit safely away from the surface for maintenance, while auto-latching rails secure the device with an audible click.
Post-installation tuning is possible with lateral adjustment up to 489 mm and vertical leveling of 25 mm. The system includes custom spacers and screws for proper clearance around the Surface Hub compute module. A theft-resistant option is available by removing quick-removal draw strings. The semi-gloss black finish uses a fused epoxy coating for durability.
Key features
- Low Profile Design - Holds the display 44 mm from the wall to maintain a clean, flat aesthetic in meeting rooms and classrooms.
- Secure Mounting System - Auto-latching adaptor rails lock the display in place without tools, offering a theft-resistant option when draw strings are removed.
- Adjustable Positioning - Allows lateral adjustment of up to 489 mm and vertical leveling of 25 mm for precise display alignment after installation.
- Maintenance Access - Built-in kickstands hold the display safely away from the wall, facilitating cable routing and rear port access.
- Wide Load Capacity - Supports displays up to 85 inches with a load capacity of 158.76 kg, accommodating the 600 x 600 mm VESA pattern.
Ideal for: Schools, universities, and corporate offices in the GCC and Africa requiring secure, low-profile mounting for Microsoft Surface Hub 2S and 3 displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 158.76 kg
- Model
- SF680P-HUB2
- Product type
- Flat Wall Mount
- Key features
- Auto-latching rails, Built-in kickstands, 44 mm from wall, Lateral and vertical adjustment, Cable management, Theft-resistant option
- Adjustability
- Lateral up to 489 mm; vertical 25 mm after installation
- Compatibility
- Microsoft Surface Hub 2S & 3 interactive whiteboard
- Finish
- Fused epoxy
- Security features
- Quick-removal draw strings; theft-resistant option
Display
- Colour
- Semi-gloss black
- Screen size support
- Up to 85 inch
Physical & warranty
- Mounting type
- Wall, low profile
- In the box
- Flat wall mount for 85-inch Surface Hub 2S & 3, wall mount hardware, spacers, screws and lock washers, installation instructions
- Weight
- 7.89 kg
- VESA mount
- 600 x 600 mm
- Warranty
- Limited lifetime
- Certifications
- RoHS, TAA, VESA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum load capacity of this mount?
The Peerless SF680P-HUB2 supports a maximum load capacity of 158.76 kg. This rating ensures stability for 85-inch interactive displays like the Microsoft Surface Hub 2S and 3.
Does this mount work with Surface Hub 3?
Yes, the SF680P-HUB2 is compatible with both the Microsoft Surface Hub 2S and Surface Hub 3. It includes custom spacers and screws to ensure proper clearance for the compute module on both models.
How much adjustment is available after installation?
The mount allows lateral adjustment of up to 489 mm and vertical leveling of 25 mm. This flexibility helps fine-tune the display position to suit specific room layouts or viewing angles.
Is the mount theft-resistant?
The system offers a theft-resistant option. By default, quick-removal draw strings allow easy access for maintenance. Removing these strings secures the display to the wall plate to prevent unauthorized removal.
Which countries can you deliver this mount to?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations. Delivery costs are minimized through established logistics partners, with timing confirmed on the quotation.
Do you provide installation services in Africa?
On-site installation is available within the UAE only. For other countries, the mount is delivered ready for local setup, with remote guidance provided if needed to assist your team.
What is the warranty on this wall mount?
The mount comes with a limited lifetime warranty from the manufacturer. Smart-Boards provides after-sales support for all supplies across the GCC and Africa regions.
