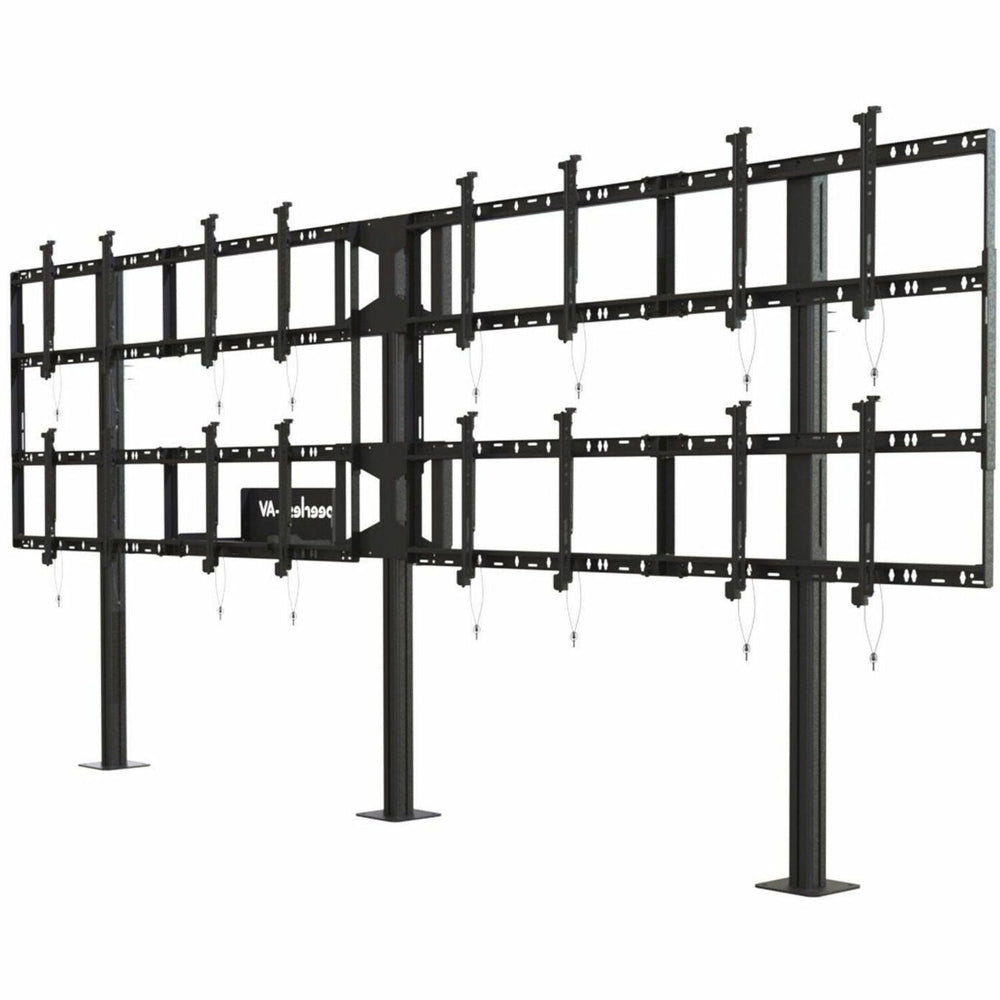

The Peerless-AV DS-S555-4X2 is a floor-standing pedestal mount designed for 4x2 video wall configurations of 46 to 55-inch displays. It supports up to 362.87 kg total load and features tool-less micro-adjustment for precise alignment. Smart-Boards supplies this unit for retail and public spaces across the GCC and Africa.
Constructed from an aluminium frame, this pedestal mount reduces shipping weight while maintaining structural integrity for high-traffic retail environments. It accommodates VESA patterns from 200 x 200 mm to 600 x 400 mm, ensuring compatibility with various display brands. The unit bolts directly to concrete floors, eliminating the need for wall or ceiling supports and providing stability in open layouts.
Installation is streamlined through quick-connect adaptors and tool-less micro-adjustment at eight points, allowing for precise screen alignment without extra hardware. A rear media storage shelf with a cover houses components, keeping the installation clean and secure. This solution is suitable for ministries, NGOs, and commercial buyers managing multi-site rollouts across the region.
Key features
- Display Compatibility - Supports up to eight displays in a 4 x 2 layout with VESA 200 x 200 to 600 x 400 mm patterns.
- Load Capacity - Holds a total load of 362.87 kg across the configured screens and mounted components.
- Stability Design - Bolts directly to concrete structures without requiring additional wall or ceiling connections for security.
- Alignment System - Features tool-less micro-adjustment at eight points to ensure seamless display alignment during setup.
- Cable Management - Includes a rear media storage shelf with a cover to house components and maintain a clutter-free appearance.
- Material Build - Aluminium frame construction reduces overall weight and shipping costs while supporting a powder-coated black finish.
Ideal for: Retail kiosks, public transportation hubs, and corporate lobbies requiring stable, floor-standing 4x2 video walls for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 362.87 kg total
- Shelves
- Rear media storage shelf with cover
- Model
- DS-S555-4X2
- Product type
- Video Wall Pedestal Mount
- Key features
- Quick-connect adaptors, tool-less micro-adjustment at 8 points, rear media shelf, concrete bolt-down, aluminium frame, VESA compatible, retail application
- Adjustability
- Tool-less micro-adjustment at 8 points
- Application
- Retail
- Compatibility
- Up to 8 displays, 4 x 2 layout; universal mount pattern
- Finish
- Powder coated
- Form factor
- Floor pedestal
Display
- Colour
- Black
- Screen size support
- 46-55 inch
Physical & warranty
- Material
- Aluminium
- Mounting type
- Bolts to concrete, no wall or ceiling connection
- In the box
- Pedestal mount for 4 x 2 layout, stand, display adaptors, hardware
- Weight
- 107.95 kg
- VESA mount
- 200 x 200 to 600 x 400 mm
- Warranty
- 5 years limited
- Certifications
- RoHS, TAA, VESA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can be delivered to?
Delivery is available to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Logistics partners handle shipping at competitive rates. Final availability and transit times are confirmed on the quotation based on the specific destination and order size.
Is installation provided outside the UAE?
On-site installation is available only within the UAE. For deliveries to other countries, the unit arrives ready for local setup. Remote guidance is provided to assist local teams with the concrete bolting and display alignment process, ensuring correct configuration without on-site technical staff.
What is the maximum screen size supported?
The mount supports displays ranging from 46 to 55 inches. It is designed for a 4 x 2 configuration, holding up to eight screens total while maintaining structural stability through its concrete-bolted base.
Does it require wall mounting?
No, it is a floor pedestal mount that bolts directly to concrete. This design eliminates the need for wall or ceiling supports, making it ideal for open retail spaces or public areas where wall mounting is not feasible.
What is the weight of the unit?
The pedestal mount weighs 107.95 kg. The aluminium frame construction helps reduce this weight compared to steel alternatives, facilitating easier handling while still supporting a total load capacity of 362.87 kg.
How is display alignment managed?
It uses tool-less micro-adjustment at eight points. This allows installers to align screens precisely during setup without needing extra hardware. The quick-connect adaptors also engage automatically with the mounting rails for ease of use.
What warranty is included?
The product comes with a 5-year limited warranty from the manufacturer. Smart-Boards provides after-sales support for the region, and the warranty terms apply as per the manufacturer's policy for authorised resellers.
