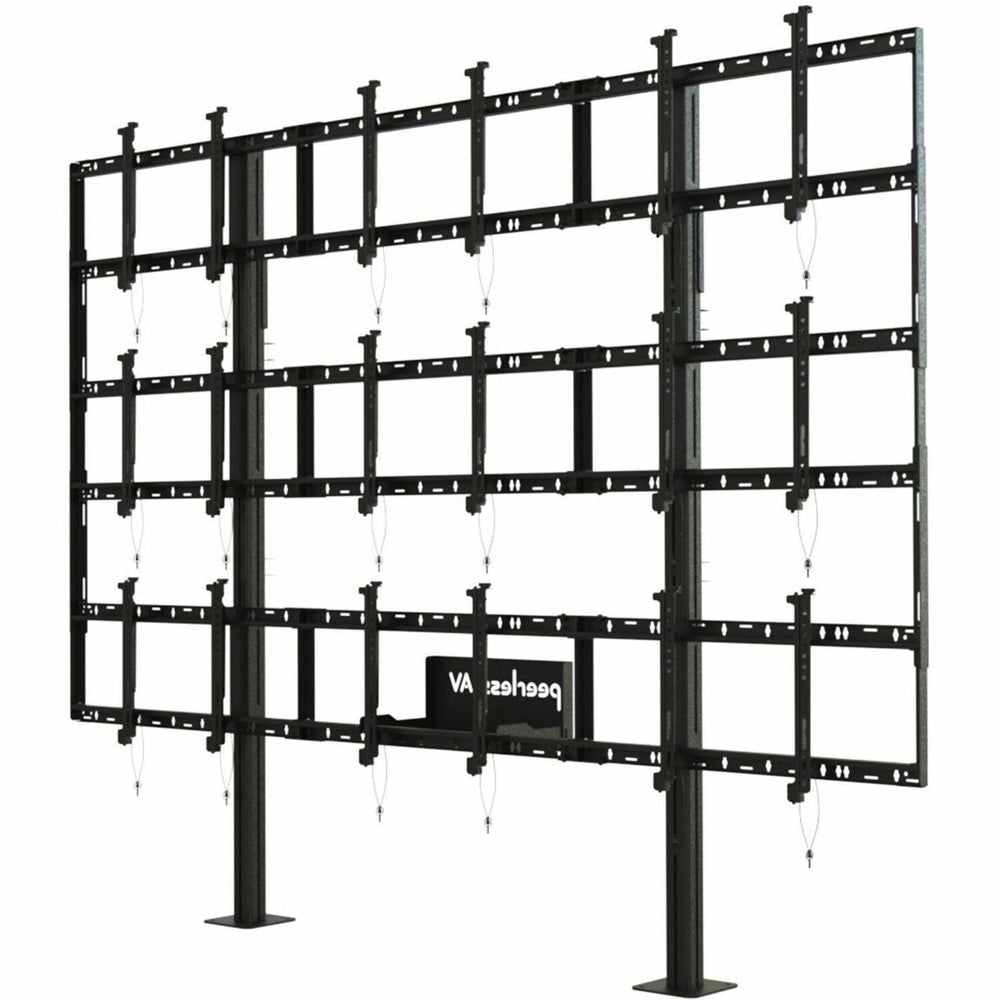

The Peerless-AV DS-S555-3X3 is a modular video wall pedestal mount designed for 3x3 configurations of 46 to 55-inch displays. It supports up to 408.23 kg total load, bolts directly to concrete, and includes rear media storage and tool-less micro-adjustment. Smart-Boards supplies this solution for commercial projects across the GCC and Africa.
This aluminium frame pedestal mount accommodates nine displays in a 3x3 layout, supporting VESA patterns from 200 x 200 to 600 x 400 mm. The structure bolts directly to concrete floors, eliminating the need for wall or ceiling connections, which makes it suitable for high-traffic retail or public spaces. The powder-coated black finish ensures durability while the lightweight aluminium construction helps reduce shipping costs for international delivery to GCC and African sites.
Installation efficiency is supported by quick-connect adaptors and tool-less micro-adjustment at eight points to align screens precisely. A rear media storage shelf with a cover provides a secure location for AV components, keeping cables hidden via adjustable centralizing brackets. The unit weighs 108.86 kg and includes all necessary display adaptors and hardware. Smart-Boards offers quote-only pricing and can arrange live demonstrations for potential buyers evaluating this mount.
Key features
- Concrete Mounting - Bolts directly to concrete structures without requiring additional wall or ceiling supports for stability.
- High Load Capacity - Supports a total load of 408.23 kg (45.36 kg per display) across up to nine 46-55 inch screens.
- Rear Media Storage - Includes a rear media storage shelf with a cover to house components while maintaining a clean appearance.
- Tool-less Adjustment - Features tool-less micro-adjustment at eight points to seamlessly align displays during setup.
- Cable Management - Integrates rear adjustable cable centralizing brackets to organize wiring behind the video wall.
Ideal for retail kiosks, transport hubs, and corporate lobbies requiring a stable 3x3 video wall, suitable for multi-site rollouts across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 408.23 kg total (45.36 kg per display)
- Shelves
- Rear media storage shelf with cover
- Model
- DS-S555-3X3
- Product type
- Video Wall Pedestal Mount
- Key features
- Concrete bolt-down, rear media shelf, rear cable management, mounting rails, quick-connect adaptors, tool-less micro-adjustment, aluminium frame, VESA compatible
- Adjustability
- Tool-less micro-adjustment at 8 points
- Application
- Display screens and video walls
- Compatibility
- Up to 9 displays, 3 x 3 layout
- Finish
- Powder coated
- Form factor
- Floor pedestal
Display
- Colour
- Black
- Screen size support
- 46-55 inch
Physical & warranty
- Material
- Aluminium
- Mounting type
- Bolts to concrete, no wall or ceiling connection
- In the box
- Pedestal mount for 3 x 3 layout, display adaptors, hardware
- Weight
- 108.86 kg
- VESA mount
- 200 x 200 to 600 x 400 mm
- Warranty
- 5 years limited
- Certifications
- RoHS, TAA, VESA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this pedestal be delivered to GCC and African countries?
Yes, Smart-Boards ships the DS-S555-3X3 to GCC countries and African nations through established logistics partners at the lowest possible cost. Delivery times depend on the specific country and order size, which are confirmed on the quotation.
Is on-site installation provided outside the UAE?
No, on-site installation is available within the UAE only. For deliveries to other countries, the unit arrives ready for local setup with remote guidance if needed to assist local technicians with the concrete bolting and display mounting.
What is the maximum weight this mount supports?
The total load capacity is 408.23 kg, with a limit of 45.36 kg per individual display. The mount itself weighs 108.86 kg.
Does it require wall mounting?
No, the DS-S555-3X3 is designed to bolt directly to concrete floors. It does not require additional connections to walls or ceilings, making it a standalone floor pedestal solution.
What display sizes are compatible?
It is compatible with displays ranging from 46 to 55 inches. It supports VESA mounting patterns from 200 x 200 mm up to 600 x 400 mm.
How are cables managed behind the wall?
The mount features rear adjustable cable centralizing brackets to organize wiring. A rear media storage shelf with a cover also provides a safe location to house components, keeping the area clutter-free.
What warranty is included?
The product comes with a 5-year limited warranty from the manufacturer. Smart-Boards provides after-sales support for this product supplied across the GCC and Africa.
