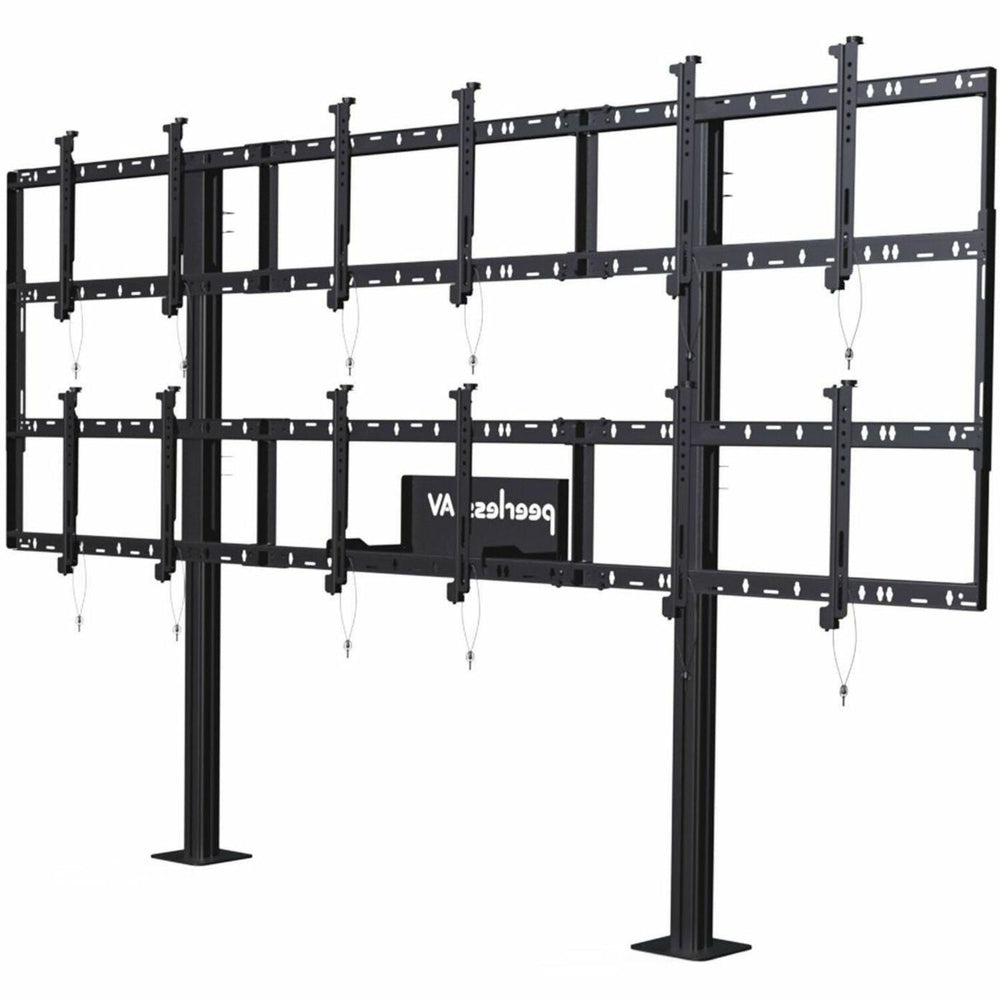

The Peerless-AV DS-S555-3X2 is a modular video wall pedestal mount designed for 3x2 configurations of 46 to 55-inch displays. It supports up to 272.16 kg total weight and features tool-less micro-adjustment for precise alignment. Smart-Boards supplies this unit across the GCC and African markets.
This floor pedestal provides a stable foundation for multi-display setups without requiring wall or ceiling attachments. Constructed from aluminium with a powder-coated black finish, it reduces overall weight while maintaining structural integrity. The unit bolts directly to concrete surfaces, making it suitable for high-traffic public spaces and retail environments where secure mounting is critical. It accommodates VESA patterns from 200 x 200 mm to 600 x 400 mm, ensuring compatibility with standard commercial displays.
Installation is simplified by quick-connect adaptors that latch onto mounting rails, allowing for automatic engagement and ease of setup. Tool-less micro-adjustment at eight points ensures seamless alignment of the video wall. The design includes a rear media storage shelf with a cover for components and adjustable cable centralizing brackets for clean cable management. Smart-Boards offers this solution for schools, ministries, and corporations requiring reliable AV infrastructure in the region.
Key features
- Concrete Stabilization - Bolts directly to concrete structures for added stability in high-traffic locations without wall connections.
- Display Capacity - Supports up to 6 displays in a 3 x 2 layout with a total load capacity of 272.16 kg.
- VESA Compatibility - Accepts VESA mount patterns ranging from 200 x 200 mm to 600 x 400 mm for various screen sizes.
- Precision Alignment - Features tool-less micro-adjustment at 8 points to ensure seamless display alignment.
- Cable Management - Includes rear adjustable cable centralizing brackets and a media storage shelf with cover.
Ideal for: Retail kiosks, corporate boardrooms, and public transport hubs requiring stable, floor-standing video walls across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 272.16 kg total (45.36 kg per display)
- Shelves
- Rear media storage shelf with cover
- Model
- DS-S555-3X2
- Product type
- Video Wall Pedestal Mount
- Key features
- Concrete bolt-down, rear media shelf, rear cable management, mounting rails, quick-connect adaptors, tool-less micro-adjustment, aluminium frame, VESA compatible
- Adjustability
- Tool-less micro-adjustment at 8 points
- Application
- Display screens and video walls
- Compatibility
- Up to 6 displays, 3 x 2 layout
- Finish
- Powder coated
- Form factor
- Floor pedestal
Display
- Colour
- Black
- Screen size support
- 46-55 inch
Physical & warranty
- Material
- Aluminium
- Mounting type
- Bolts to concrete, no wall or ceiling connection
- In the box
- Pedestal mount for 3 x 2 layout, display adaptors, hardware
- Weight
- 76.20 kg
- VESA mount
- 200 x 200 to 600 x 400 mm
- Warranty
- 5 years limited
- Certifications
- RoHS, TAA, VESA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this mount require wall or ceiling support?
No. The DS-S555-3X2 is designed to bolt directly to concrete floors, eliminating the need for additional wall or ceiling connections.
Which countries receive delivery?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations through established logistics partners.
Is installation available outside the UAE?
On-site installation is limited to the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed.
What is the maximum display weight?
The total load capacity is 272.16 kg, supporting up to 45.36 kg per display in the 3 x 2 configuration.
How are cables managed?
The unit features rear adjustable cable centralizing brackets and a dedicated media storage shelf with a cover to maintain a clean appearance.
What warranty is provided?
The product comes with a 5-year limited manufacturer warranty, supported by Smart-Boards after-sales service in the region.
Does it support 55-inch screens?
Yes. The mount is compatible with displays ranging from 46 to 55 inches, provided they meet the specified VESA mounting pattern requirements.
