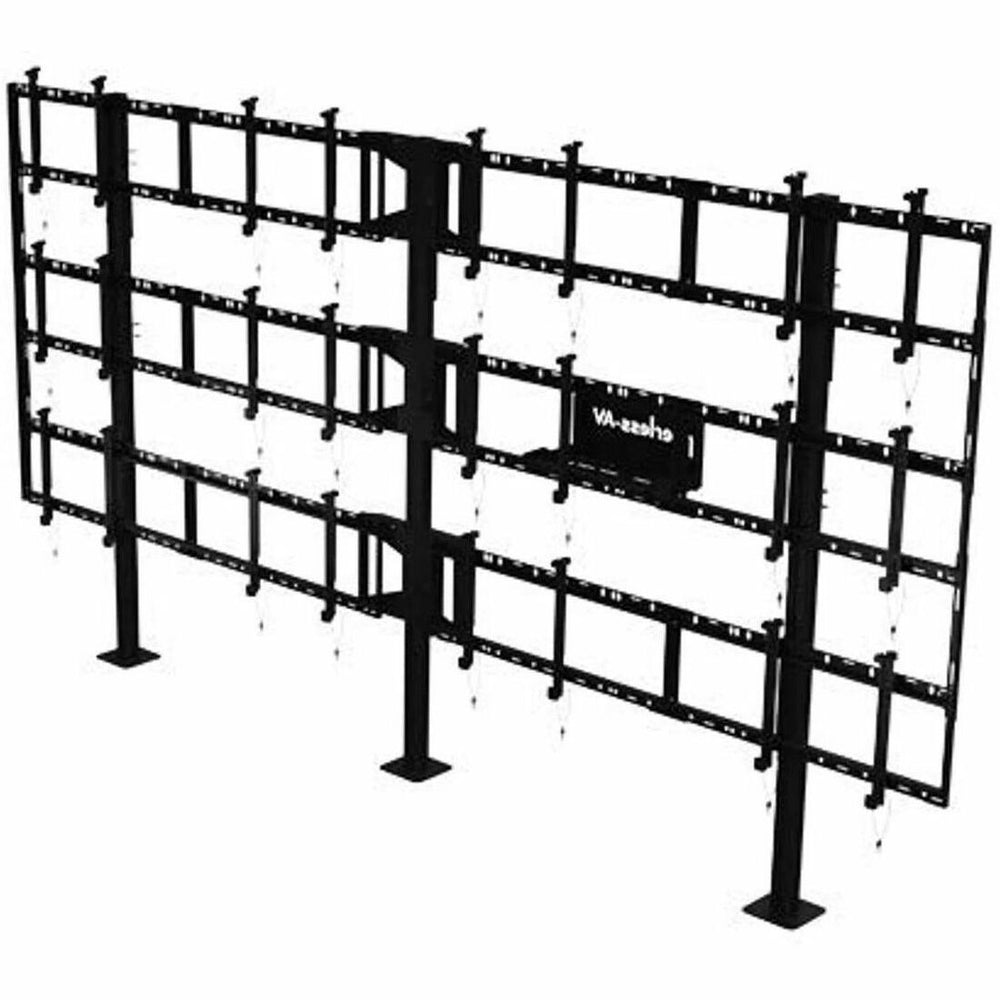

The Peerless-AV SmartMount DS-S555-4X3 is a modular floor pedestal designed for 4x3 video wall configurations supporting 46 to 55-inch displays. It offers a 544.31 kg total load capacity and VESA compatibility from 200x200 to 600x400 mm. Smart-Boards supplies this robust mounting solution for multi-site deployments across the GCC and Africa.
Engineered for high-traffic environments, this aluminium frame mount bolts directly to concrete, eliminating the need for wall or ceiling supports. The structure supports up to 12 displays in a 4x3 layout, with a total load capacity of 544.31 kg and 45.36 kg per display. Its powder-coated black finish and integrated rear media shelf with cover provide a secure, clutter-free aesthetic suitable for corporate lobbies and public transport hubs.
Installation efficiency is enhanced through tool-less micro-adjustment and quick-connect adaptors that engage automatically with mounting rails. Rear cable centralizing brackets keep wiring organized, while the lightweight aluminium construction reduces shipping costs across international borders. Smart-Boards provides quote-only pricing, including education and government tender options, with delivery times confirmed based on country and order size.
Key features
- Structural Integrity - Bolts directly to concrete without requiring additional connections to the wall or ceiling.
- VESA Compatibility - Supports VESA patterns from 200 x 200 up to 600 x 400mm for flexible display integration.
- Weight Optimization - Aluminum frame reduces overall weight to 200.49 kg, lowering shipping costs for regional delivery.
- Cable Management - Rear adjustable cable centralizing brackets keep cables clean and organized for enhanced aesthetics.
- Quick Installation - Adaptors feature a quick connect latch for automatic engagement with the mounting rails.
Ideal for corporate boardrooms, control rooms, and retail spaces requiring stable 4x3 video walls, suitable for buyers across the GCC and Africa managing multi-site rollouts.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Max load
- 544.31 kg total (45.36 kg per display)
- Shelves
- Rear media storage shelf with cover
- Model
- DS-S555-4X3
- Product type
- Video Wall Pedestal Mount
- Key features
- Concrete bolt-down, rear cable centralizing brackets, rear media shelf, quick-connect adaptors, mounting rails, tool-less micro-adjustment, aluminium frame, VESA compatible
- Adjustability
- Tool-less micro-adjustment
- Application
- Display screens and video walls
- Compatibility
- Up to 12 displays, 4 x 3 layout
- Finish
- Powder coated
- Form factor
- Floor pedestal
Display
- Colour
- Black
- Screen size support
- 46-55 inch
Physical & warranty
- Material
- Aluminium
- Mounting type
- Bolts to concrete, no wall or ceiling connection
- In the box
- Pedestal mount for 4 x 3 layout, display adaptors, hardware
- Weight
- 200.49 kg
- VESA mount
- 200 x 200 to 600 x 400 mm
- Warranty
- 5 years limited
- Certifications
- RoHS, TAA, VESA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this pedestal be installed outside the UAE?
Yes, Smart-Boards ships to GCC countries (KSA, Qatar, Kuwait, Oman, Bahrain) and Africa. Delivery is ready for local setup with remote guidance, as on-site installation is limited to the UAE.
What is the maximum weight capacity?
The total load capacity is 544.31 kg, with a maximum of 45.36 kg per display in the 4x3 configuration.
Which display sizes are supported?
The DS-S555-4X3 supports displays ranging from 46 to 55 inches, with VESA patterns from 200x200 to 600x400 mm.
Is professional installation included?
On-site installation is available only within the UAE. For other regions, the unit is delivered ready for local setup, with remote guidance provided if needed.
What warranty is provided?
The product includes a 5-year limited manufacturer warranty, supplemented by Smart-Boards after-sales support for all supplied units.
Does it include a media shelf?
Yes, the mount includes a rear media storage shelf with a cover to house components and maintain a clean appearance.
What certifications does it hold?
The pedestal is certified for RoHS, TAA, and VESA compliance, ensuring suitability for government and tender requirements.
