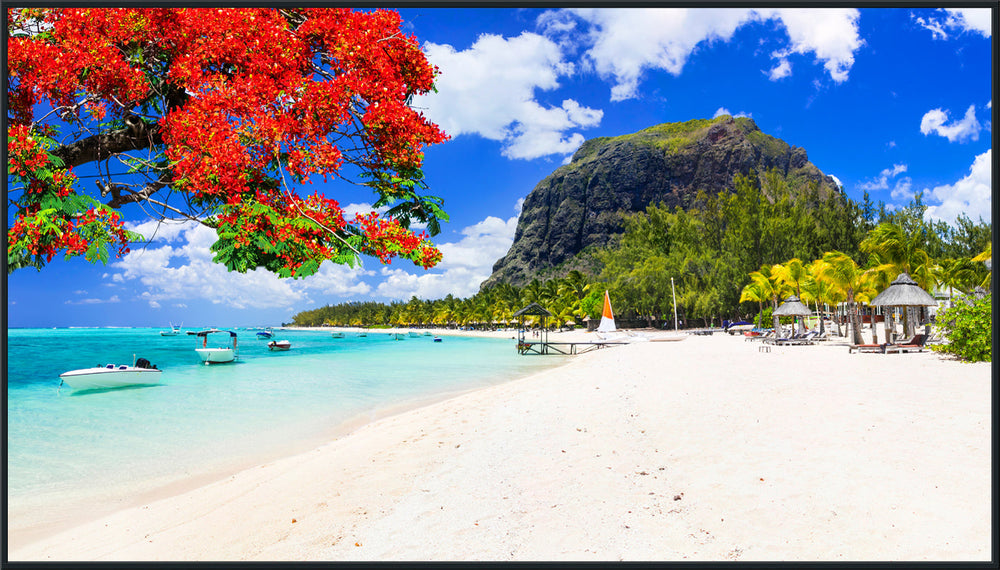

The Panasonic TH-86SQ2H is an 86-inch (2174.2 mm) 4K digital signage display designed for high-brightness environments. Featuring 700 cd/m² output, anti-glare treatment, and Intel SDM slot compatibility, it suits multi-site deployments across the GCC and Africa requiring reliable 24/7 operation.

This 86-inch class display delivers 4K resolution (3840 x 2160) with a typical brightness of 700 cd/m² and a 4000:1 contrast ratio. The panel surface features anti-glare treatment (Haze 25%) to mitigate reflections in well-lit areas. It supports 24-hour daily operation and tilts 20 degrees forward or backward for landscape or portrait orientation.

Connectivity includes three HDMI inputs, a mini D-sub PC input, and an Intel SDM slot for flexible system integration. Power delivery via USB-C reaches 60 W, while built-in 20 W stereo speakers reduce the need for external audio. Measuring 1929 x 1100 x 70 mm, it weighs 48.7 kg and mounts to VESA 600 x 400 mm pitches.

Key features

• 4K Bright Panel - The 86-inch panel provides 3840 x 2160 pixels and 700 cd/m² brightness with anti-glare coating for clear visibility.
• Intel SDM Slot - An Intel SDM standard slot allows for flexible PC or interface board integration for diverse signage applications.
• Versatile Connections - Includes three HDMI ports, USB-C with 60 W power delivery, RS-232C, and PJLink LAN for easy system control.
• Flexible Mounting - Supports portrait orientation with 20-degree tilt and fits standard VESA 600 x 400 mm wall-mount pitches.
• Built-in Audio - Integrated 20 W (10 W + 10 W) stereo speakers eliminate the need for external sound systems in many setups.

Ideal for conference rooms, retail stores, and public signage across the GCC and Africa where high visibility and 24/7 reliability are required.
