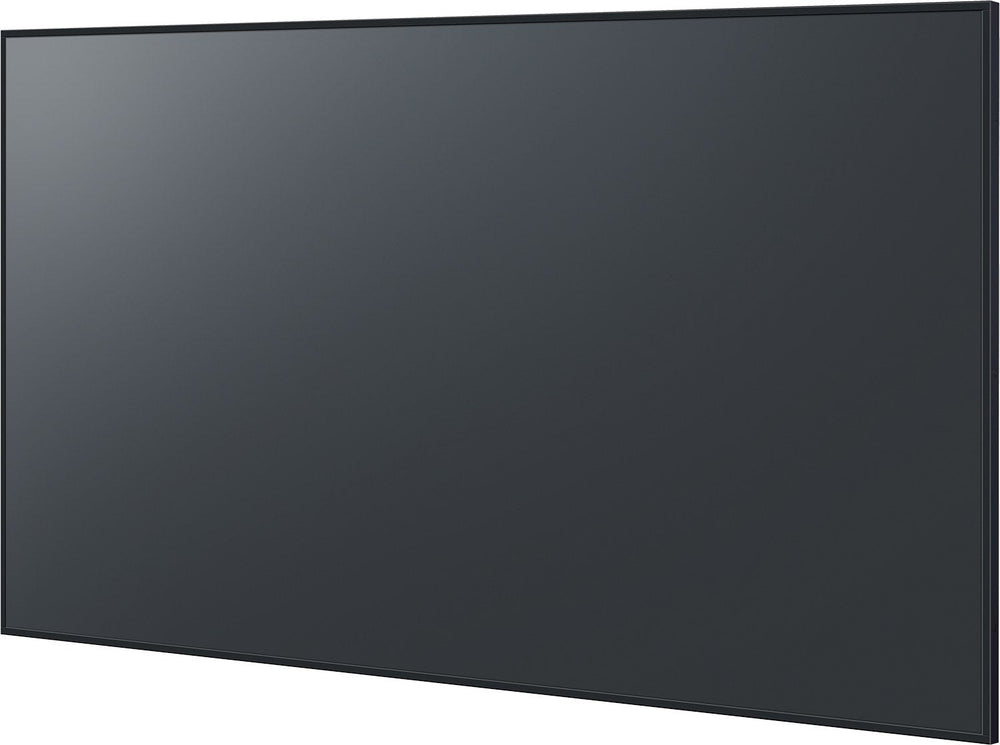

The Panasonic TH-86SQ3 is an 86-inch 4K UHD digital signage display engineered for professional environments across the GCC and Africa. Featuring 500 nits brightness and an anti-glare panel, it delivers clear visuals in bright spaces. Smart-Boards supplies this model for corporate and educational deployments.
This 86-inch display provides 3840 x 2160 resolution with a 500 nit brightness level, ensuring high visibility even in well-lit conference rooms and retail spaces. The anti-glare panel reduces reflected light, maintaining image clarity from all viewing angles. Its 24-hour duty cycle rating supports continuous operation for digital signage applications.
Installation flexibility is supported by VESA 600 x 400 mm mounting compatibility and tilt adjustment of up to 20 degrees forward or backward. The unit weighs 46.0 kg and accepts M8 screws with 20 mm depth. It connects via three HDMI inputs, a PC port, and USB Type-A for media playback, with LAN and RS-232C options for system integration.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with 500 nits brightness and an anti-glare surface for clear visuals in bright environments.
- Flexible Connectivity - Features three HDMI 2.2 inputs, a PC port, audio jacks, and a USB Type-A port for direct media playback without a PC.
- Centralized Control - Enables efficient management via LAN (PJLink compatible) and RS-232C serial port for integration into larger AV systems.
- Robust Design - Built for 24-hour continuous operation with operating temperatures from 0 to 40 °C and humidity resistance up to 80% RH.
- Adaptive Mounting - Supports landscape or portrait orientation with VESA 600 x 400 mm compatibility and tilt adjustment for optimal viewing angles.
Ideal for corporate lobbies, classrooms, and retail spaces requiring reliable 24/7 operation, suitable for multi-site rollouts across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Tilt range
- 0 to 20 degrees forward / backward
- Model
- TH-86SQ3
- Product type
- Digital Signage Display
- Key features
- 4K UHD (3840 x 2160), 500 nits, anti-glare panel, 3 HDMI inputs, RS-232C and LAN (PJLink) control, built-in USB media playback, 20 W speakers, 24-hour operation
- Orientation
- Landscape / Portrait
- Wall fixing
- M8 screws, 20 mm screw hole depth
Display
- Brightness
- 500 cd/m²
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
System
- Operating hours
- 24 hours a day
Connectivity
- Ethernet (RJ45)
- RJ45, 10BASE-T/100BASE-TX, PJLink compatible
- HDMI input
- 3 (HDCP 2.2 supported)
- Serial port
- RS-232C (D-sub 9-pin) × 1
- USB ports
- USB Type A × 1 (5 V / 2 A, USB 2.0)
- Ports
- HDMI In × 3, PC In (Mini D-sub 15-pin) × 1, Audio In (3.5 mm) × 1, Audio Out (RCA) × 2, LAN (RJ45) × 1, USB Type A × 1, RS-232C (D-sub 9-pin) × 1
Camera & audio
- Speaker output
- 20 W (10 W + 10 W)
Physical & warranty
- Operating humidity
- 20% to 80% RH (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 332 W (on mode average)
- Weight
- 46.0 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 110–240 V AC, 50/60 Hz
- Power capacity (VA)
- 436 VA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Panasonic TH-86SQ3 support direct media playback?
Yes. It features a USB Type-A port that allows automatic playback of 4K compatible still images and videos from a connected USB memory stick, eliminating the need for a separate media player or PC.
Is this display suitable for bright environments?
Yes. With 500 nits brightness and an anti-glare panel treatment (Haze 25%), it suppresses reflected light to ensure clear visibility in conference rooms, classrooms, and retail stores with strong ambient lighting.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners. Delivery times depend on the specific country and order size.
Is on-site installation available outside the UAE?
On-site installation is available within the UAE only. For deliveries to other countries, the unit arrives ready for local setup, with remote guidance provided if needed to assist with the installation process.
What control options are available for system integration?
The TH-86SQ3 supports external control via LAN using the PJLink protocol and via the RS-232C serial port. This allows integration into existing centralized management systems for efficient operation across multiple devices.
Can the display be mounted in portrait orientation?
Yes. The display supports both landscape and portrait orientations. It is compatible with VESA 600 x 400 mm mounts and allows for tilt adjustment of up to 20 degrees to suit the specific installation requirements.
What warranty and support does Smart-Boards provide?
Smart-Boards is an authorized reseller of Panasonic. We supply the product with the manufacturer warranty and provide additional after-sales support through our Dubai office, ensuring reliable assistance for our clients across the region.
