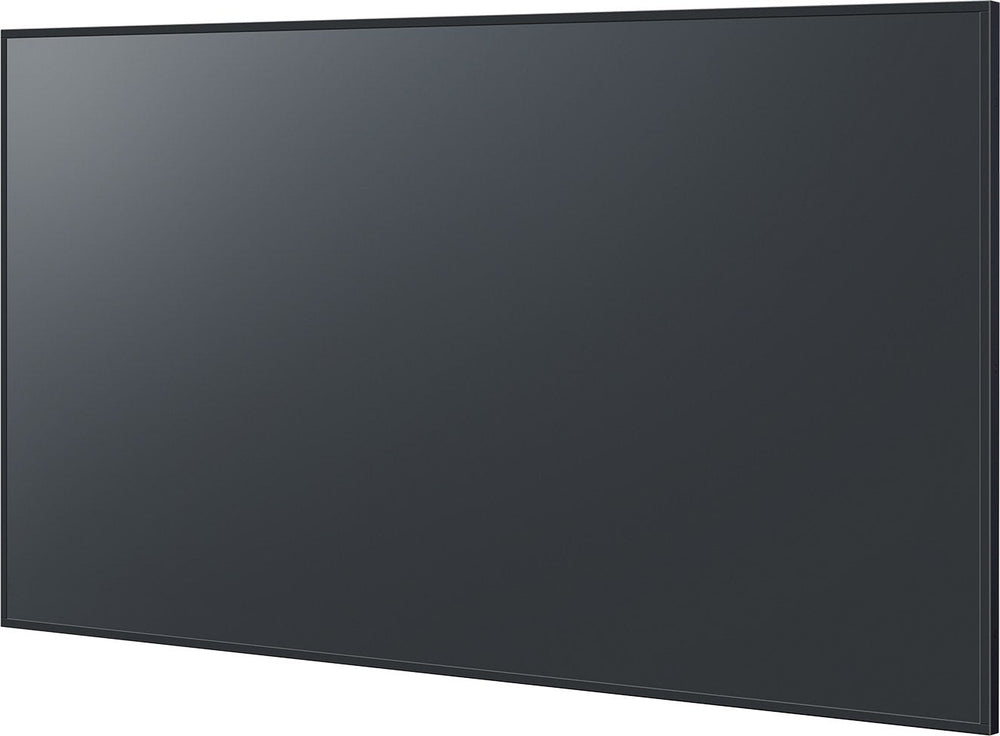

The Panasonic TH-75SQ3 is a 75-inch 4K UHD digital signage display engineered for professional commercial environments. It offers 500 nits brightness, an anti-glare panel, and 24-hour operation capability. Smart-Boards supplies this model across the GCC and Africa, providing quotation-only pricing and regional logistics support.
This 75-inch display delivers 3840 x 2160 resolution with 500 nits of brightness, ensuring clear visibility in bright conference rooms and retail spaces. The anti-glare panel suppresses reflected light from windows or overhead lighting, maintaining image quality for viewers in various positions. Its 178° horizontal and vertical viewing angles allow content to be read clearly from the sides, making it suitable for large gathering areas.
The TH-75SQ3 supports 24-hour continuous operation with a durable build for demanding commercial use. It includes three HDMI inputs and a USB Type-A port for direct 4K media playback without a PC. Control is managed via RS-232C or LAN with PJLink compatibility, allowing integration into existing AV systems. Smart-Boards provides this unit to schools, ministries, and companies in the GCC and Africa, handling multi-site logistics and local setup guidance.
Key features
- 4K UHD Clarity - Provides 3840 x 2160 resolution with 500 nits brightness for detailed visuals in well-lit rooms.
- Anti-Glare Panel - Features a haze 25% surface treatment to reduce reflected glare from bright light sources.
- Flexible Connectivity - Includes three HDMI 2.2 inputs, PC input, and a USB Type-A port for direct media playback.
- Remote Management - Supports external control via RS-232C serial port and LAN with PJLink protocol for efficient operation.
- Commercial Durability - Designed for 24-hour daily duty cycle with an operating temperature range of 0 to 40 °C.
- Mounting Options - Supports VESA 600 x 400 mm mounting with M8 screws and up to 20 degrees tilt adjustment.
Ideal for conference rooms, classrooms, and retail displays, this display suits buyers across the GCC and Africa requiring reliable 4K signage with remote control capabilities.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Tilt range
- 0 to 20 degrees forward / backward
- Model
- TH-75SQ3
- Product type
- Digital Signage Display
- Key features
- 4K UHD (3840 x 2160), 500 nits, anti-glare panel, 3 HDMI inputs, RS-232C and LAN (PJLink) control, built-in USB media playback, 20 W speakers, 24-hour operation
- Orientation
- Landscape / Portrait
- Wall fixing
- M8 screws, 20 mm screw hole depth
Display
- Brightness
- 500 cd/m²
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
System
- Operating hours
- 24 hours a day
Connectivity
- Ethernet (RJ45)
- RJ45, 10BASE-T/100BASE-TX, PJLink compatible
- HDMI input
- 3 (HDCP 2.2 supported)
- Serial port
- RS-232C (D-sub 9-pin) × 1
- USB ports
- USB Type A × 1 (5 V / 2 A, USB 2.0)
- Ports
- HDMI In × 3, PC In (Mini D-sub 15-pin) × 1, Audio In (3.5 mm) × 1, Audio Out (RCA) × 2, LAN (RJ45) × 1, USB Type A × 1, RS-232C (D-sub 9-pin) × 1
Camera & audio
- Speaker output
- 20 W (10 W + 10 W)
Physical & warranty
- Operating humidity
- 20% to 80% RH (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 213 W (on mode average)
- Weight
- 35.6 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 110–240 V AC, 50/60 Hz
- Power capacity (VA)
- 291 VA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can the Panasonic TH-75SQ3 play 4K content directly from a USB drive?
Yes, the display has a built-in USB media player that supports 4K compatible file playback. Simply insert a USB memory stick to start playback automatically without needing a PC or set-top box.
Is this display suitable for bright rooms with windows?
Yes, the 500 nits brightness and anti-glare panel with 25% haze are designed to maintain visibility and reduce reflected glare in bright environments like conference rooms and retail spaces.
Which countries in the GCC and Africa does Smart-Boards deliver to?
Smart-Boards ships to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners, ensuring delivery to your specific location.
Does Smart-Boards provide on-site installation for this display outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance to assist your technical team.
How is the Panasonic TH-75SQ3 controlled in a multi-display setup?
You can control the display via RS-232C serial port or LAN using PJLink protocol. This allows integration into existing AV systems for centralized management of multiple units.
What is the maximum tilt angle for wall mounting this display?
The display supports a forward or backward tilt of up to 20 degrees. This allows you to adjust the viewing angle for optimal visibility in different room configurations.
Can I get a demonstration of the TH-75SQ3 before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows you to verify the 4K image quality and connectivity options for your specific site requirements.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
