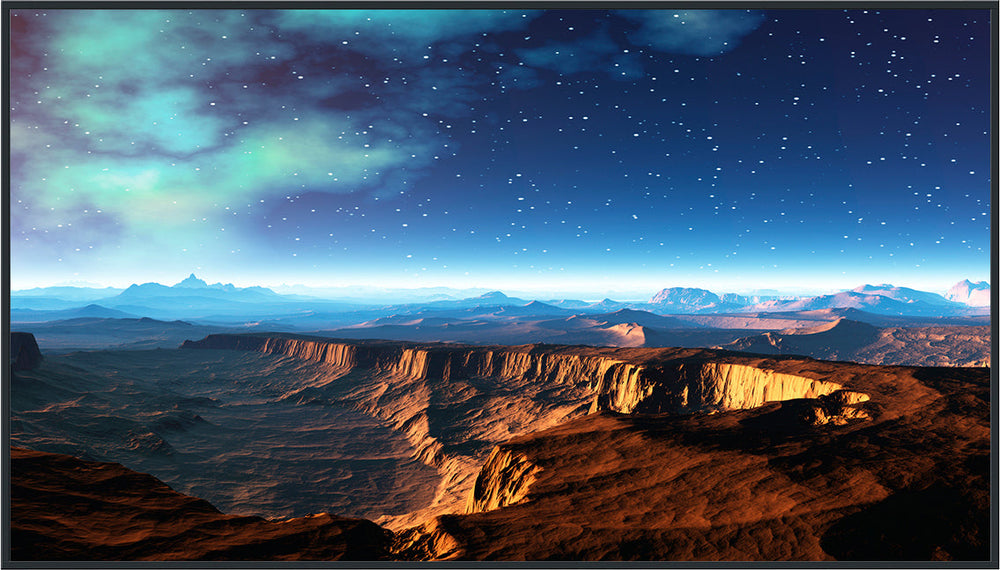

The Panasonic TH-75SQ1H is a 75-inch 4K digital signage display engineered for high-brightness environments. Featuring 1500 cd/m² luminance and 24/7 operational reliability, it ensures clear visibility in well-lit venues. Smart-Boards supplies this model across the GCC and Africa.
Designed for demanding commercial applications, the Panasonic TH-75SQ1H delivers sharp 4K resolution with a typical brightness of 1500 cd/m². This high luminance ensures images remain crisp and legible even in atriums or near large windows where ambient light is intense. The display supports HDR and BT.2020 emulation, providing deep contrast and accurate color reproduction for detailed visual content.
Built for continuous operation, this unit supports 24-hour daily use without performance degradation. It includes an Intel SDM slot for easy integration of built-in PCs or interface boards, simplifying system configuration. With DIGITAL LINK support and daisy-chain DisplayPort connectivity, it allows for cost-effective, high-quality signal transmission across multiple displays in large-scale installations.
Key features
- High Brightness Panel - Features a typical brightness of 1500 cd/m² to maintain image clarity in brightly lit commercial spaces and atriums.
- 4K Ultra HD Resolution - Delivers 3840 x 2160 pixel resolution with HDR support for detailed, true-to-life visuals and deep contrast ratios.
- Continuous Operation - Engineered for 24-hour daily runtime with high environmental reliability, suitable for constant digital signage deployments.
- SDM Expansion Slot - Includes an Intel SDM specification slot (SDM-S/SDM-L) for adding built-in PCs or specialized interface boards.
- Daisy-Chain Connectivity - Supports DIGITAL LINK and DisplayPort daisy-chaining to simplify cabling and reduce system costs for multi-display setups.
Ideal for: Suitable for corporate lobbies, university classrooms, and retail environments requiring high-brightness displays across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TH-75SQ1H
- Key features
- USB Media Player, Failover/Failback, Data Cloning, Digital Zoom, Multi display settings, Power on Screen Delay, Automatic position correction, Screen Saver, Power Management, Power save, Button Lock, Controller user level, Input search, 6-segment col
- Orientation
- Landscape, Portrait
Display
- Backlight
- Direct LED
- Brightness
- 1500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 10 ms
System
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort (In × 1, Out × 1)
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB-A × 2
Camera & audio
- Audio in
- 3.5 mm audio in × 1
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Remote Control, Batteries (AAA size) × 2, AC cord (2.0 m), Clamper × 3, USB memory cover × 1, SLOT adapter × 1, Operating Instruction Book, Sensor Module × 1, 4-pole micro plug cable (3 m) × 1, Double-sided tape × 2
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 720 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1684 x 962 x 96 mm
- Weight
- 42.2 kg
- Shipping dimensions
- 1870 x 1143 x 280 mm
- VESA mount
- 600 x 400 mm
- Bezel size
- 14.9 mm
- Input voltage
- 110–127 V AC, 220–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the typical brightness of the Panasonic TH-75SQ1H?
The Panasonic TH-75SQ1H has a typical brightness of 1500 cd/m². This high luminance ensures the screen remains visible and vibrant in well-lit areas, such as near windows or in bright commercial atriums, preventing washout during daytime use.
Can this display operate continuously?
Yes, the TH-75SQ1H is designed for 24-hour daily operation. It is built to maintain high environmental reliability and consistent performance during extended digital signage deployments in commercial or public venues without overheating or performance loss.
Does the Panasonic TH-75SQ1H support built-in computing?
Yes, it features an Intel SDM specification slot compatible with SDM-S and SDM-L sizes. This allows for the direct installation of built-in PCs or interface boards, enabling standalone signage functionality without requiring external media players or computers.
Which countries can receive the Panasonic TH-75SQ1H?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery is handled through established logistics partners at competitive rates, with availability and lead times confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For orders in other countries, the display is delivered ready for local setup. Smart-Boards offers remote guidance to assist local teams with the installation and configuration process effectively.
What connectivity options are available?
The unit includes two HDMI inputs, one DisplayPort input and output, a DVI-D port, and an RJ45 LAN port for PJLink control. It also features a serial RS-232C port and two USB ports for media playback and peripheral connections.
Can the display be mounted vertically?
Yes, the Panasonic TH-75SQ1H supports both landscape and portrait orientations. It is VESA compliant with a 600 x 400 mm wall-hanging pitch and allows for tilting angles of 0-20 degrees forward or backward for optimal viewing adjustments.
