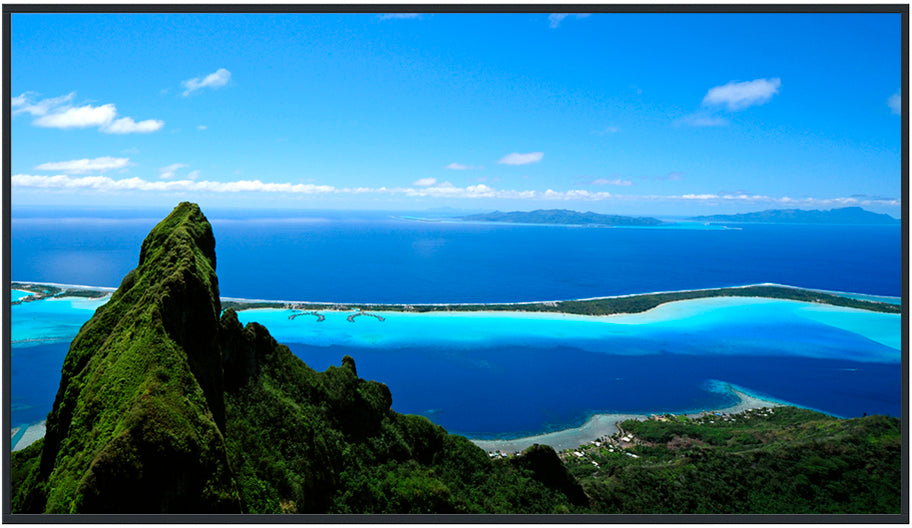

The Panasonic TH-55SQ1 is a 55-inch 4K UHD LCD display designed for commercial signage and meeting room applications. It features 500 cd/m² brightness, a 1100:1 contrast ratio, and 24/7 operational reliability. Smart-Boards supplies this unit across the GCC and Africa with quotation-based pricing and regional logistics support.
This 55-inch display delivers 3840 x 2160 resolution with 12-Axis Color Management for accurate color reproduction. It supports HDR (PQ/HLG) and BT.2020 emulation, ensuring vivid visuals for digital signage or close-viewing meeting spaces. The unit operates continuously at 500 cd/m² brightness with a 1100:1 contrast ratio, housed in a 74 mm depth chassis suitable for wall mounting or tilt installation.
The TH-55SQ1 includes dual HDMI, DisplayPort, DVI-D, and PC inputs, plus an Intel SDM slot for interface expansion. Built-in 20 W speakers and external audio output support standalone use. Operating 24/7 in 0–40 °C environments, it suits control rooms and public venues. Smart-Boards provides installation within the UAE and delivery-ready units for other countries, with remote guidance for local setup.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with 500 cd/m² brightness and 1100:1 contrast for detailed imagery.
- Color Accuracy - Features 12-Axis Color Management and BT.2020 emulation for faithful reproduction of digital content.
- Connectivity Options - Includes dual HDMI (HDCP 2.2), DisplayPort, DVI-D, PC, and Intel SDM slot for versatile system integration.
- 24/7 Reliability - Designed for continuous operation in public spaces, meeting rooms, and control environments.
- Installation Flexibility - Supports wall mounting with 400 x 400 mm VESA pitch and tilting angles for optimal viewing orientation.
Ideal for: Suitable for retail signage, corporate meeting rooms, and control rooms, this display supports buyers across the GCC and Africa seeking durable, high-clarity visual solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TH-55SQ1
- Key features
- USB Media Player, Failover/Failback, Data Cloning, Digital Setting, Multi display settings, Portrait Setting, Power on Screen Delay, Auto setting, Screen Saver, Power Management, Power save, Button Lock, Controller user level, Input search, 6,12-segm
- Orientation
- Landscape, Portrait
Display
- Backlight
- Edge LED
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,100:1
- Panel technology
- IPS
- Response time
- 8 ms
System
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort (In × 1, Out × 1)
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB-A × 2
- VGA input
- VGA In × 1
Camera & audio
- Audio in
- 3.5 mm audio in × 2
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- In the box
- Remote Control, Batteries (AAA size) × 2, Clamper × 3, USB memory cover × 1, SLOT adapter × 1, AC cord (approx. 2.0 m), CD-ROM / User Manual, Operating Instruction Book
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 300 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1240 x 714 x 74 mm
- Weight
- 25.5 kg
- VESA mount
- 400 x 400 mm
- Bezel size
- 12.2 mm (T), 15.8 mm (B), 12.7 mm (L/R)
- Input voltage
- 110–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Panasonic TH-55SQ1 still in production?
No, this model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model in the SQ1 series for your project.
Which countries receive delivery?
We ship to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and selected African countries via established logistics partners, ensuring cost-effective delivery to your site.
Is installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed.
What are the display dimensions?
The screen measures 1240 x 714 x 74 mm (W x H x D), weighing 25.5 kg. Bezel width ranges from 12.2 mm to 15.8 mm depending on the edge.
Does it support 24/7 operation?
Yes, the TH-55SQ1 is rated for 24-hour daily operation, making it suitable for continuous use in public signage, control rooms, and busy commercial environments.
What audio capabilities are built-in?
It includes 20 W built-in speakers and a 30 W external speaker output. A stereo mini jack audio out is also available for variable volume control.
What connectivity ports are available?
Inputs include 2x HDMI, 1x DVI-D, 1x PC, and 1x DisplayPort. It also features RS232C, LAN, and two USB ports for peripheral connection and control.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
