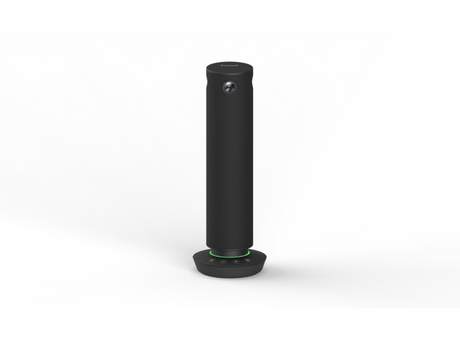

The Panasonic PressIT360 TY-CSP1 is an all-in-one video conferencing speakerphone featuring a 360-degree camera and seven-microphone array. It provides 1920 x 1080 video and audio pickup up to 5 metres via a single USB-C connection. Smart-Boards supplies this unit for hybrid meeting spaces across the GCC and Africa.
Designed for hybrid work environments, this conference camera speakerphone integrates high-performance optical and acoustic components into a single compact unit. The device utilises four 1/2.7-inch 5 MP CMOS sensors to capture a full 360-degree horizontal field of view. It supports video resolutions of 1280 x 720 and 1920 x 1080 at 30 fps, ensuring clear visual transmission for remote participants regardless of their position in the room.
Audio clarity is maintained through a seven-unit MEMS microphone array with beamforming technology, covering a pickup range of up to 5 metres. The system includes echo and noise cancellation to eliminate common conferencing issues like howling. Power is delivered via USB Type-C (5 V / 3 A) or an AC adaptor, with speaker output reaching 3 W when using external power. The unit connects to Windows 10/11 or macOS systems through a single USB 2.0 port.
Key features
- 360-Degree Visual Coverage - Four 5 MP CMOS sensors provide a full 360-degree horizontal view, capturing participants in 1920 x 1080 resolution.
- Advanced Audio Array - A seven-unit MEMS microphone array with beamforming captures voice clearly up to 5 metres from the device.
- Single USB-C Connectivity - Video and audio data transmit to PCs via one USB Type-C cable, simplifying setup for Windows and macOS.
- Multiple Video Modes - Switch between Dual View, Single View, Multi View, Surround View, and Stable View to optimise the camera layout.
- Compact Design - The black unit measures Ø 285 mm in diameter and weighs approximately 950 g, fitting standard conference tables.
- LED Status Indication - An LED ring displays operating status, including microphone mute state and video mode selection.
- Mounting Flexibility - Includes a Noble Wedge lock slot for secure mounting on surfaces with a thickness of 11 mm or less.
Ideal for: Suitable for medium to large conference rooms in schools, universities, ministries, NGOs, and companies across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TY-CSP1
- Product type
- Conference Camera Speakerphone
- Key features
- 360-degree camera, 7-microphone array, 5 m pickup, echo and noise cancelling, five video modes, single USB-C connection, LED status ring
- Lock type
- Noble Wedge lock slot (mounting surfaces of 11 mm or less)
- Sensitivity
- -35 dBFS
- Signal-to-noise ratio
- 68.75 dBA
Display
- Colour
- Black
System
- Operating system
- Windows 10
Connectivity
- USB-C
- USB Type-C × 1 (USB 2.0)
Camera & audio
- Camera
- 4 camera units, 1/2.7-inch 5 MP CMOS sensors, 360° horizontal coverage, 1280 x 720 and 1920 x 1080 at 30 fps
- Speaker output
- 1.5 W (USB Type-C power) or 3 W (AC adaptor)
- Audio
- USB Audio Class 1.0 (UAC 1.0)
- Microphone type
- MEMS microphone array
- Microphone
- 7-unit MEMS microphone array with beam forming
- Pickup range
- Up to 5 m (16.4 ft)
Physical & warranty
- Operating humidity
- 20% to 80% (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 11 W (when outputting video)
- Dimensions
- Ø 285 mm (diameter)
- Weight
- Approx. 950 g
- Power source
- USB Type-C (5 V / 3 A) or AC adaptor (DC 12 V / 2 A)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What countries does Smart-Boards deliver to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery costs are minimised through established logistics partners, and specific timelines are confirmed on your quotation based on order size and destination.
Is installation included outside the UAE?
On-site installation is provided within the UAE only. For other countries, the device is delivered ready for local setup. Remote guidance is available to assist local teams with the configuration and connection process during the delivery phase.
Does the TY-CSP1 require separate power for the camera?
No, it uses a single USB Type-C connection. The device can be powered by a PC USB-C port supplying 5 V / 3 A, or by the included AC adaptor for full speaker output of 3 W. Without the AC adaptor, speaker output is limited to 1.5 W.
What operating systems are supported?
The PressIT360 application supports Windows 10, Windows 11, and macOS. It functions as a USB Audio Class 1.0 device, allowing plug-and-play compatibility with standard web conferencing software on these platforms.
How does the microphone handle noise?
The seven-unit MEMS array uses beamforming and echo cancellation to isolate voices. It covers a 360-degree area with a pickup range of 5 metres, automatically adjusting volume to ensure clear transmission and reduce background interference.
Can I see who is speaking in the remote view?
Yes, the Multi View mode displays a green bar above the speaker screen on the remote PC. This helps identify the active speaker clearly. The Single View mode automatically focuses on the person speaking based on volume and utterance length.
What is the maximum operating temperature?
The device operates within a temperature range of 0 to 40 °C and humidity levels of 20% to 80% (non-condensing). This makes it suitable for standard indoor conference environments in the GCC and African regions.
