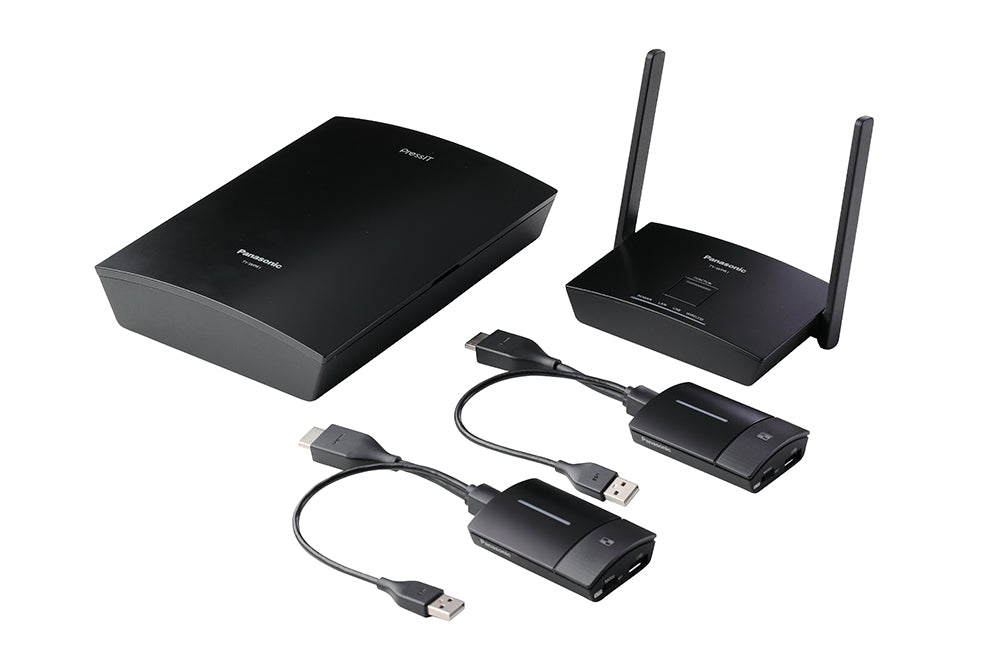

The Panasonic PressIT TY-WPS1 is a wireless presentation system enabling screen sharing from mobile devices to displays without software installation. Supporting up to 4 simultaneous screens in Full HD and 32 transmitters, it facilitates secure collaboration in GCC and African educational and corporate environments.
This system enables immediate collaboration by connecting transmitters to HDMI, USB-A, or USB-C ports on participant devices. It supports up to 32 transmitters simultaneously, allowing multiple users to share content. The receiver connects via HDMI and USB power to displays or projectors, eliminating the need for complex network configuration or driver installation.
Security is maintained through WPA2 encryption and 5 GHz band operation, ensuring stable data transmission up to 867 Mbps. The compact receiver mounts directly to displays, while transmitters feature built-in magnets for easy storage. Multi Mode allows four screens to be viewed together, and Lock Mode prevents interruptions during critical presentations in classrooms or boardrooms.
Key features
- Multi-Screen Sharing - Displays up to four screens simultaneously in Full HD resolution for efficient comparison and discussion.
- High Capacity - Supports connection of up to 32 transmitters for large classrooms, seminars, and group collaborations.
- Secure Connection - Utilizes 5 GHz Wi-Fi with WPA2 encryption to protect data during wireless transmission.
- Easy Management - Transmitters include built-in magnets for secure attachment to metal surfaces and easy retrieval.
- Lock Mode - Activates a lock to prevent other users from interrupting the current presenter's screen share.
Ideal for schools, universities, and corporate boardrooms in the GCC and Africa requiring secure, software-free screen sharing for multiple participants.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TY-WPS1
- Product type
- Wireless Presentation System
- Key features
- One-button screen sharing, up to 32 transmitters, Multi Mode (4 screens), Lock Mode, Full HD 60 fps, HDMI-CEC, WPA2 encryption, 5 GHz wireless
- Compatibility
- iOS, iPadOS and Android (dedicated app); HDMI-CEC
- Data rate
- Up to 867 Mbps (receiver box); 433 Mbps (transmitters)
- Frequency band
- 5 GHz (5,150 to 5,250 MHz)
- Security features
- WPA/WPA2
Display
- Resolution
- Full HD
System
- Operating range
- Up to 30 m (good line-of-sight conditions)
- Storage conditions
- -20 to 60 °C, 20% to 80% RH (no condensation)
Connectivity
- Wi-Fi
- IEEE 802.11a/n/ac, 5 GHz band (36, 40, 44, 48 channels)
- Ports
- Receiver: HDMI, USB-A (female), RJ45 (LAN); Transmitter: HDMI/USB-A or USB-C (male)
- Connectivity options
- Up to 32 transmitters; up to 4 screens on display
Physical & warranty
- Mounting type
- Receiver on display or projector; transmitter has built-in magnet
- Operating humidity
- 20% to 80% RH (no condensation)
- Operating temperature
- 0 to 35 °C (receiver box and transmitters)
- Power consumption
- 10 W (receiver); 4.5 W (transmitter)
- Dimensions
- Receiver (box) 120 x 26 x 81 mm (W x H x D, excluding antenna)
- Weight
- Receiver (box) 181 g; transmitter (HDMI/USB) 110 g
- Power source
- DC 5 V/2 A (receiver box); DC 5 V/0.9 A (transmitter)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can the Panasonic TY-WPS1 connect to mobile devices?
Yes. iOS, iPadOS, and Android devices connect via a dedicated app for easy screen sharing. The system also supports direct HDMI or USB-C connections for non-mobile devices without requiring app installation.
Does this system require software installation?
No. The receiver connects directly to the display via HDMI and USB power. Transmitters connect to source devices via HDMI or USB. No special drivers or software installation is needed for basic operation.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Delivery costs are minimized through established logistics partners, and times are confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup. Remote guidance is available to assist local teams with configuration and mounting if needed.
What is the maximum resolution supported?
The system supports 1920 x 1080 at 60p (Full HD) and up to 3840 x 2160 at 30p. The receiver box processes signals via HDMI to ensure high-quality, low-latency image transmission.
How many screens can be displayed simultaneously?
The TY-WPS1 supports Multi Mode, which displays up to four separate screens simultaneously. This allows participants to compare materials or share multiple inputs on a single display wall or projector.
What power source does the receiver use?
The receiver box uses DC 5 V/2 A power. It can draw power via USB from compatible displays or projectors that support 5V 2A USB output, or via a separate power adapter if the display does not provide sufficient power.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
