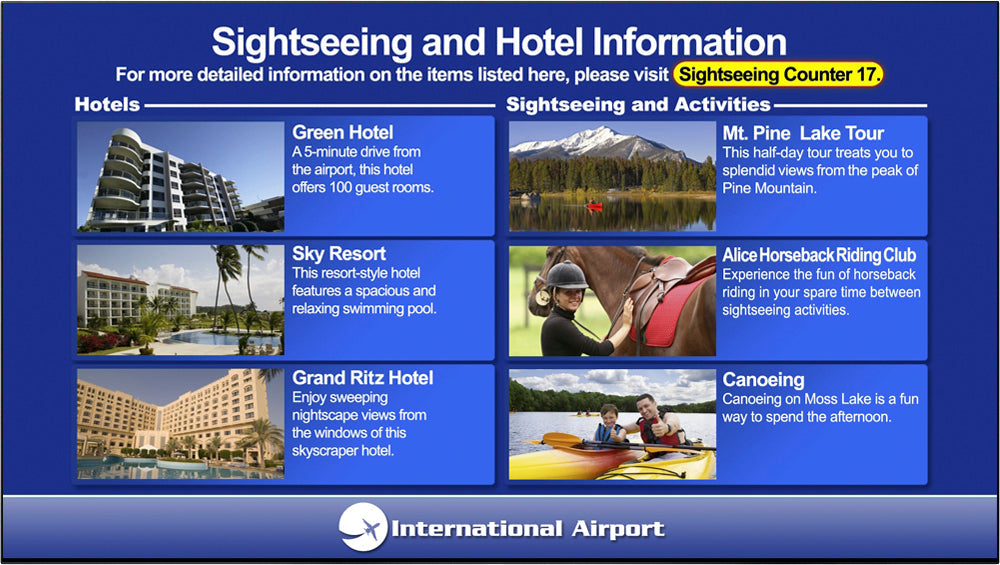

The Panasonic TH-55LFV9 is a 55-inch video wall display designed for mission-critical environments requiring 24/7 reliability. Featuring a 3.5 mm narrow bezel and 500 cd/m² brightness, it supports both MST and SST multi-screen configurations. Smart-Boards supplies this unit across the GCC and Africa, offering verified logistics and installation services in the UAE.
This 55-inch panel delivers 1920 x 1080 resolution with a contrast ratio of 1200:1, enhanced by local dimming for deep blacks. The Advanced Anti-Glare surface treatment reduces reflections, ensuring legibility in brightly lit monitoring rooms or public facilities. With a viewing angle of 178 degrees horizontally and vertically, the display maintains consistent image quality from multiple positions, making it suitable for control rooms and large commercial spaces.
The TH-55LFV9 supports both Multi Stream Transport (MST) and Single Stream Transport (SST) for 4K output in multi-screen layouts. MST allows dot-by-dot display in a 2x2 configuration, while SST supports enlarged displays via DisplayPort daisy-chaining, which can connect up to 25 units. Failover and failback safeguards switch between two system inputs to prevent interruptions, ensuring continuous operation for transportation signage or 24/7 retail environments.
Key features
- Narrow Bezel Design - Bezel-to-bezel distance is reduced to 3.5 mm (0.14 inches), creating near-invisible gaps in large video wall arrays.
- 24/7 Operational Reliability - Built for continuous use, this display supports 24 hours of operation daily in landscape or portrait orientation without affecting lifespan.
- Anti-Glare Surface Processing - Advanced Anti-Glare (AAG) treatment diffuses light from sun and artificial sources to suppress reflections and maintain high legibility.
- Dual Multi-Screen Modes - Supports MST for 2x2 4K dot-by-dot display and SST for single-stream 4K enlargement via DisplayPort daisy-chaining.
- Connectivity Options - Includes two HDMI inputs, one DVI-D input, DisplayPort in/out, VGA, and RS-232C serial control for versatile integration.
Ideal for: Suitable for control rooms, transportation hubs, and retail signage, this display serves buyers across the GCC and Africa seeking reliable multi-screen solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TH-55LFV9
- Orientation
- Portrait / Landscape
Display
- Brightness
- 500 cd/m²
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Response time
- 8 ms
System
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort (In × 1, Out × 1)
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 2
- Serial port
- RS-232 × 1
- USB ports
- USB-A 2.0 × 1
- VGA input
- VGA × 1 (mini D-sub 15-pin)
Camera & audio
- Audio in
- 3.5 mm audio in × 1
- Audio out
- 3.5 mm audio out × 1
- Speaker output
- 2 × 10 W
Physical & warranty
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 185 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1213.4 x 684.2 x 95 mm
- Weight
- 27 kg
- VESA mount
- 400 x 400 mm
- Bezel size
- 3.5 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Panasonic TH-55LFV9 available for purchase?
This model is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model from the Panasonic lineup to meet your technical requirements.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations through established logistics partners at competitive costs.
Does Smart-Boards offer on-site installation?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance provided if needed.
What is the bezel width of this video wall display?
The bezel-to-bezel distance is 3.5 mm (0.14 inches). This measurement refers to the combined width of adjacent displays and excludes the physical gap between them.
Can this display operate in portrait mode?
Yes, the TH-55LFV9 supports portrait orientation without affecting color accuracy, brightness, or operational life, allowing flexible installation in vertical spaces.
How does the anti-glare feature work?
The panel uses Advanced Anti-Glare processing with a concave/convex surface to diffuse external light. This suppresses reflections, maintaining image legibility in bright environments.
What is the power consumption of this unit?
The on-mode average power consumption is 103 W, with a typical consumption of 185 W. In standby conditions, power usage is approximately 0.5 W.
