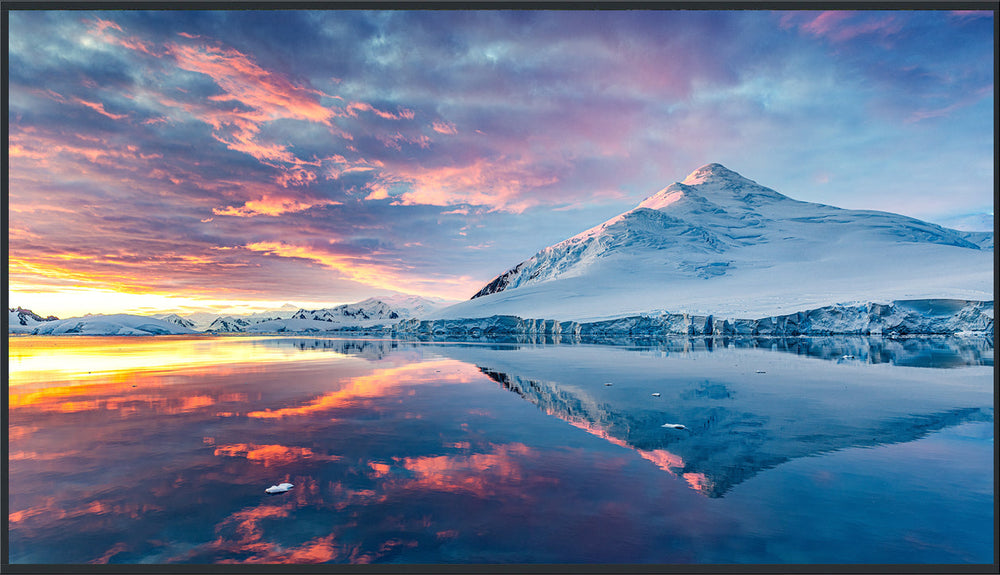

The Panasonic TH-55EQ3 is a 55-inch 4K UHD digital signage display designed for high-visibility environments. Featuring 500 nits brightness and an anti-glare panel, it delivers clear visuals for conference rooms and classrooms across the GCC and Africa.
This Panasonic EQ3 Series unit provides 4K UHD resolution with 500 cd/m² brightness and a 25% haze anti-glare finish. The panel maintains clarity in bright rooms, while the 178-degree viewing angle ensures consistent image quality from any position. Its 5,000:1 contrast ratio and 6.5 ms response time support detailed content without motion blur, making it suitable for information displays and meeting spaces.
Installation flexibility is central to the TH-55EQ3 design, supporting landscape or portrait orientations with up to 20 degrees of tilt. It connects via three HDMI inputs, PC input, and a USB Type-A port for media playback. Remote management is enabled through RS-232C and LAN with PJLink support. Smart-Boards supplies this display for multi-site rollouts across the GCC and Africa, with availability confirmed on request.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with 500 nits brightness and a 25% haze anti-glare panel for visibility in bright environments.
- Flexible Connectivity - Equipped with three HDMI 2.2 inputs, PC input, audio ports, and a USB Type-A port for direct media playback without a PC.
- Remote Management - Supports external control via RS-232C serial port and LAN using the PJLink protocol for efficient system integration.
- Adaptable Mounting - Supports VESA 400 x 400 mm wall mounting with up to 20 degrees forward tilt for optimal viewing angles in any setup.
- Built-in Speakers - Includes integrated 20 W stereo speakers for basic audio output, reducing the need for external sound systems in small rooms.
Ideal for: Suitable for conference rooms, classrooms, and retail digital signage, this display suits buyers across the GCC and Africa seeking reliable, high-brightness visuals.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Tilt range
- 0 to 20 degrees forward (landscape)
- Model
- TH-55EQ3
- Product type
- Professional Display
- Key features
- 4K UHD resolution, 500 nits, anti-glare panel (haze 25%), portrait or landscape use, USB media playback, three HDMI inputs, PJLink LAN control, built-in 20 W speakers
- Orientation
- Landscape / Portrait
- Protocols
- PJLink
Display
- Brightness
- 500 cd/m²
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1
- Response time
- 6.5 ms
System
- Operating hours
- 18 hours per day
Connectivity
- Ethernet (RJ45)
- 10BASE-T / 100BASE-TX (RJ45)
- HDMI input
- 3 (HDCP 2.2)
- Serial port
- RS-232C (D-sub 9-pin)
- USB ports
- USB Type-A × 1 (DC 5 V / 2 A, USB 2.0)
- Ports
- HDMI In × 3, PC In × 1, Audio In × 1, Audio Out × 1, LAN × 1, USB Type-A × 1, RS-232C × 1
- Connectivity options
- RS-232C, LAN (PJLink)
Camera & audio
- Speaker output
- 20 W (10 W + 10 W)
Physical & warranty
- Mounting type
- VESA wall mount, M6 screws, 18 mm deep
- Operating humidity
- 20% to 80% (no condensation)
- Operating temperature
- 0 to 40 °C (up to 1,400 m altitude)
- Power consumption
- 142 W
- Standby power
- 0.5 W (approx.)
- Weight
- 15.6 kg
- VESA mount
- 400 x 400 mm
- Bezel size
- 13.9 mm (right side)
- Input voltage
- 110–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Panasonic TH-55EQ3 suitable for bright conference rooms?
Yes. The 500 nits brightness and 25% haze anti-glare panel ensure clear visibility even in well-lit environments, suppressing reflected glare from windows or artificial lighting.
Can this display be used for digital signage?
Yes. It supports 18 hours per day duty cycle and includes a USB Type-A port for direct 4K media playback, allowing content display without a connected PC.
Which countries can this product be delivered to?
Smart-Boards ships to all GCC countries and selected African nations. Delivery times vary by country and order size, and are confirmed in the quotation.
Is on-site installation available outside the UAE?
No. On-site installation is provided only within the UAE. Other countries receive the unit ready for local setup, with remote guidance available if needed.
How is the display controlled remotely?
It supports external control via the RS-232C serial port and LAN connection using the PJLink protocol for efficient management in multi-display setups.
What mounting options are supported?
The display supports VESA 400 x 400 mm mounting. It allows up to 20 degrees of forward tilt and can be installed in landscape or portrait orientation.
Does it have built-in audio?
Yes. The unit includes built-in 20 W speakers (10 W + 10 W) for basic audio needs, with an audio output port for external speakers if required.
