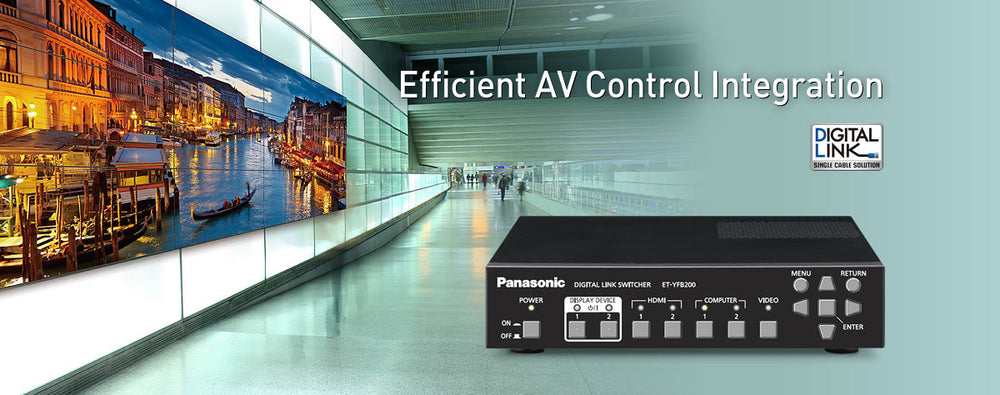

The Panasonic ET-YFB200G is a DIGITAL LINK switcher designed to distribute uncompressed HD video, audio, and control signals to two displays. It supports transmission distances up to 150 meters over CAT5e cabling. Smart-Boards supplies this signage accessory to educational and corporate clients across the GCC and Africa.
This unit manages input from HDMI, computer, and composite sources, outputting them via two DIGITAL LINK terminals. It enables daisy-chain connections for multi-display setups or edge-blending projects in auditoriums. The device features in-browser control for remote management and includes Early Warning Software for system monitoring. Power consumption is 32 W, dropping to 0.15 W in standby.
Physical installation is supported by included rack mounting brackets for EIA standard server racks. The compact chassis measures 210 x 44 x 250 mm and weighs 1.3 kg. It accepts a DC 16 V power source via the supplied AC adaptor. Connectivity includes RS-232C, parallel remote, and LAN ports for integration with existing AV infrastructure. Smart-Boards provides live demonstrations and quote-based pricing for bulk orders.
Key features
- Dual Output Distribution - Two DIGITAL LINK outputs deliver uncompressed HD signals to two projectors or displays simultaneously.
- Long Distance Transmission - Transmits video and audio up to 150 meters over a single CAT5e (STP) or higher cable.
- Input Connectivity - Accepts signals from two HDMI inputs, two computer RGB inputs, and one composite video input.
- Remote Management - Allows in-browser control from PC or tablet and supports PJLink LAN protocols for system integration.
- Rack Mounting Ready - Comes with server rack brackets, countersunk screws, and legs for EIA standard rack installation.
Ideal for: Suitable for auditoriums, lecture theaters, and multi-room installations requiring dual display output, serving buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- ET-YFB200G
- Product type
- DIGITAL LINK Switcher
- Key features
- Two DIGITAL LINK outputs, up to 150 m over CAT5e, daisy-chain, in-browser control, DVI-D monitor output, PJLink LAN, Early Warning Software, server rack mounting
- Controls
- RS-232C serial (3-pin terminal block), parallel remote, LAN, in-browser control
- Protocols
- PJLink
Connectivity
- Ethernet (RJ45)
- 10BASE-T / 100BASE-TX (RJ-45)
- HDMI input
- 2
- Outputs
- DIGITAL LINK Out × 2, DVI-D Out × 1, Audio Out × 1
- Ports
- HDMI In × 2, COMPUTER In × 2 (RGB), Video In × 1 (composite), Audio In × 3, Audio Out × 1, DIGITAL LINK Out × 2, DVI-D Out × 1, RS-232C × 1, Parallel Remote × 1, LAN × 1
- Connectivity options
- DIGITAL LINK (HDBaseT-based), RS-232C, parallel remote, LAN
Camera & audio
- Audio out
- Stereo mini jack (M3), variable
Physical & warranty
- Mounting type
- Server rack (EIA), brackets included
- In the box
- AC adaptor, 3 power cords (2 m), rack mounting brackets, countersunk screws, 4 legs, terminal block plug
- Operating humidity
- 20% to 80% (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 32 W (0.15 W with power off)
- Dimensions
- 210 x 44 x 250 mm (W x H x D)
- Weight
- 1.3 kg
- Cable standard
- CAT5e (STP) or higher, up to 150 m (Long Reach Mode, applicable models)
- Power source
- DC 16 V (AC adaptor supplied)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this device support daisy-chain connections?
Yes. The ET-YFB200G supports daisy-chain (cascade) connections, allowing you to distribute digital signals to multiple display devices beyond the two primary outputs.
What is the maximum cable length for DIGITAL LINK output?
The switcher supports long-distance transmission of up to 150 meters (492 ft) using a single CAT5e (STP) or higher cable for both video and audio signals.
Which countries does Smart-Boards deliver to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery costs are optimized through established logistics partners.
Is on-site installation included for orders outside the UAE?
No. On-site installation is available within the UAE only. International orders are delivered ready for local setup, with remote guidance provided if needed.
Can I control the switcher remotely?
Yes. You can use in-browser control from a PC or tablet. It also supports RS-232C serial, parallel remote, and LAN commands for system integration.
Does it have a DVI-D output?
Yes. The device includes one DVI-D output, which can be used to connect an extra display or monitor outgoing signals from a connected PC.
What power supply does the ET-YFB200G require?
It requires a DC 16 V power source. An AC adaptor and three 2-meter power cords are included in the box for immediate connection.
