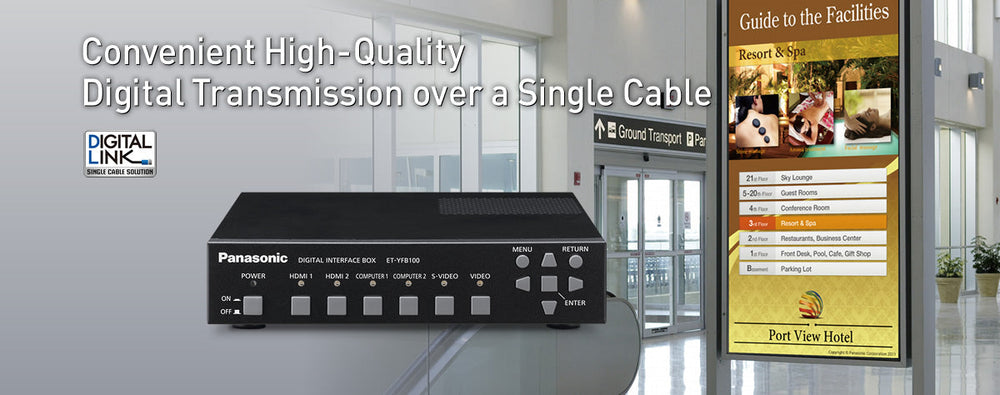

The Panasonic ET-YFB100G is a digital interface box designed for professional signage and AV installations across the GCC and Africa. It consolidates video, audio, and control signals into a single cable, supporting HDMI and RGB inputs for flexible connectivity in multi-site deployments.
This unit enables uncompressed HD video and audio transmission over a single CAT5e cable for up to 100 meters, simplifying cabling for permanent or ceiling-mounted setups. With two HDMI and two RGB inputs, it allows seamless switching between source devices, while automatic PC scaling ensures optimal resolution output for connected displays.
Designed for robust operation, the ET-YFB100G supports both server rack and countertop mounting, making it suitable for various installation environments. It features Eco mode to reduce power consumption when no signal is detected, along with RS-232C and LAN control for remote management. The unit includes brackets, legs, and an AC adaptor for immediate deployment.
Key features
- Single Cable Transmission - DIGITAL LINK output transmits video, audio, and control signals over CAT5e cable up to 100 m.
- Multi-Input Connectivity - Features two HDMI and two RGB (D-sub 15-pin) inputs for versatile source integration.
- Remote System Control - Allows monitoring and management via RS-232C serial port and LAN Ethernet connection.
- Flexible Mounting Options - Includes brackets and legs for secure server rack or countertop installation.
- Power Efficiency - Consumes 16 W during operation and 0.2 W in power-off mode with Eco mode enabled.
Ideal for: Suitable for schools, universities, ministries, NGOs, and companies across the GCC and Africa requiring reliable signal distribution for digital signage and AV systems.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- ET-YFB100G
- Product type
- Digital Interface Box
- Key features
- DIGITAL LINK output, up to 100 m over CAT5e, two HDMI and two RGB inputs, automatic PC scaling, Eco mode, closed caption support, rack or countertop mounting, RS-232C and LAN control
- Controls
- RS-232C serial, parallel remote, LAN
Connectivity
- Ethernet (RJ45)
- 10BASE-T / 100BASE-TX (RJ-45)
- HDMI input
- 2
- Ports
- HDMI In × 2, RGB (D-sub 15-pin) In × 2, Composite In × 1, S-Video In × 1, Audio In × 1, Audio Out × 1, DIGITAL LINK Out × 1, RS-232C × 1, Parallel Remote × 1, LAN × 1
- Connectivity options
- DIGITAL LINK (HDBaseT-based), RS-232C, parallel remote, LAN
Camera & audio
- Audio out
- Stereo mini jack (M3), variable
Physical & warranty
- Mounting type
- Server rack (EIA) or countertop, with legs
- In the box
- AC adaptor, 3 power cords (2 m), rack and countertop brackets, screws, 4 legs
- Operating humidity
- 20% to 80% (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 16 W (0.2 W with power off)
- Dimensions
- 210 x 44 x 250 mm (W x H x D)
- Weight
- 1.15 kg (without AC adaptor)
- Cable standard
- CAT5e (STP) or higher, up to 100 m
- Power source
- DC 16 V (AC adaptor supplied)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum distance for signal transmission?
The ET-YFB100G supports DIGITAL LINK output up to 100 meters using CAT5e (STP) or higher cable standards. This allows flexible placement of displays relative to the control source in large venues.
Does the unit support automatic input switching?
Yes, the device can be configured to automatically distinguish input signals and adjust the output angle of view. Input selection can also be managed via the connected Panasonic display's remote control if compatible.
Which countries in the GCC and Africa does Smart-Boards supply?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations through established logistics partners at competitive rates.
Is on-site installation included outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance available from our Dubai office to assist with configuration.
What is included in the box for installation?
The package contains the ET-YFB100G unit, AC adaptor, three 2-meter power cords, rack and countertop brackets, screws, and four mounting legs for immediate setup in various environments.
Can the device operate in high-temperature environments?
The unit is rated for operating temperatures between 0°C and 40°C. Ensure the installation environment stays within this range to maintain reliable performance for your AV infrastructure.
How is pricing determined for this accessory?
Pricing is by quotation only. Contact our team for quote-only pricing with education, government, bulk, and tender options. Delivery times depend on the country and order size.
