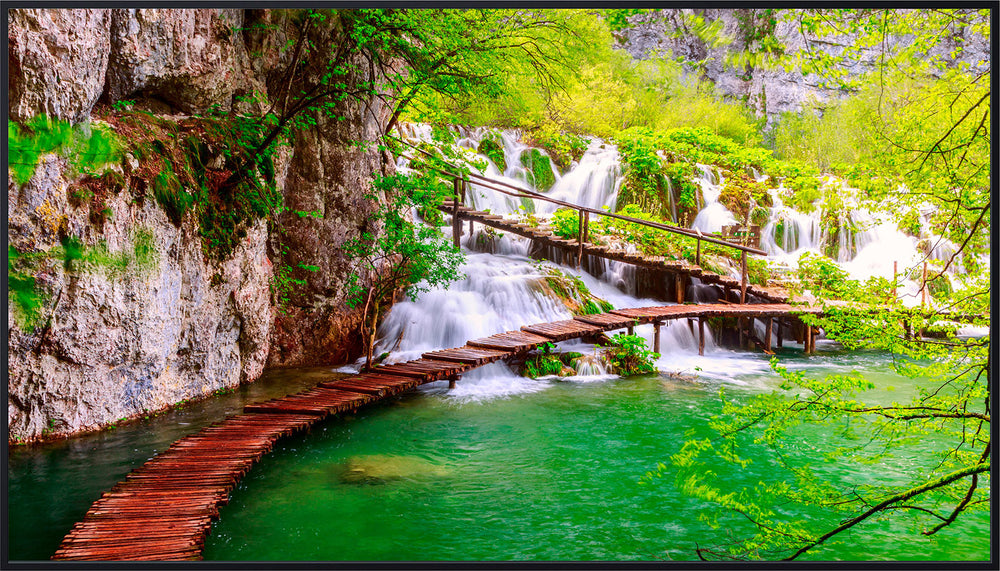

The Panasonic TH-86CQE2 is an 86-inch class 4K UHD digital signage display designed for corporate and educational environments. It features 400 cd/m² brightness, built-in Android OS, and supports 16 hours/day operation. Smart-Boards supplies this model across the GCC and Africa with expert logistics and support.
This 86-inch class panel delivers 3840 x 2160 resolution with 400 cd/m² brightness and a 1200:1 contrast ratio, ensuring clear visibility in bright rooms. The anti-glare low reflection surface (Haze 3%) maintains image quality from 178° viewing angles. Built-in Android OS allows standalone digital signage operation without a set-top box, while Wi-Fi dongle support enables wireless content display from PCs or Android devices.
Installation flexibility is provided through landscape or portrait orientation options and a 0-20 degree tilt angle. The unit weighs approximately 62.9 kg and fits standard 600 x 400 mm wall mounts. Connectivity includes four HDMI 2.2 inputs, USB-C with DisplayPort Alternate mode, and RS-232C/LAN for network control. It operates on AC 220-240 V in the GCC, consuming 225 W in natural picture mode, and includes a 24 W built-in speaker.
Key features
- 4K UHD Clarity - The 85.60-inch panel provides 3840 x 2160 resolution with 400 cd/m² brightness for high visibility in well-lit spaces.
- Standalone Android OS - Built-in Android OS enables digital signage operation without external PCs, supported by Wi-Fi for wireless content display.
- Versatile Connectivity - Features four HDMI™ inputs, USB-C with DisplayPort Alternate mode, and RS-232C/LAN for reliable network control and integration.
- Flexible Mounting - Supports landscape or portrait orientation with a 0-20 degree tilt angle, fitting 600 x 400 mm wall mounts for easy installation.
- Durable Operation - Designed for 16 hours/day continuous use with a 15.3mm bezel and anti-glare low reflection surface for clear viewing angles.
Ideal for: Corporate meeting rooms, educational classrooms, and information displays across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot (SDHC/SDXC)
- Model
- TH-86CQE2
- Key features
- TV tuner (ATSC), Input search, Multi display settings, Power Management (HDMI), Power save, Button Lock, Controller user level, Dynamic backlight control, Timer setting, PJLink, Image settings, USB Media Player, Memory Viewer, Built-in memory functio
- Orientation
- Landscape, Portrait
Display
- Backlight
- Edge LED
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° (H) / 178° (V)
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
System
- Operating hours
- 16/7
Connectivity
- Bluetooth
- Bluetooth 5.1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 4
- Serial port
- RS-232 × 1
- USB-C
- USB-C × 1
- USB ports
- USB-A × 3
- Wi-Fi
- External dongle (included)
Camera & audio
- Audio out
- 3.5 mm audio out × 1, SPDIF out × 1
- Speaker output
- 24 W
Physical & warranty
- In the box
- Remote Control, Batteries (AA Size) × 2, AC cord × 1, IR sensor × 1, IR Sensor Holder × 1, Wifi Dongle × 1, USB Extension cable × 1, RS232C cable × 1, Clamper × 3, Plate for IR sensor's holder
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 235 W
- Standby power
- 0.5 W
- Dimensions
- 1929 x 1100 x 81 mm
- Weight
- 62.9 kg
- Shipping dimensions
- 2163 x 1405 x 380 mm
- VESA mount
- 600 x 400 mm
- Bezel size
- 15.3 mm
- Input voltage
- 110–120 V AC, 220–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Panasonic TH-86CQE2 suitable for bright environments?
Yes. The display features 400 cd/m² brightness and an anti-glare low reflection surface (Haze 3%), ensuring high visibility in well-lit rooms and conference spaces.
Can this display run digital signage without a set-top box?
Yes. The built-in Android OS allows the TH-86CQE2 to operate as a standalone digital signage player, with Wi-Fi support for wireless content updates from PCs or Android devices.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at the lowest possible cost.
Is on-site installation available outside the UAE?
No. On-site installation is within the UAE only. Other countries receive delivery ready for local setup, with remote guidance provided if needed.
What is the power consumption in the GCC region?
The unit operates on AC 220-240 V. Average power consumption is 225 W in Natural picture mode, with standby power at approximately 0.5 W.
Does the TH-86CQE2 support network control?
Yes. It includes RJ45 LAN compatibility with PJLink™ and RS-232C serial control, enabling simultaneous control and batch management over a network.
What is the maximum operating time for this model?
The Panasonic TH-86CQE2 is designed for 16 hours/day operation, suitable for standard business and educational schedules.
