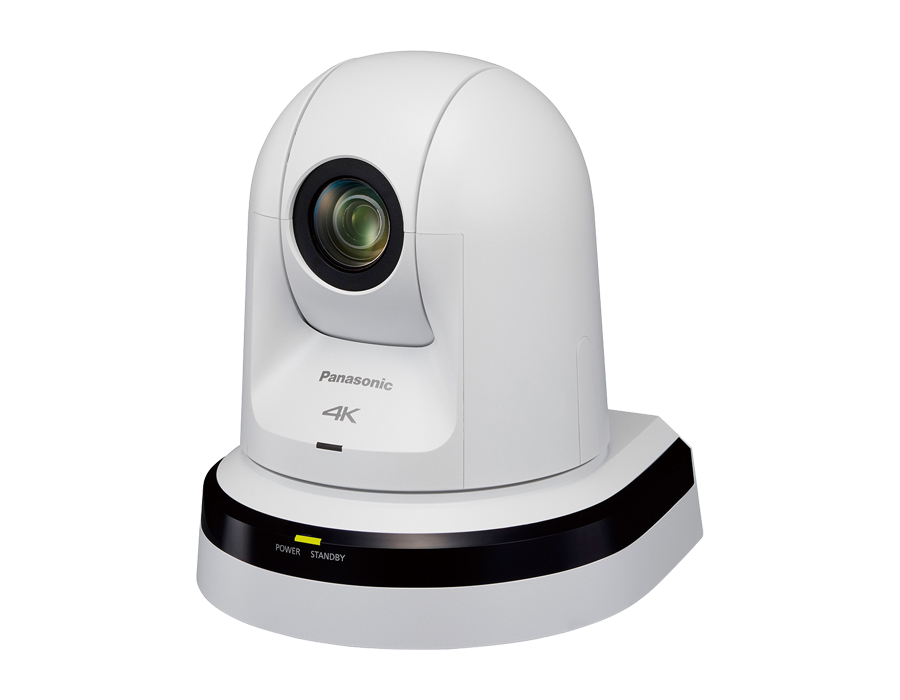

The Panasonic AW-UN70 series delivers 4K UHD video via HDMI, USB, and IP with 20x optical zoom. This compact PTZ camera supports NDI HX1 and PoE+ for simplified installation in conference rooms and lecture halls across the GCC and Africa.
This 4K integrated pan-tilt remote camera captures high-definition video using a 1/2.3-type MOS sensor and a four-drive lens system. It achieves 20x optical zoom and super resolution 30x zoom, ensuring clear imagery in large meeting spaces. The unit supports HDMI, 3G/HD-SDI, and USB Mini-B outputs, allowing flexible connection to video conferencing systems and recording devices.
Designed for professional environments, the AW-UN70 supports NDI HX1 for low-latency IP video streaming and offers PoE+ (IEEE 802.3at) power options to reduce cabling complexity. With a compact 160 x 186 x 179 mm form factor, it mounts on desktops or ceilings. Smart-Boards supplies this model to schools, ministries, and corporations across the GCC and Africa, with availability confirmed on quotation.
Key features
- 4K Video Output - Outputs 3840 x 2160 resolution via HDMI, USB, and IP transmission for high-clarity video conferencing and recording.
- Optical Zoom Lens - Features a 20x optical zoom lens with super resolution 30x zoom and hybrid image stabilizer for stable, detailed imagery.
- NDI HX1 Compatible - Supports NDI HX1 protocol for efficient high-quality video streaming over existing IP networks without additional hardware.
- PoE+ Power Support - Operates on DC 12 V or PoE+ (IEEE 802.3at), simplifying installation by delivering power and data through a single cable.
- Flexible Mounting - Compact dimensions of 160 x 186 x 179 mm allow for secure desktop placement or suspended ceiling installation.
Ideal for: Suitable for boardrooms, lecture halls, and religious venues requiring high-quality video capture, ideal for buyers across the GCC and Africa managing multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Rotation range
- Pan ±175°, tilt -30° to 90°
- SD card slot
- microSD (MP4 recording)
- Model
- AW-UN70
- Product type
- PTZ Camera
- Key features
- 4K UHD output, 20x optical zoom, pan ±175°, tilt -30° to 90°, USB UVC video, microSD recording, PoE+ or 12 V DC power, 0.7 lx minimum illumination
- Controls
- AW-RP50, AW-RP120G, AK-HRP200G
- PoE
- PoE+ (IEEE 802.3at)
- Protocols
- TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, FTP
- Speed
- Preset up to 300°/s; manual up to 90°/s
Display
- Colour
- Pearl white or metallic black
- Resolution
- 4K UHD
System
- Storage conditions
- -20 to 50 °C
Connectivity
- USB ports
- USB Mini-B × 1 (UVC video output)
- Ports
- HDMI × 1, 3G/HD-SDI (BNC) × 1, LAN (RJ-45) × 1, RS-232C × 2, RS-422 (RJ-45) × 1, USB Mini-B × 1, microSD slot × 1, G/L IN (BNC) × 1
Camera & audio
- Audio in
- Stereo mini-jack 3.5 mm (mic/line)
- Zoom
- 20x optical; super resolution 30x
Physical & warranty
- Mounting type
- Desktop or suspended (hanging)
- Operating humidity
- 20% to 90% RH (no condensation)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 1.3 A (AC adapter), 0.5 A (PoE+)
- Dimensions
- 160 x 186 x 179 mm (W x H x D)
- Weight
- 1.5 kg
- Power source
- DC 12 V adapter or PoE+ (IEEE 802.3at)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Panasonic AW-UN70 support NDI HX1?
Yes, the AW-UN70 series includes built-in NDI HX1 compatibility. This allows for high-quality video streaming over standard IP networks, reducing bandwidth usage while maintaining 4K resolution for professional conferencing environments.
Can this camera be powered via PoE?
Yes, the device supports PoE+ (IEEE 802.3at). This standard allows power delivery and data transmission over a single Ethernet cable, simplifying installation and reducing the need for local power outlets near the camera location.
What is the optical zoom capability?
The camera features a 20x optical zoom lens. It also offers super resolution 30x zoom, which combines optical zoom with digital processing to maintain image clarity when zooming in on distant subjects during presentations or meetings.
Which countries can receive this camera?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery is handled through established logistics partners to ensure cost-effective transit to your specific location.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the camera is delivered ready for local setup. Remote guidance is available to assist local technicians with mounting and configuration during the deployment process.
What remote control options are supported?
The AW-UN70 is compatible with controllers such as the AW-RP50, AW-RP120G, and AK-HRP200G. It also supports IP control via PC, Mac, and mobile terminals, allowing flexible management of pan, tilt, and zoom functions remotely.
Can the camera record video locally?
Yes, the unit includes a microSD card slot for MP4 video recording. This feature allows for direct capture of meetings or lectures without requiring an external recorder, providing a simple backup solution for local documentation needs.
