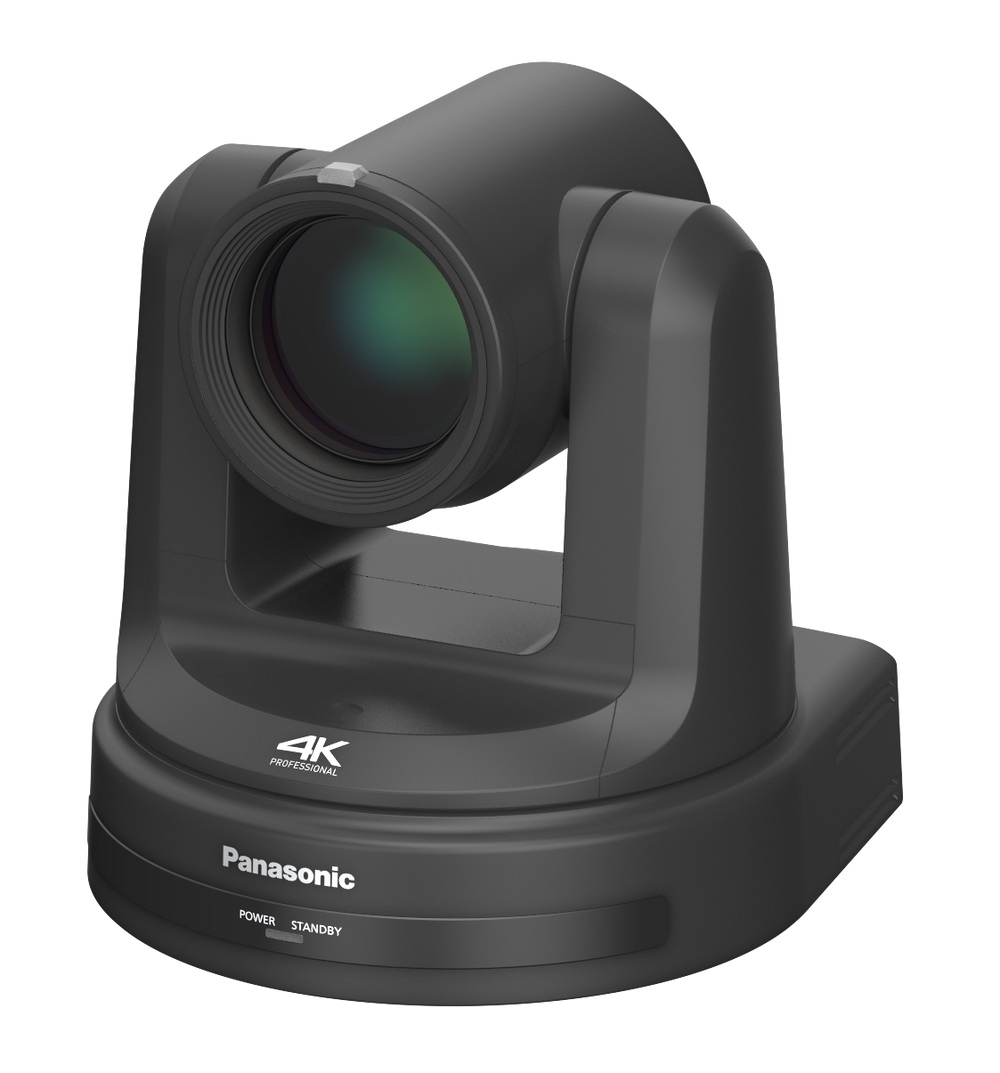

The Panasonic AW-UE20 is a 4K UHD remote PTZ camera designed for conference rooms and huddle spaces across the GCC and Africa. It features a 12x optical zoom, a 1/2.8-inch 4K MOS sensor, and single-cable PoE+ connectivity for simplified AV integration.
This Panasonic AW-UE20 remote PTZ camera delivers 4K UHD video at 30p/25p, making it suitable for professional video conferencing and live streaming workflows. The unit uses a 1/2.8-inch 4K MOS sensor with 12x optical zoom to capture wide-angle views from limited installation spaces. It supports simultaneous HDMI, 3G-SDI, and IP outputs, allowing flexible integration into existing HD or 4K AV systems without requiring additional video encoders.
Smart-Boards, an authorised reseller of Panasonic products, supplies the AW-UE20 to schools, universities, ministries, NGOs, and companies in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and across Africa. The camera supports PoE+ for power and control over a single LAN cable, and includes a USB Type-C port for direct connection to PCs. We provide quote-only pricing, with delivery times confirmed based on order size and destination country.
Key features
- 4K UHD Imaging - A 1/2.8-type 4K MOS sensor with approx. 8.46 effective megapixels produces clear video at resolutions up to 3840 x 2160.
- 12x Optical Zoom - Optical zoom reaches 12x with digital extenders of 1.4x and 2x, allowing detailed shots from a distance.
- PoE+ Connectivity - Power over Ethernet Plus (IEEE 802.3at) supplies 42.5 to 57 V DC through the LAN cable, simplifying cabling requirements.
- Multiple Video Outputs - Simultaneous HDMI, 3G-SDI, and IP outputs support flexible connection to video conferencing systems and streaming platforms.
- PTZ Control Range - Pan rotates ±170°, tilts from -30° to 90°, and operates at speeds up to 200°/s for preset movements.
Ideal for: Video conferencing, online learning, and live broadcasting in meeting rooms and huddle spaces across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Rotation range
- Pan ±170°
- Tilt range
- -30° to 90°
- Model
- AW-UE20
- Product type
- PTZ Camera
- Key features
- 4K output up to 30p/25p, 12x optical zoom, PoE+ single cable, USB video via PTZ Virtual USB driver, HDMI and 3G-SDI, RTMP/RTMPS streaming
- PoE
- PoE+ (IEEE 802.3at), 42.5 to 57 V DC
- Protocols
- HTTP, RTSP, RTP, RTMP, RTMPS, DHCP, DNS, NTP (IPv4 and IPv6)
- Speed
- Manual 0.1°/s to 100°/s; preset up to 200°/s
Display
- Colour
- White (AW-UE20W) or black (AW-UE20K)
- Resolution
- 4K UHD
- Viewing angle
- Horizontal 71.0° (wide) to 6.0° (tele)
Connectivity
- Ports
- HDMI × 1, 3G-SDI × 1, LAN (RJ45) × 1, USB Type-C × 1, RS-232C × 2 (in / out), RS-422 × 1, MIC/LINE input × 1, DC IN × 1
Camera & audio
- Camera
- 1/2.8-type 4K MOS sensor, approx. 8.46 MP, 12x optical zoom
- Audio
- MIC/LINE input (3.5 mm stereo mini jack); AAC-LC 48 kHz / 16 bit
- Zoom
- 12x optical; i.Zoom UHD 1.33x, FHD 1.33x; digital extender 1.4x and 2x
Physical & warranty
- Mounting type
- Desktop or ceiling suspended (hanging)
- Operating temperature
- 0 to 40 °C
- Dimensions
- 165.1 x 176.2 x 176.1 mm (W x H x D)
- Weight
- Approx. 1.9 kg (excluding ceiling mounting bracket)
- Power source
- 12 V DC (supplied AC adapter) or PoE+
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Panasonic AW-UE20 support PoE+?
Yes. The camera supports PoE+ (IEEE 802.3at), allowing power, control, and video transmission over a single LAN cable. It can also be powered by a supplied 12 V DC AC adapter.
Which countries can receive the AW-UE20?
Yes. Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners. Delivery time depends on the country and order size, confirmed on the quotation.
Is on-site installation included outside the UAE?
No. On-site installation is available within the UAE only. For other countries, the camera is delivered ready for local setup, with remote guidance provided if needed.
Can the camera stream directly to online platforms?
Yes. It supports RTMP and RTMPS protocols, enabling direct streaming to services like YouTube Live and Facebook Live without additional hardware encoders.
What is the maximum zoom capability?
The AW-UE20 offers 12x optical zoom. It also includes digital extenders of 1.4x and 2x, and i.Zoom UHD/FHD at 1.33x for enhanced magnification.
Does it work with USB video conferencing apps?
Yes. Using the PTZ Virtual USB driver software and a LAN connection, the camera provides video and audio to platforms like Zoom or Teams similarly to a standard USB camera.
What mounting options are available?
The compact 165.1 x 176.2 x 176.1 mm unit supports both desktop placement and ceiling suspended mounting, making it suitable for small meeting rooms.
