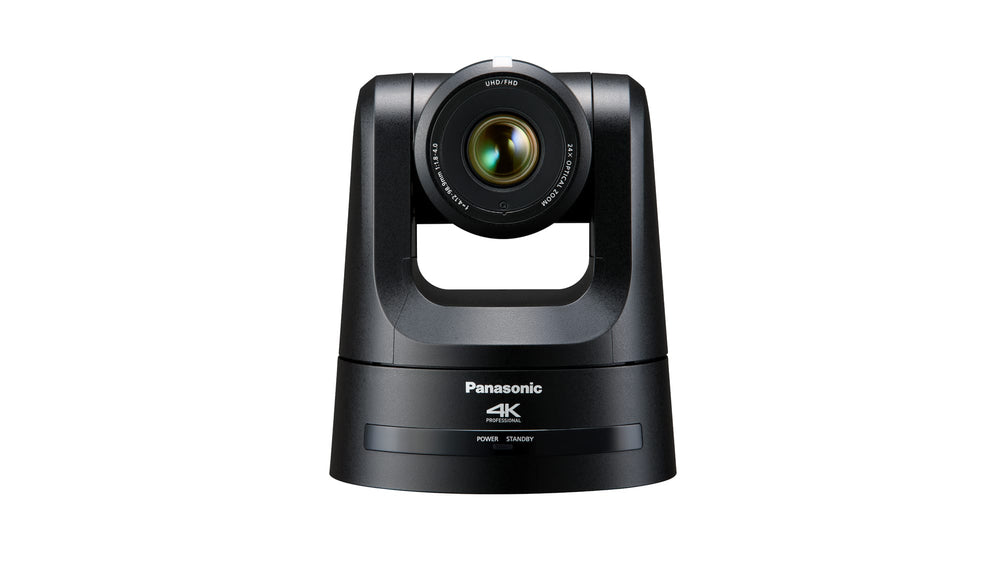

The Panasonic AW-UE100 is a 4K PTZ conference camera designed for professional video production and remote meetings. It features a 24x optical zoom and supports NDI and SRT protocols for high-quality transmission. Smart-Boards supplies this unit across the GCC and Africa.
This Panasonic AW-UE100 delivers 4K UHD video at 60p/50p using a 1/2.5-type MOS sensor. It offers 24x optical zoom and a horizontal viewing angle of 74.1 degrees. The camera supports high-bandwidth NDI and SRT protocols for stable transmission over LAN. It also includes 12G-SDI, 3G-SDI, and HDMI 2.0 outputs for versatile connectivity.
The AW-UE100 supports PoE++ (IEEE 802.3bt) for simplified installation or uses the supplied AC adaptor. It features FreeD output for AR/VR system integration and RTMP/RTMPS for direct streaming. Smart-Boards provides this camera to schools, ministries, and companies in the GCC and Africa, with on-site installation available in the UAE.
Key features
- 4K Image Quality - Captures 3840 x 2160 video at 60p/50p using a 1/2.5-type 4K MOS sensor with approx. 8.49 MP resolution.
- Optical Zoom Lens - Equipped with 24x optical zoom, maintaining high image quality from a wide 74.1-degree horizontal view angle.
- IP Transmission Protocols - Supports high-bandwidth NDI, NDI|HX, and SRT for low-latency video transmission over a single LAN cable.
- Professional Outputs - Includes 12G-SDI, 3G-SDI, HDMI 2.0, and RS-422 ports for flexible connection to broadcast and conferencing systems.
- Flexible Mounting - Designed for desktop placement or ceiling suspension, with pan ±175° and tilt -30° to 210° movement capabilities.
- Power Options - Operates via PoE++ (42 to 57 V DC) for reduced cabling or uses the included 12 V DC AC adaptor.
Ideal for: Suitable for corporate boardrooms, broadcast studios, and large conference halls, this camera meets the needs of buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Rotation range
- Pan ±175°
- Tilt range
- -30° to 210°
- Model
- AW-UE100
- Product type
- PTZ Camera
- Key features
- 4K 60p/50p video, high bandwidth NDI and NDI|HX, SRT, 12G-SDI, 24x optical zoom, FreeD output, RTMP/RTMPS streaming, PoE++
- PoE
- PoE++ (IEEE 802.3bt), 42 to 57 V DC
- Protocols
- NDI (high bandwidth), NDI|HX v2, SRT, RTMP, RTMPS, RTSP, HTTP, HTTPS, FreeD
- Speed
- 0.08°/s to 60°/s (normal mode); Fast1 90°/s; Fast2 180°/s
Display
- Colour
- Pearl white (WP, WPC, WE, WED) or black (KP, KPC, KE, KED)
- Resolution
- 4K UHD
- Viewing angle
- Horizontal 74.1° (wide) to 3.3° (tele)
Connectivity
- Ports
- 12G-SDI × 1, 3G-SDI × 1, HDMI 2.0 × 1, LAN (RJ45, IP control and video, PoE++) × 1, RS-422 × 1, audio input × 1, G/L IN (BNC) × 1, DC IN × 1
Camera & audio
- Camera
- 1/2.5-type 4K MOS sensor, approx. 8.49 MP, 24x optical zoom
- Audio
- 3.5 mm stereo mini-jack input; AAC-LC 48 kHz / 16 bit, 2 ch
- Zoom
- 24x optical; i.Zoom UHD 28x, FHD 36x; digital zoom 1.4x and 2x
Physical & warranty
- Mounting type
- Desktop or ceiling suspended (hanging)
- Operating humidity
- 20% to 90% (non-condensing)
- Operating temperature
- 0 to 40 °C
- Dimensions
- 169.2 x 204.6 x 170.6 mm (W x H x D)
- Weight
- Approx. 2.2 kg (excluding cable cover and mount bracket)
- Power source
- 12 V DC (supplied AC adaptor) or PoE++
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Panasonic AW-UE100 support PoE?
Yes. The AW-UE100 supports PoE++ (IEEE 802.3bt), requiring 42 to 57 V DC. This allows power and data transmission over a single LAN cable, simplifying installation in meeting rooms.
Can this camera stream directly to social media?
Yes. The camera supports RTMP and RTMPS protocols. This allows direct streaming to live broadcasting services such as YouTube Live and Facebook Live without additional encoding hardware.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations. Delivery times depend on the country and order size, confirmed on the quotation.
Is on-site installation available outside the UAE?
No. On-site installation is available within the UAE only. For other countries, the camera is delivered ready for local setup, with remote guidance provided if needed.
What is the maximum optical zoom?
The AW-UE100 features 24x optical zoom. It also offers i.Zoom UHD 28x and FHD 36x, plus digital zoom of 1.4x and 2x for extended reach.
Does the camera support AR/VR integration?
Yes. The AW-UE100 supports FreeD command output. This allows connection to AR/VR systems by outputting pan, tilt, zoom, focus, and iris tracking information with a synchronization signal.
How is pricing determined for this product?
Pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options. Contact the team for a quote specific to your region and order size.
