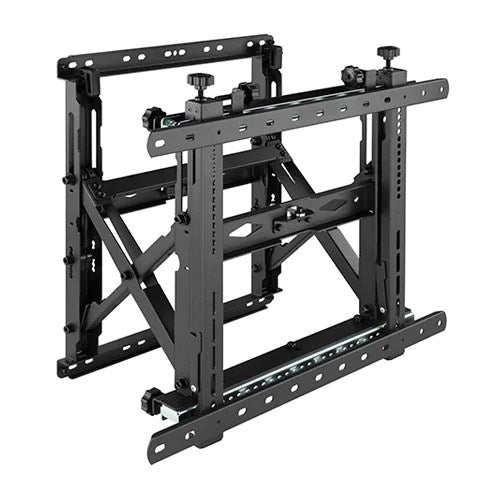

VSYS VSVW13-46T Modular Push-Pull Video Wall Mount for 45"–70" Displays, 70 kg. A grid system where the seams are set by adjustment screws, not by luck.
Every video wall is judged on its joints. If one panel sits a millimetre proud or a millimetre low, the eye finds it immediately and the whole array looks wrong. The VSYS VSVW13-46T is built around that problem: each bracket carries 13.5 mm of depth adjustment and 13 mm of height adjustment, so an installer dials each 45" to 70" panel into the plane of its neighbours after everything is hung. It is rated to 70 kg, which puts heavier commercial-grade panels inside its range. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
The system is modular and orientation-agnostic: the same bracket takes a display in portrait or in landscape, so a 3x3 grid, a portrait signage ribbon and a stretched landscape run can all be built from one part number and extended row by row later. The pop-out lock releases a panel out to 325 mm from a 120 mm parked position for rear cable work, then locks flat again. Toolless tilt runs plus 2 to minus 3 degrees. Construction is a 2 mm cold-rolled steel bracket arm on a 2.5 mm steel wall plate in fine-texture black, strength tested to four times rated load, with an anti-theft locking design for exposed sites.
Key features
- Micro-adjustment of 13.5 mm in depth and 13 mm in height per bracket - the mechanism that makes seams even across a large array
- Portrait or landscape mounting from the same bracket, so one part number covers grids, ribbons and stretched runs
- Modular design intended to be extended across additional rows and columns as an installation grows
- 70 kg load rating covers heavier commercial-grade 45" to 70" panels, not just consumer televisions
- Push-pull pop-out travels from 120 mm parked to 325 mm extended for full rear access to cabling and players
- Toolless tilt of plus 2 to minus 3 degrees trims the face angle after the panel is in the grid
- VESA up to 600x400 mm with a maximum mounting hole span of 604x405 mm
- 2 mm cold-rolled steel bracket arm on a 2.5 mm steel wall plate, strength tested to four times rated load
- Anti-theft locking design for commercial and public-facing installations
- Fine-texture black powder coating that stays unobtrusive in the gaps between bezels
| Brand | VSYS |
|---|---|
| Colour | Black |
| Display compatibility | 45 inch to 70 inch flat panels and commercial displays |
| Extension | Push-pull pop-out lock system |
| In the box | Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed installation instructions |
| Material | 2 mm cold-rolled steel bracket arm, 2.5 mm steel wall plate, fine-texture powder coating |
| Max load | 70 kg (154 lbs) |
| Micro adjustment | 13.5 mm in depth, 13 mm in height |
| Mounting type | Wall mount, modular push-pull video wall bracket, one per panel |
|---|---|
| Orientation | Portrait or landscape |
| Security | Anti-theft locking design, lock fitting supplied |
| Testing | Strength tested to 4 times rated load |
| Tilt range | Plus 2 to minus 3 degrees, toolless |
| Vesa pattern | 200x200 mm to 600x400 mm, maximum hole span 604x405 mm |
| Wall distance | 120 mm retracted, 325 mm extended |
| Model | VSVW13-46T |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VSVW13-46T?
It is a modular video wall bracket for one 45" to 70" panel weighing up to 70 kg. Each unit has micro-adjustment in depth and height, mounts portrait or landscape, and pops out to 325 mm for rear access. You combine as many as the array needs.
2. Is it compatible with my display?
Yes - if the panel is 45" to 70", weighs 70 kg or less and has a VESA pattern up to 600x400 mm, it will fit; the maximum hole span is 604x405 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
3. What exactly does the micro-adjustment do?
It gives 13.5 mm of movement in depth and 13 mm in height on each bracket, adjusted after the panel is hung. That is how you bring every screen into one flat plane and one straight line, so the bezel gaps read as a single surface rather than a set of separate displays.
4. Can I build a portrait video wall with it?
Yes. The bracket supports portrait and landscape orientation, so the same model builds a conventional landscape grid, a column of portrait signage, or a mixed layout. That is useful when a project has a mall ribbon and a lobby grid in the same tender.
5. How is it different from the lighter 37" to 70" push-pull model?
This one carries 70 kg rather than 45 kg, adds portrait or landscape mounting and adds measured micro-adjustment in two axes. It also parks further off the wall, at 120 mm, and extends to 325 mm. Choose it for heavier commercial panels and for arrays where seam accuracy is being inspected.
6. Do you ship the VSYS VSVW13-46T across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VSVW13-46T?
Pricing is on request and quoted per bracket. Send a quote request from the product page or email info@procure.ae with the grid layout and panel model, and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and align the array, which on a micro-adjustable system is where most of the time goes. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
9. Can the wall be extended later?
Yes, that is the point of a modular system. Additional brackets can be added in further rows or columns as the installation grows, provided the wall structure carries the extra load. Tell us the final intended size at quotation stage and we will plan the first phase around it.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
