The OneScreen Touchscreen TL6 Education 75" is a 75-inch 4K UHD interactive flat panel designed for educational environments. It features 20-point infrared touch and built-in Android 8.0 for standalone operation. Smart-Boards supplies this model across the GCC and Africa with logistics support.
This 75-inch interactive flat panel delivers 4K UHD resolution with a 350-nit brightness level, ensuring clear visibility in varied classroom lighting. The infrared touch technology supports up to 20 simultaneous touch points with less than 2 mm accuracy, facilitating collaborative digital lessons. Integrated dual 15 W speakers provide audio output, reducing the need for external sound systems in standard setups.
The device runs on Android 8.0 with access to Google Play, allowing teachers to run educational applications directly without additional hardware. It includes EShare screen sharing for up to nine screens and a built-in screen recorder for lesson capture. Connectivity options include two HDMI inputs, VGA, and USB ports, while an optional OPS slot supports Windows 10 for expanded functionality in institutional deployments.
Key features
- High Definition Display - The 75-inch screen offers 3840 x 2160 resolution with a 1,200:1 contrast ratio and 178-degree viewing angles for clear visibility from all seats.
- Multi-Touch Interaction - Infrared touch technology enables 20-point multi-touch with a response time of under 8 ms and touch resolution of 32768 x 32768 for precise control.
- Integrated Android System - Built-in Android 8.0 with a Cortex A73 processor, 3 GB RAM, and 32 GB storage allows direct app usage and access to the Google Play store.
- Collaborative Connectivity - EShare software supports screen sharing for up to nine devices, and dual 15 W speakers provide built-in audio for presentations without external amplifiers.
- Flexible Mounting Options - The panel supports VESA 600 x 400 mm mounting patterns and includes an OPS slot for optional Windows 10 PC integration to suit institutional needs.
Ideal for: Suitable for classrooms and training centers requiring large-format interactive displays, this model serves buyers across the GCC and Africa needing robust digital teaching tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Touchscreen TL6 Education 75
- Product type
- Interactive Flat Panel
- Key features
- 20-point IR touch, Android 8.0 with Google Play, 4K UHD LG panel, EShare screen sharing (up to 9 screens), built-in screen recorder, 2 × 15 W speakers, OPS PC support, temperature protection
- Application
- Classroom / education
Display
- Backlight
- LED
- Brightness
- 350 cd/m²
- Colour depth
- 10-bit (1.07 billion colors)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° / 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1 (typical)
Touch
- Touch accuracy
- < 2 mm
- Touch points
- 20-point multi-touch
- Touch resolution
- 32768 x 32768
- Touch response time
- < 8 ms
- Touch technology
- Infrared
System
- Processor
- Cortex A73 x2 + A53 x2, 1.5 GHz
- OPS slot
- OPS PC support (optional Windows 10 OPS PC)
- Operating system
- Android 8
- RAM
- 3 GB DDR3
- Storage
- 32 GB
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 4.1
- Ethernet (RJ45)
- RJ45 × 2
- HDMI input
- HDMI × 2
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB × 1
- USB ports
- USB 2.0 × 2, USB 3.0 × 2 (front)
- VGA input
- VGA × 1
- Wi-Fi
- Wi-Fi 2.4 GHz / 5 GHz (hotspot supported)
- Ports
- HDMI In × 2, VGA In × 1, YPbPr In × 1, AV In × 1, AV Out × 1, RS232 × 1, RJ45 × 2, Touch USB × 1, USB 2.0 × 2, USB 3.0 × 2
Camera & audio
- Audio in
- VGA audio × 1, AV in × 1
- Audio out
- 3.5 mm earphone × 1, AV out × 1
- Speaker output
- 2 × 15 W
- Speaker configuration
- 2 × 15 W speakers, surround sound, equalizer
Physical & warranty
- In the box
- 2 stylus pens, 1 extendible stylus, remote control, power cord, HDMI cable, USB touch cable
- Operating humidity
- 10% to 90% RH
- Operating temperature
- -10 to 50 °C
- Power consumption
- ≤ 320 W (rated)
- Standby power
- < 1 W
- Dimensions
- 1707 x 1023 x 92 mm
- Weight
- 61.0 kg
- Shipping dimensions
- 1930 x 1185 x 225 mm

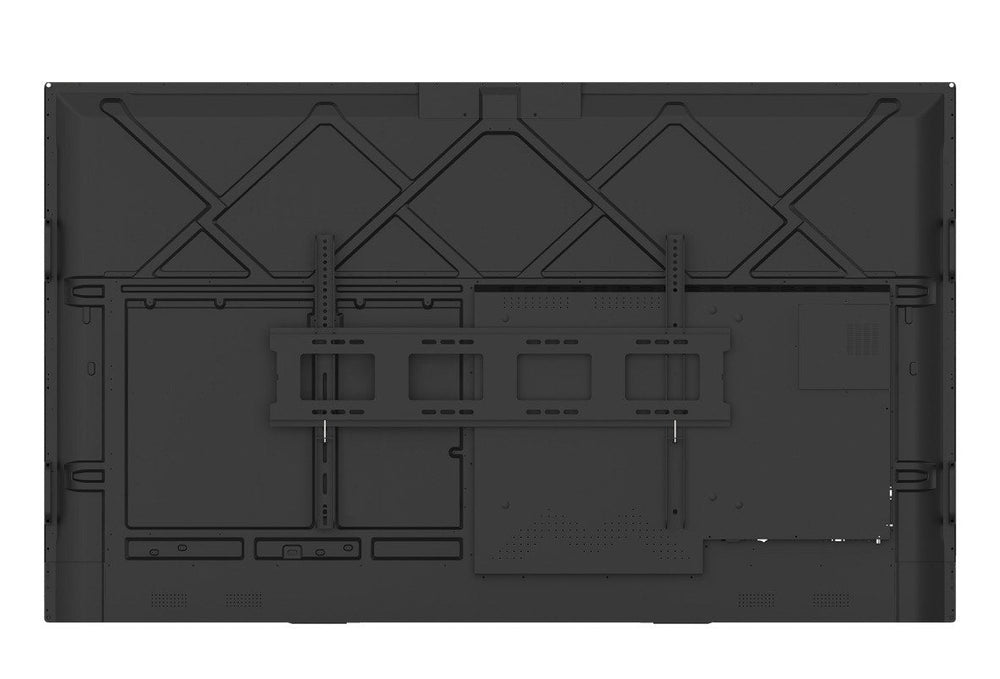

- VESA mount
- 600 x 400 mm
- Shipping weight
- 81.0 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product available for immediate purchase?
No, the OneScreen Touchscreen TL6 Education 75" is discontinued. The Smart-Boards team can confirm current availability or recommend the latest successor model that meets your requirements.
Which countries receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners to ensure cost-effective delivery.
Is installation included outside the UAE?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup, with remote guidance available if needed to assist with configuration.
What connectivity ports are available?
The panel includes two HDMI inputs, one VGA input, two RJ45 Ethernet ports, RS232, AV in/out, and multiple USB 2.0 and USB 3.0 ports for peripheral connection.
Does it support wireless screen sharing?
Yes, the built-in EShare software allows screen sharing from up to nine devices simultaneously, supporting both 2.4 GHz and 5 GHz Wi-Fi connections for flexible classroom use.
What is the power consumption?
The rated power consumption is 320 W or less, with standby power under 1 W, operating on 100–240 V AC input suitable for standard international power supplies.
Does it include an OPS PC slot?
Yes, the device features an OPS slot that supports an optional Windows 10 OPS PC, allowing you to add Windows functionality to the Android operating system for broader software compatibility.
