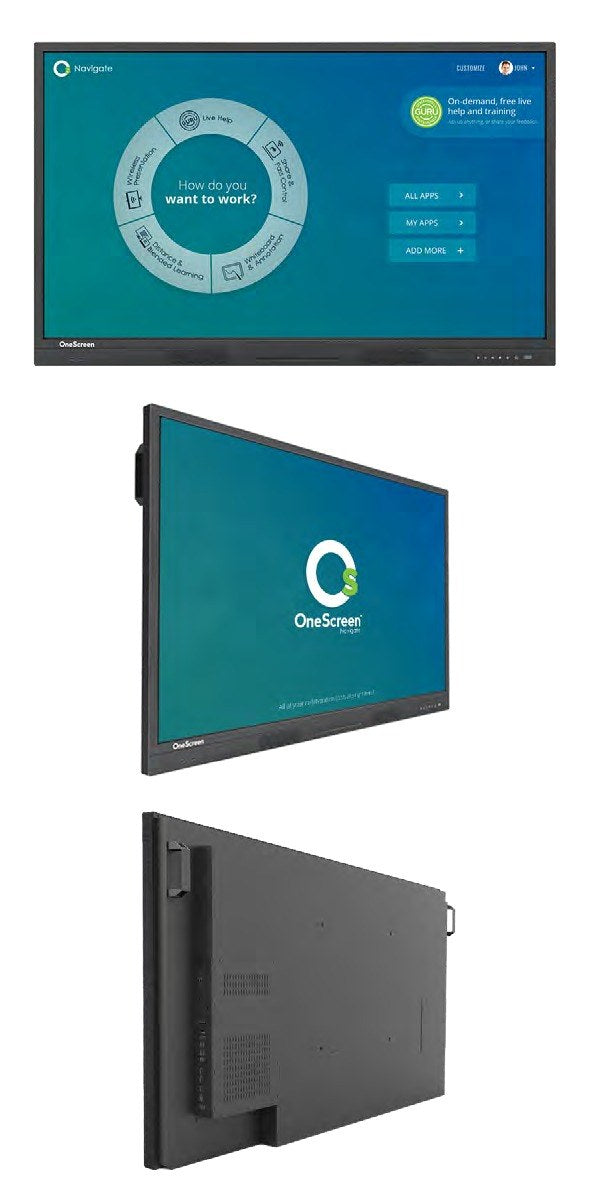

The OneScreen Touchscreen T5 Education 75 is a 75-inch interactive flat panel designed for educational environments. It features 4K UHD resolution, Android 6 OS, and 20-point infrared touch. Smart-Boards supplies this model to schools and ministries across the GCC and Africa.
This 75-inch LCD display delivers 4K UHD visuals with 400 nits brightness and an 8 Mohs anti-glare surface for clear classroom viewing. The built-in Android 6 system includes Google Play, a quad-core processor, and 2GB RAM for standalone operation. Dual-band Wi-Fi and Bluetooth 4.0 enable wireless connectivity, while integrated Dolby stereo speakers provide audio without external hardware.
Connectivity is comprehensive, featuring three HDMI inputs, VGA, DisplayPort, and multiple USB ports for peripherals and touch control. The panel supports 178-degree viewing angles and 20-point multi-touch with millimeter accuracy for collaborative work. Although discontinued, Smart-Boards remains an authorised reseller, offering verification of current successor models and tailored solutions for multi-site deployments across the region.
Key features
- 4K UHD Display - The 75-inch screen provides 3840 x 2160 resolution with 10-bit color depth and 400 nits brightness for vivid content.
- Interactive Touch - Infrared technology supports 20-point multi-touch with 2mm accuracy and less than 8ms response time for fluid writing.
- Built-in Android OS - Runs Android 6 with Google Play access, 2GB RAM, and 64GB storage for independent app usage without a connected PC.
- Audio Output - Integrated Dolby stereo speakers deliver 2 x 15W sound, reducing the need for external audio equipment in standard classrooms.
- Connectivity Options - Includes three HDMI inputs, VGA, DisplayPort, dual RJ-45 Ethernet, RS-232, and multiple USB ports for versatile device integration.
Ideal for classrooms, lecture halls, and training centers requiring large-format interactive displays for the GCC and Africa markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Touchscreen T5 Education 75
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 20-point IR touch, Android 6, Google Play, Dolby stereo 2 × 15 W, dual-band Wi-Fi, Bluetooth 4.0, 8 Mohs anti-glare glass
Display
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07B colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- Anti-glare glass, 8 Mohs hardness
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Panel technology
- LCD
Touch
- Touch accuracy
- 2 mm
- Touch points
- 20-point multi-touch
- Touch response time
- < 8 ms
- Touch technology
- Infrared
System
- Processor
- Quad-core ARM Cortex-A53, 1.5 GHz
- Operating system
- Android 6
- RAM
- 2 GB
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 4.0
- DisplayPort
- DisplayPort In × 1
- Ethernet (RJ45)
- RJ-45 × 2
- HDMI input
- HDMI In × 3
- Serial port
- RS-232 × 1
- Touch USB ports
- Touch × 2 (1 for HDMI, 1 for VGA and DisplayPort)
- USB ports
- Multi-media USB (dual mode) × 5, Camera USB × 1
- VGA input
- VGA × 1
- Wi-Fi
- Dual-band (2.4 GHz and 5 GHz), 3 antennas
- Inputs
- HDMI × 3, VGA × 1, DisplayPort × 1, Audio × 1, MIC × 1, YPbPr × 1, AV × 1
- Outputs
- HDMI Out × 1, SPDIF × 1, AV × 1, Earphone × 1
Camera & audio
- Speaker output
- 2 x 15 W
- Speaker type
- Built-in Dolby stereo speakers
Physical & warranty
- In the box
- HDMI cable, touch USB cable, VGA cable, AUX cable, power cable, 2 × stylus, extendable wand, remote control, flush wall mount
- Dimensions
- 1740 x 1059 x 107 mm
- Weight
- 64.9 kg
- Shipping dimensions
- 1882 x 1212 x 282 mm
- VESA mount
- 600 x 400 mm
- Shipping weight
- 93.0 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the OneScreen T5 Education 75 still in production?
No, this model is discontinued. The Smart-Boards team can confirm availability of remaining stock or recommend the current successor model for your requirements.
Can this panel be delivered to countries outside the UAE?
Yes. Smart-Boards ships to GCC and African countries through established logistics partners at the lowest possible cost, ensuring reliable regional delivery.
Does the price include installation services?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup with remote guidance if needed.
What is the touch technology used?
It uses Infrared (IR) touch technology supporting 20 points of multi-touch with 2mm accuracy and a response time of less than 8 ms.
Does it support wireless connectivity?
Yes, it features dual-band Wi-Fi (2.4 GHz and 5 GHz) with three antennas and Bluetooth 4.0 for wireless peripheral connections.
What mounting options are available?
The panel supports a VESA 600 x 400 mm mount and includes a flush wall mount in the box for secure and stable installation.
Is the pricing fixed for bulk orders?
Pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options tailored to multi-site procurement needs.
