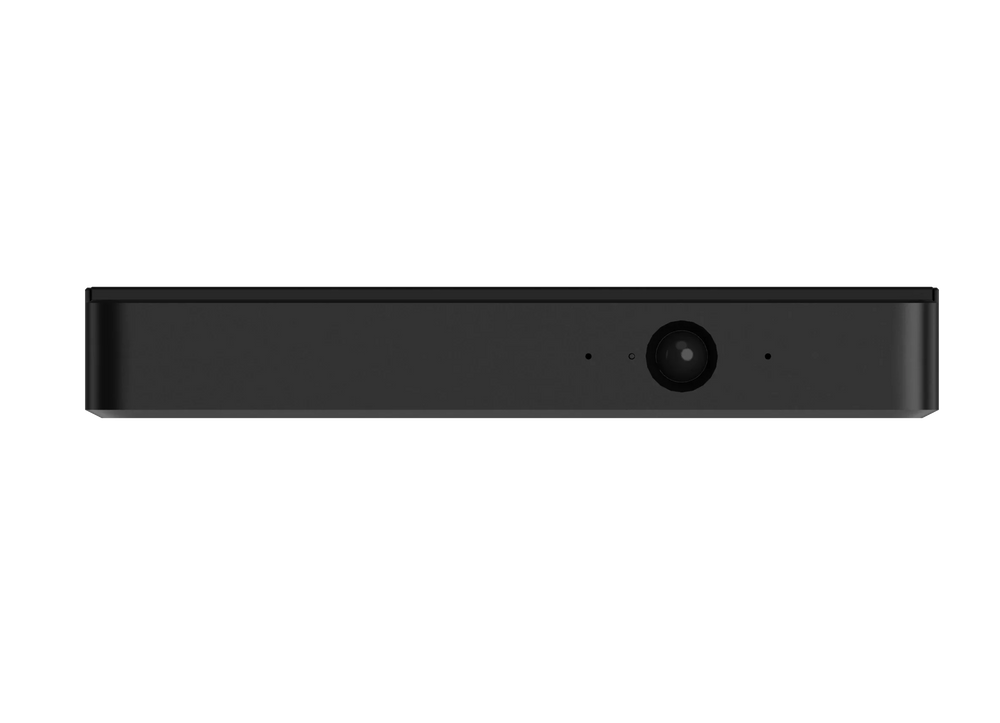

The OneScreen Sensor Box is an NFC-enabled accessory that expands touchscreen interaction through motion detection and secure account access. Designed for interactive flat panels, it operates within a 0 to 4.9 m range with response under 2 s. Smart-Boards supplies this accessory for educational and corporate deployments across the GCC and Africa.
This NFC sensor unit facilitates user authentication and power management for compatible OneScreen interactive displays. It detects motion within a 0 to 4.9 m horizontal angle to wake the screen and logs users into their OneScreen accounts. The compact 206 x 69 x 32 mm device weighs 181 g and consumes 5 W maximum, ensuring low energy use in busy classrooms or meeting rooms.
Smart-Boards provides this accessory to organizations upgrading or maintaining interactive technology in the GCC and African regions. As an authorised reseller, we offer quote-only pricing and delivery to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and select African nations. Installation is available within the UAE, while other regions receive ready-to-setup units with remote guidance for multi-site rollouts.
Key features
- NFC Connectivity - Supports ISO/IEC 14443 and ISO/IEC 15693 protocols for secure login and data exchange with compatible OneScreen panels.
- Motion Detection - Detects user presence within a 0 to 4.9 m range and 80-degree horizontal angle to automatically wake the screen.
- Power Management - Automatically powers off after inactivity to reduce energy consumption, operating on 5 V DC with 5 W maximum draw.
- Rapid Response - Delivers interaction response in under 2 seconds, ensuring immediate screen activation when users approach the display area.
- Compact Design - Small form factor measuring 206 x 69 x 32 mm and weighing 181 g, allowing discreet integration into existing AV setups.
Ideal for schools, universities, and corporate offices requiring secure, motion-activated access to OneScreen interactive flat panels across GCC and African deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Sensor Box
- Product type
- NFC Sensor Box
- Key features
- Motion detection, Screen wake-up on motion, Power-off after inactivity, NFC login to OneScreen account, 0 to 80 degree horizontal detection angle
- Protocols
- ISO/IEC 14443, ISO/IEC 15693
Display
- Response time
- Under 2 s
System
- Operating range
- 0 to 4.9 m (0 to 16 ft)
Connectivity
- Connectivity options
- NFC
Physical & warranty
- Power consumption
- 5 W (maximum)
- Dimensions
- 206 x 69 x 32 mm (L x W x H)
- Weight
- 181 g
- Shipping dimensions
- 275 x 228 x 63 mm
- Shipping weight
- 390 g
- Input voltage
- 5 V DC, 1 A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the OneScreen Sensor Box?
The OneScreen Sensor Box is an NFC-enabled accessory that adds motion detection and secure login capabilities to compatible OneScreen interactive flat panels. It wakes the screen upon user approach and authenticates users via NFC, streamlining daily interactions in educational or corporate environments.
Which countries can it be delivered to?
Smart-Boards delivers the OneScreen Sensor Box to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries. Delivery costs are minimised through established logistics partners, and exact lead times depend on the destination and order size, confirmed during the quotation process.
Is on-site installation available outside the UAE?
No. On-site installation is provided within the UAE only. For other GCC and African countries, the unit is delivered ready for local setup. Smart-Boards offers remote guidance to assist technical teams with configuration and connection during the installation process.
Does it support OneScreen account login?
Yes. The Sensor Box supports NFC login to OneScreen accounts using ISO/IEC 14443 and ISO/IEC 15693 protocols. This allows users to securely access their personal settings and content by tapping their NFC-enabled card or device against the sensor area.
What is the operating range for motion detection?
The sensor detects motion within a range of 0 to 4.9 m (0 to 16 ft) with a 0 to 80-degree horizontal detection angle. This ensures reliable screen wake-up for users approaching from various positions within the typical viewing distance of the interactive display.
What are the power specifications?
The device operates on 5 V DC at 1 A, with a maximum power consumption of 5 W. It features an automatic power-off function after inactivity to conserve energy. The shipping weight is 390 g, and dimensions are 275 x 228 x 63 mm for packaging.
How do I purchase this accessory?
Pricing is by quotation only. Contact Smart-Boards for a quote tailored to your site in the GCC or Africa. We provide live or virtual demonstrations before purchase and offer manufacturer warranty plus our after-sales support for all accessories supplied through our authorised reseller network.
