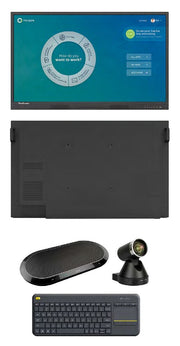

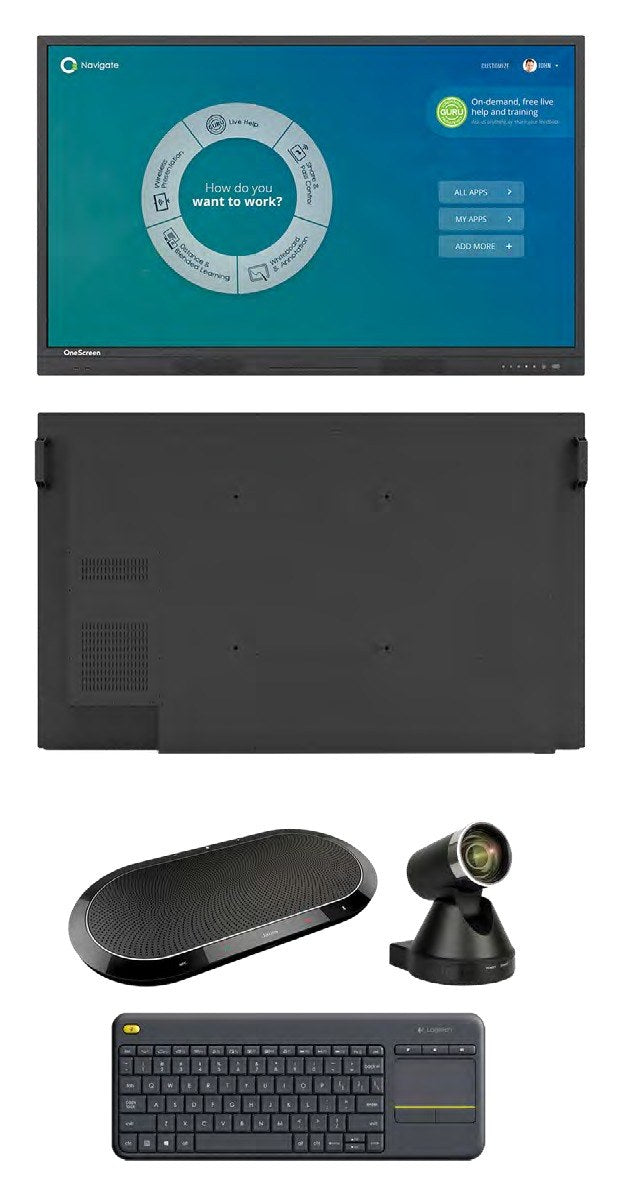

The OneScreen Hubware H5 98 is a 98-inch interactive flat panel featuring a 4K UHD IPS display and integrated OPS PC with Intel i7 processor. Smart-Boards supplies this discontinued model for educational and corporate sites across the GCC and Africa, offering quotation, logistics, and after-sales support.
This 98-inch interactive display combines an Android 6 operating system with a dedicated Windows 10 Pro OPS PC module. The panel features a 4K UHD resolution of 3840 x 2160 pixels on an IPS screen with 1.06 billion colours. It supports 20-point infrared multi-touch with 2 mm accuracy and includes a PTZ 1080p camera with 12x optical zoom for video conferencing.
The Hubware H5 98 includes built-in Dolby stereo speakers and an adaptive array microphone system with a 4.6 m range. Connectivity options cover HDMI, VGA, DisplayPort, and dual RJ-45 Ethernet ports. While the model is discontinued, Smart-Boards provides quotation, shipping to GCC and African countries, and manufacturer warranty support through Dubai.
Key features
- Integrated Computing - Includes an OPS slot-in PC with Intel i7 7th Gen processor, 8 GB RAM, and 256 GB SSD running Windows 10 Pro.
- 4K UHD Display - Features a 98-inch IPS panel with 3840 x 2160 resolution, 400 nits brightness, and 178-degree viewing angles.
- Multi-Touch Interface - Supports 20-point infrared multi-touch with 2 mm accuracy and a response time of less than 8 ms.
- Video Conferencing - Includes a PTZ 1080p camera with 12x optical zoom and a speakerphone with adaptive array microphones for clear audio.
- Connectivity Ports - Provides three HDMI inputs, one VGA input, DisplayPort, RS-232, and five multimedia USB ports with auto-switching.
- Mounting & Dimensions - Fits VESA 800 x 400 mm mounts with a flush wall mount provided; dimensions are 2252 x 1339 x 108 mm.
Ideal for: Suitable for large boardrooms, training rooms, and lecture halls, and ideal for buyers across the GCC and Africa managing multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Hubware H5 98
- Product type
- Interactive Flat Panel with OPS PC
- Key features
- 4K UHD IPS panel, built-in OPS PC (i7), Android 6, 20-point IR touch, PTZ camera, Dolby sound, Google Play, free training
- Application
- Work rooms, meeting and training spaces
- Conference calling
- OneScreen Hype video collaboration (1-year subscription, 50 licences)
- License
- Hype and Swap 1-year subscriptions (50 licences each); Annotate and Navigate perpetual
Display
- Backlight
- LED
- Brightness
- 400 cd/m²
- Colour depth
- 1.06 billion colours (10-bit)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 98"
- Surface protection
- 8 Mohs anti-glare glass
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Panel technology
- IPS
Touch
- Touch accuracy
- 2 mm
- Touch points
- 20-point multi-touch
- Touch response time
- <8 ms
- Touch technology
- Infrared
System
- Processor
- OPS PC: Intel i7 7th Gen; Android: quad-core Cortex-A53, 1.5 GHz
- OPS slot
- OPS PC included: 4 x USB 3.0, 2 x USB 2.0, HDMI, DisplayPort, VGA, mic, earphone, RS-232
- Operating system
- Android 6
- RAM
- 8 GB (OPS PC); 2 GB (Android)
- Storage
- 256 GB
Connectivity
- Bluetooth
- Bluetooth 4.0
- DisplayPort
- DisplayPort × 1
- Ethernet (RJ45)
- RJ-45 × 2
- HDMI input
- HDMI × 3
- HDMI output
- HDMI × 1
- Serial port
- RS-232 × 1
- USB ports
- 5 x multimedia USB with auto-switch between Android and OPS PC
- VGA input
- VGA × 1
- Wi-Fi
- Dual Wi-Fi, 2.4 GHz and 5 GHz (3 antennas)
- Inputs
- HDMI × 3, VGA × 1, DisplayPort × 1, audio × 1, mic × 1, YPbPr × 1, AV × 1
- Outputs
- HDMI × 1, SPDIF × 1, AV × 1, earphone × 1
- Ports
- Camera USB × 1, RS-232 × 1, RJ-45 × 2, Touch × 2, 5 x multimedia USB (dual mode)
Camera & audio
- Audio out
- Earphone × 1, SPDIF × 1, AV × 1
- Built-in camera
- Yes
- Camera
- PTZ 1080p Full HD, 12x optical zoom, 16x digital zoom, 60 fps, USB 3.0, 72.5° lens, 170° rotation
- Speaker output
- 2 x 15 W (Dolby stereo)
- Audio
- Dolby stereo speakers; speakerphone with 6 W speaker, USB, Bluetooth/NFC and AUX
- Microphone
- Speakerphone with adaptive array microphones, 4.6 m range
Physical & warranty
- Mounting type
- VESA 800 x 400 mm; flush wall mount provided
- In the box
- Display and PTZ camera remote controls, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand, wireless keyboard with touchpad
- Dimensions
- 2252 x 1339 x 108 mm
- Weight
- 180.0 kg
- Shipping dimensions
- 2525 x 1750 x 437 mm
- VESA mount
- 800 x 400 mm
- Warranty
- Advanced hardware replacement warranty (available at time of purchase only)
- Shipping weight
- 205.0 kg (excluding accessories)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the OneScreen Hubware H5 98 still available for purchase?
This model is discontinued. Smart-Boards can confirm current availability or recommend a current successor model based on your specific requirements and location.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations, via established logistics partners.
Does Smart-Boards handle installation outside the UAE?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed.
What operating systems does the OPS PC module run?
The included OPS PC runs Windows 10 Pro, while the display itself operates on Android 6, allowing dual-system functionality.
Does the unit include video conferencing software?
Yes, it includes a one-year subscription to OneScreen Hype video collaboration software with 50 licences, plus perpetual licenses for Annotate and Navigate.
What is included in the box for this interactive panel?
The box contains the display, PTZ camera remote, HDMI, touch USB, VGA, AUX, and power cables, two styluses, an extendable wand, and a wireless keyboard with touchpad.
How is the warranty handled for this discontinued product?
Smart-Boards provides the manufacturer's advanced hardware replacement warranty where available at the time of purchase, alongside our own after-sales support.
