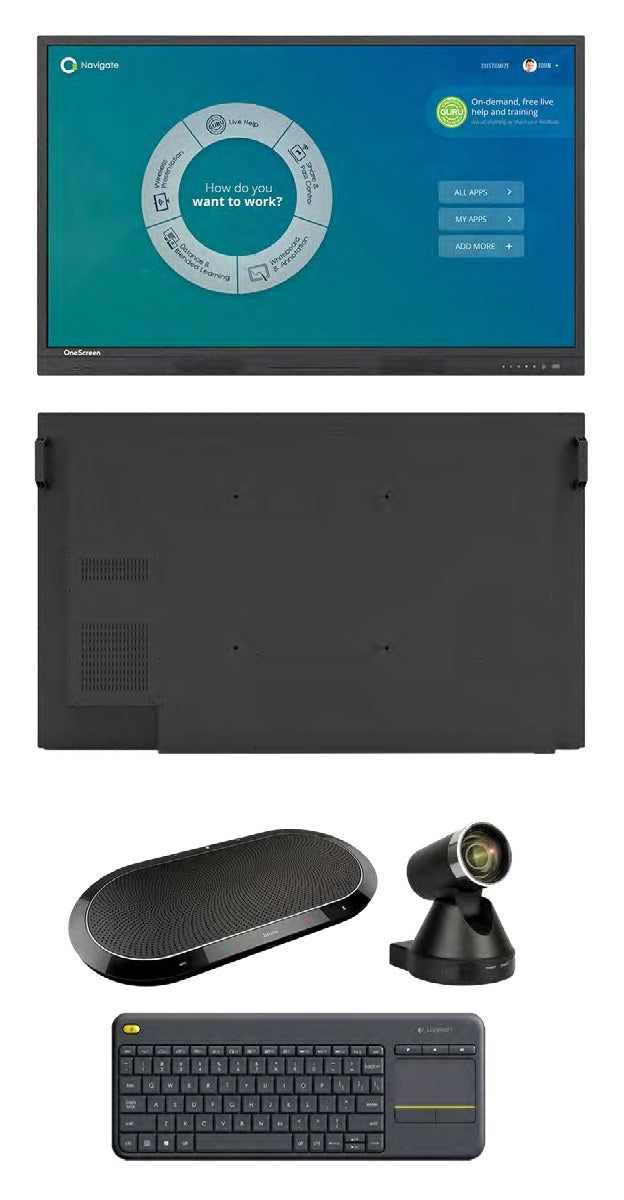

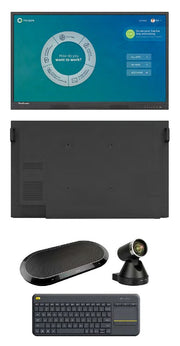

The OneScreen Hubware H5 65 is a discontinued 65-inch interactive flat panel featuring an integrated OPS PC with Intel Core i7 and Windows 10 Pro. It includes a 1080p PTZ camera and Dolby stereo audio, designed for collaborative environments in the GCC and Africa.
This 65-inch interactive flat panel combines a 4K UHD IPS display with an OPS slot-in PC for standalone operation. The system runs Windows 10 Pro via an Intel Core i7 processor alongside Android 6 for display control. It supports 20-point infrared touch with finger or stylus input, ensuring precise interaction for educational and corporate settings across the region.
Communication is enhanced by an integrated OneScreen PTZ camera with 12x optical zoom and a speakerphone with adaptive array microphones. Audio output is delivered through 15W + 15W Dolby stereo speakers. The unit includes dual Gigabit Ethernet ports and dual-band Wi-Fi for robust connectivity. Smart-Boards supplies this model to organizations in the UAE, KSA, Qatar, and other African nations, offering remote guidance for local setup.
Key features
- Integrated OPS PC - Features a slot-in Intel Core i7 7th Gen processor with 8GB RAM and 256GB SSD running Windows 10 Pro.
- 4K UHD Display - 65-inch LG IPS LED panel with 3840 x 2160 resolution, 400 nits brightness, and 1.07 billion colour depth.
- PTZ Camera System - Includes a 1080p OneScreen PTZ camera with 12x optical zoom, 170° rotation, and 72.5° lens angle.
- Audio & Microphone - Equipped with 15W + 15W Dolby stereo speakers and a speakerphone with adaptive array microphones up to 4.6m range.
- Connectivity Options - Provides dual Gigabit Ethernet, dual-band Wi-Fi, three HDMI inputs, and five USB ports for versatile device integration.
- Touch Technology - Utilizes 20-point infrared touch with 2mm accuracy and less than 8ms response time for smooth interaction.
Ideal for: Suitable for classrooms, boardrooms, and collaboration spaces in the GCC and Africa requiring an all-in-one interactive display with built-in computing and conferencing capabilities.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Hubware H5 65
- Product type
- Interactive Flat Panel with OPS PC
- Key features
- 4K UHD display, 20-point infrared touch, Intel Core i7 OPS PC with Windows 10 Pro, Android 6 with Google Play, 1080p PTZ camera, speakerphone, Dolby 15 W + 15 W speakers, remote management
Display
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Surface protection
- 8 Mohs anti-glare tempered glass
- Viewing angle
- 178°
- Display type
- Original LG IPS LED
- Panel technology
- IPS
Touch
- Touch accuracy
- 2 mm
- Touch points
- 20-point multi-touch
- Touch response time
- <8 ms
- Touch technology
- Infrared
- Touchscreen
- Yes, finger or stylus
System
- Processor
- Intel Core i7 7th Gen (OPS PC); quad-core Cortex-A53 1.5 GHz (Android)
- OPS slot
- OPS PC fitted
- Operating system
- Android 6
- RAM
- 8 GB (OPS PC); 2 GB (Android)
- Storage
- 256 GB
Connectivity
- Bluetooth
- Bluetooth 4.0
- DisplayPort
- DisplayPort In × 1
- Ethernet (RJ45)
- RJ45 × 2; Gigabit Ethernet (OPS PC)
- HDMI input
- 3
- HDMI output
- 1
- USB ports
- USB × 5 (auto-switch between Android and OPS PC), camera USB × 1, touch USB × 2
- VGA input
- 1
- Wi-Fi
- Dual-band 802.11 a/b/g/n (2.4 GHz and 5 GHz)
- Ports
- HDMI In × 3, DisplayPort In × 1, VGA In × 1, YPbPr × 1, AV In × 1, Audio In × 1, Mic × 1, HDMI Out × 1, SPDIF × 1, AV Out × 1, earphone × 1, RS-232 × 1, RJ45 × 2
Camera & audio
- Built-in camera
- Yes
- Camera
- OneScreen PTZ camera, 1080p, 12x optical zoom, 16x digital zoom, 72.5° lens, 170° rotation
- Speaker output
- 15 W + 15 W
- Audio
- Dolby stereo speakers
- Microphone
- Speakerphone with adaptive array microphones, 4.6 m range
Physical & warranty
- In the box
- Wall mount kit, display and PTZ camera remotes, Logitech wireless keyboard with touchpad, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand
- Dimensions
- 1504 x 922 x 99 mm
- Weight
- 61.2 kg
- Shipping dimensions
- 1661 x 1041 x 251 mm
- VESA mount
- 400 x 400 mm
- Shipping weight
- 76.2 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the OneScreen Hubware H5 65 still available for purchase?
This model is discontinued. Our team can confirm current availability or recommend the current successor model that meets your specific technical and budget requirements.
Which countries receive delivery for this product?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners at competitive rates.
Is on-site installation included outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
Does the OPS PC support Windows 10 Pro?
Yes, the integrated OPS PC runs Windows 10 Pro, powered by an Intel Core i7 7th Gen processor with 8GB RAM and 256GB SSD storage.
What is the touch technology used?
The display uses infrared touch technology supporting 20-point multi-touch with 2mm accuracy and a response time of less than 8 milliseconds.
Does the unit include a camera and microphone?
Yes, it features a built-in OneScreen PTZ camera with 12x optical zoom and a speakerphone with adaptive array microphones for clear audio capture.
What warranty coverage is provided?
We provide the manufacturer warranty plus Smart-Boards after-sales support. Delivery times depend on the country and order size and are confirmed on the quotation.
