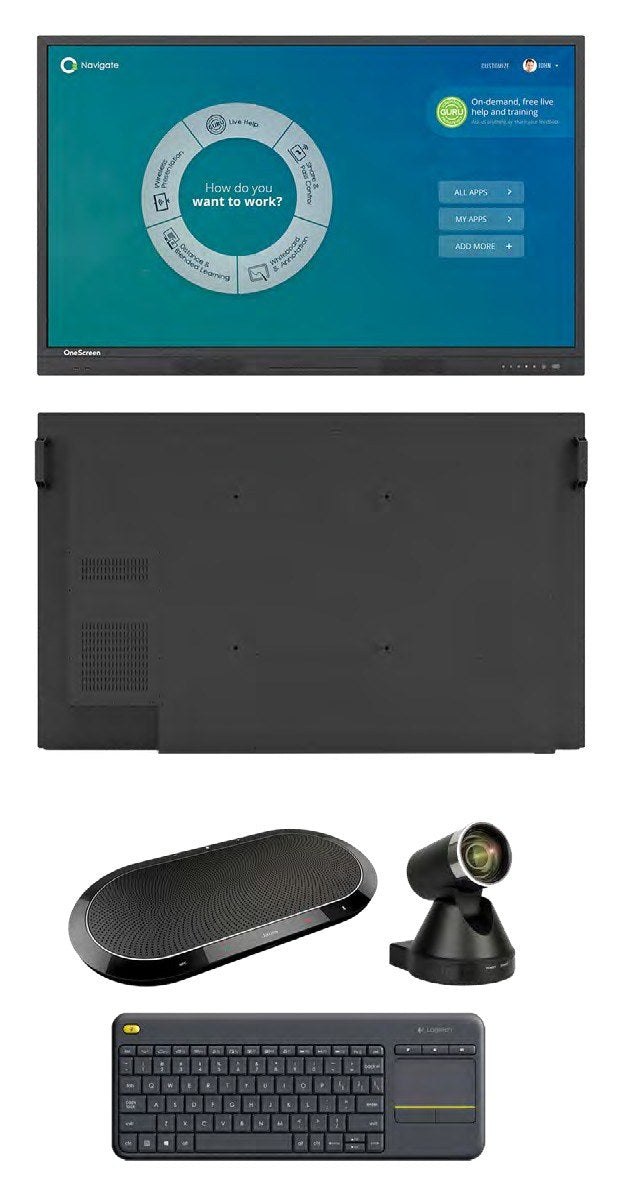

The OneScreen Hubware H5 55-inch is a discontinued interactive flat panel featuring an integrated Intel Core i7 OPS PC with Windows 10 Pro. It offers 4K UHD resolution, 20-point infrared touch, and a built-in 1080p PTZ camera for video conferencing. Smart-Boards supplies this model across the GCC and Africa.
This 55-inch interactive flat panel combines an original LG IPS LED display with an embedded OPS PC. The system runs Windows 10 Pro on an Intel Core i7 processor with 8 GB RAM and 256 GB SSD storage, alongside Android 6 on the display side. It delivers 4K UHD (3840 x 2160) resolution at 60 Hz with 400 nits brightness and 10-bit color depth. The 20-point infrared touch interface supports finger or stylus input with 2 mm accuracy and under 8 ms response time.
Integrated conferencing tools include a 1080p PTZ camera with 12x optical zoom, adaptive array microphones with a 4.6 m range, and dual 15 W Dolby stereo speakers. Connectivity covers three HDMI inputs, DisplayPort, VGA, and dual Gigabit Ethernet ports. The unit ships with a wall mount kit, Logitech wireless keyboard, HDMI, VGA, AUX, and power cables. As this model is discontinued, Smart-Boards can confirm current availability or recommend its successor.
Key features
- Integrated OPS PC - Includes an Intel Core i7 7th Gen processor with 8 GB RAM, 256 GB SSD, and Windows 10 Pro for standalone operation.
- 4K UHD Display - Features a 55-inch LG IPS panel with 3840 x 2160 resolution, 400 nits brightness, and 178° viewing angles.
- Video Conferencing - Built-in 1080p PTZ camera with 12x optical zoom, 170° rotation, and speakerphone with 4.6 m microphone range.
- Touch Technology - 20-point infrared multi-touch with 2 mm accuracy, less than 8 ms response time, and 8 Mohs anti-glare surface.
- Connectivity Options - Provides three HDMI inputs, DisplayPort, VGA, dual Gigabit Ethernet, USB 3.0 ports, and RS-232 for control integration.
- Included Accessories - Package contains wall mount kit, Logitech wireless keyboard, HDMI, VGA, AUX, power cables, two styluses, and extendable wand.
Ideal for: Suitable for meeting rooms and classrooms requiring integrated computing and video conferencing, serving buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Hubware H5 55
- Product type
- Interactive Flat Panel with OPS PC
- Key features
- 4K UHD display, 20-point infrared touch, Intel Core i7 OPS PC with Windows 10 Pro, Android 6 with Google Play, 1080p PTZ camera, speakerphone, Dolby 15 W + 15 W speakers, remote management
Display
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 55"
- Surface protection
- 8 Mohs anti-glare tempered glass
- Viewing angle
- 178°
- Display type
- Original LG IPS LED
- Panel technology
- IPS
Touch
- Touch accuracy
- 2 mm
- Touch points
- 20-point multi-touch
- Touch response time
- <8 ms
- Touch technology
- Infrared
- Touchscreen
- Yes, finger or stylus
System
- Processor
- Intel Core i7 7th Gen (OPS PC); quad-core Cortex-A53 1.5 GHz (Android)
- OPS slot
- OPS PC fitted
- Operating system
- Android 6
- RAM
- 8 GB (OPS PC); 2 GB (Android)
- Storage
- 256 GB
Connectivity
- Bluetooth
- Bluetooth 4.0
- DisplayPort
- DisplayPort In × 1
- Ethernet (RJ45)
- RJ45 × 2; Gigabit Ethernet (OPS PC)
- HDMI input
- 3
- HDMI output
- 1
- USB ports
- USB × 5 (auto-switch between Android and OPS PC), camera USB × 1, touch USB × 2
- VGA input
- 1
- Wi-Fi
- Dual-band 802.11 a/b/g/n (2.4 GHz and 5 GHz)
- Ports
- HDMI In × 3, DisplayPort In × 1, VGA In × 1, YPbPr × 1, AV In × 1, Audio In × 1, Mic × 1, HDMI Out × 1, SPDIF × 1, AV Out × 1, earphone × 1, RS-232 × 1, RJ45 × 2
Camera & audio
- Built-in camera
- Yes
- Camera
- OneScreen PTZ camera, 1080p, 12x optical zoom, 16x digital zoom, 72.5° lens, 170° rotation
- Speaker output
- 15 W + 15 W
- Audio
- Dolby stereo speakers
- Microphone
- Speakerphone with adaptive array microphones, 4.6 m range
Physical & warranty
- In the box
- Wall mount kit, display and PTZ camera remotes, Logitech wireless keyboard with touchpad, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand
- Dimensions
- 1285 x 800 x 91 mm
- Shipping dimensions
- 1430 x 950 x 241 mm
- VESA mount
- 400 x 400 mm
- Shipping weight
- 57.2 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product still in production?
No, the OneScreen Hubware H5 55 is discontinued. Smart-Boards can check current stock levels or recommend the latest successor model for your requirements.
Which countries receive delivery?
Smart-Boards ships to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African countries through established logistics partners at competitive costs.
Is installation included outside the UAE?
On-site installation is provided only within the UAE. For other countries, units are delivered ready for local setup, with remote guidance available if needed.
What is the display resolution?
The screen offers 4K UHD resolution with 3840 x 2160 pixels, 60 Hz refresh rate, and 400 nits brightness on an original LG IPS panel.
Does it include a computer?
Yes, it includes an OPS PC slot with an Intel Core i7 processor, 8 GB RAM, 256 GB SSD, and Windows 10 Pro installed.
What camera and audio features are integrated?
It includes a 1080p PTZ camera with 12x optical zoom and 170° rotation, plus a speakerphone with adaptive array microphones covering up to 4.6 meters.
What is the warranty coverage?
The product comes with the manufacturer's warranty plus Smart-Boards after-sales support. Delivery times and specific terms are confirmed on the quotation.
