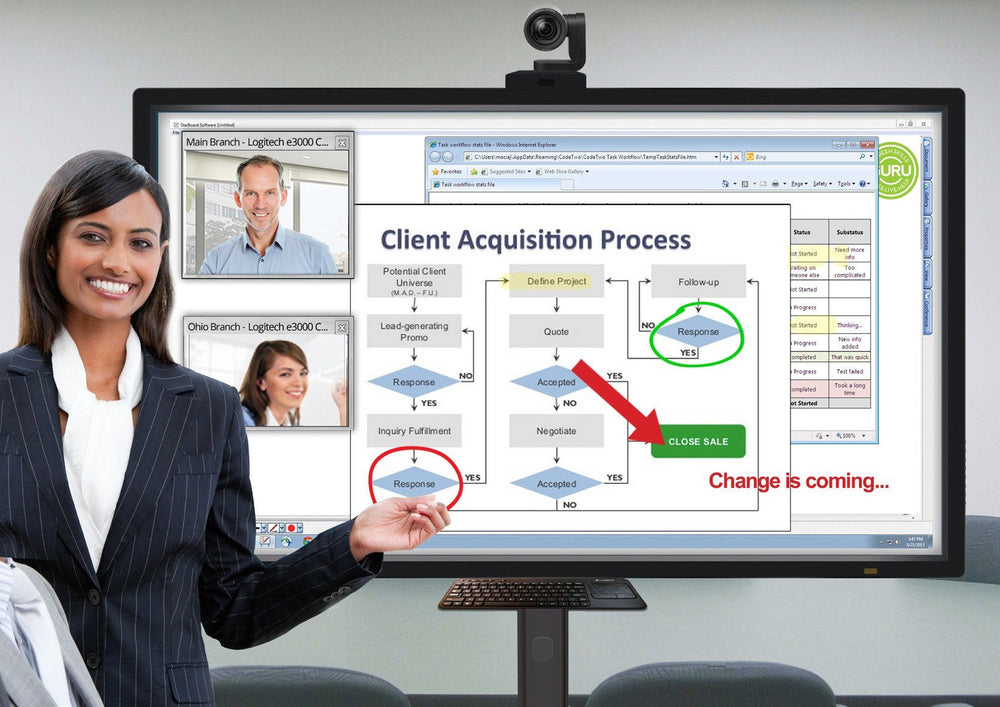

The OneScreen Hubware H2 70 is a discontinued all-in-one interactive flat panel designed for integrated video conferencing and digital signage. It features a 70-inch Full HD infrared touchscreen, a built-in Windows 7 PC with an Intel Core i7 processor, and a Logitech CC3000e camera for unified communications.
This unit combines a 70-inch display with an OPS-style PC, eliminating the need for external computers. The built-in system runs Windows 7 Professional on an Intel Core i7 processor with 8 GB DDR3 RAM and 1 TB + 128 GB SSD storage. The display also includes Android 4.2.2 for standalone TV functions. Connectivity includes four HDMI inputs, VGA, AV, and RS-232 ports.
Integrated conferencing capabilities are provided by a Logitech ConferenceCam CC3000e camera with 10x zoom and 90-degree field of view. The panel supports SIP and H.323 protocols, with encrypted meetings and HTTPS configuration for security. Audio is handled by 10W + 10W speakers and full-duplex omnidirectional microphones. The system weighs 90.4 kg and ships with a wireless keyboard and remote controls.
Key features
- Integrated Computing - Built-in Intel Core i7 PC with 8 GB RAM and 1 TB HDD offers immediate operation without external hardware.
- Video Conferencing - Includes a Logitech CC3000e camera with 10x optical zoom and support for SIP/H.323 protocols.
- Touch Performance - 6-point infrared multi-touch with 8 ms response time and 1.5 mm accuracy for precise interaction.
- Connectivity Options - Features four HDMI inputs, VGA, AV, tuner inputs, and dual built-in Wi-Fi modules for flexible connections.
- Audio System - Equipped with 10W + 10W stereo speakers and omnidirectional full-duplex microphones for clear audio capture.
Ideal for meeting rooms and classrooms requiring integrated computing and conferencing, suitable for buyers across the GCC and Africa seeking comprehensive AV solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Hubware H2 70
- Product type
- All-in-One Interactive Flat Panel with Built-in PC
- Key features
- Full HD infrared touchscreen, 6-point touch, built-in Windows 7 PC (Core i7), Logitech CC3000e camera, conferencing subscription, finger or object writing
- Compatibility
- Touch driver supports Windows 7/8/XP/Vista, Linux, Mac OS X, Android
- Protocols
- SIP, H.323, H.329, WebRTC, LDAP/AD, H.264, VP8, G.711, ICE/STUN/TURN
- Security features
- Encrypted meetings by default; HTTPS login and configuration
Display
- Refresh rate
- 120 Hz
- Resolution
- Full HD
- Screen size
- 70"
- Viewing angle
- 176 x 176 degrees (H x V)
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1 (dynamic)
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 6-point multi-touch
- Touch response time
- 8 ms (scanning speed)
- Touch technology
- Infrared
System
- Processor
- Intel Core i7
- Operating system
- Android 4
- RAM
- 8 GB DDR3
- Storage
- 1 TB
Connectivity
- Ethernet (RJ45)
- Ethernet
- HDMI input
- HDMI In × 4
- USB ports
- USB 2.0 × 1 (display); USB 2.0 × 2, USB 3.0 × 2 (PC)
- Wi-Fi
- 802.11 a/b/g/n (2 built-in wireless modules)
- Ports
- 4 HDMI in and 1 HDMI out, VGA, YPbPr, AV and tuner inputs, RS-232 in and out
Camera & audio
- Built-in camera
- Yes
- Camera
- Logitech ConferenceCam CC3000e, Full HD 1080p, 30 fps, 90° field of view, 10x zoom, 260° pan, 130° tilt
- Speaker output
- 10 W + 10 W
- Speaker configuration
- 2 built-in speakers (left/right)
- Microphone
- Omni-directional full-duplex microphones (speakerphone)
Physical & warranty
- In the box
- Logitech K400 wireless keyboard, monitor remote control, camera remote control
- Dimensions
- 1638 x 1090 x 150 mm
- Weight
- 90.4 kg
- Shipping dimensions
- 1895 x 1166 x 320 mm
- Warranty
- 1 year standard warranty (advanced hardware warranty optional)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product still in production?
No, the OneScreen Hubware H2 70 is discontinued. Smart-Boards can confirm current availability or recommend the latest successor model that matches your technical requirements.
Can you supply this to African countries?
Yes, Smart-Boards ships to GCC and African countries through established logistics partners at the lowest possible cost, ensuring reliable delivery to your region.
Is installation included in other countries?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What is the touch technology?
The panel uses infrared touch technology supporting 6-point multi-touch with a scanning speed of 8 ms and an accuracy of ±1.5 mm.
Does it include a camera?
Yes, it includes a Logitech ConferenceCam CC3000e camera with 1080p resolution, 10x zoom, and a 90-degree field of view for video calls.
What operating systems are supported?
The built-in PC runs Windows 7 Professional (upgradable to Windows 8). The display also supports Android 4.2.2 for standalone media playback.
What is the warranty coverage?
The product comes with a 1-year standard warranty. An advanced hardware warranty option may be available. Smart-Boards provides after-sales support for your region.
