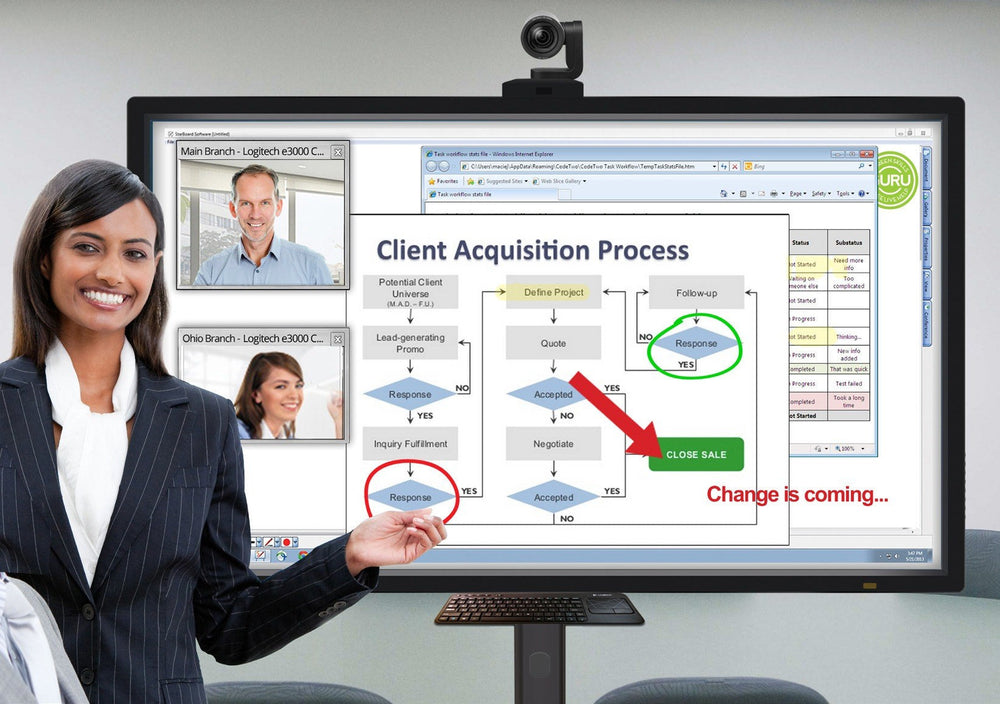

The OneScreen Hubware H1 70 is a discontinued 70-inch all-in-one interactive flat panel featuring a built-in Intel Core i5 PC and Logitech ConferenceCam CC3000e. Smart-Boards can confirm availability or recommend a current successor for schools and offices across the GCC and Africa.
This 70-inch interactive display integrates a Windows 7 Professional PC with an Intel Core i5-4570T processor, 4 GB RAM, and a 128 GB SSD, eliminating the need for external computers. The screen offers Full HD resolution (1920 x 1080) with 6-point infrared multi-touch, allowing multiple users to write or annotate simultaneously. A built-in Logitech CC3000e camera provides 10x optical zoom and a 90-degree field of view for high-quality video conferencing.
Built-in audio includes two 10 W speakers and dual omni-directional microphones with a 6-meter range, supporting SIP and H.323 protocols for enterprise collaboration. Connectivity is extensive, featuring four HDMI inputs, Gigabit Ethernet, USB 3.0 ports, and MHL support. The unit ships with a wireless keyboard, remote, and Hitachi WT-1 tablet, secured by encrypted meetings and HTTPS login capabilities.
Key features
- Built-in Computing - Integrated Windows 7 PC with Intel Core i5-4570T, 4 GB DDR3 RAM, and 128 GB SSD for standalone operation.
- Video Conferencing - Includes a Logitech CC3000e camera with 10x zoom, 90° field of view, and dual microphones for clear remote collaboration.
- Interactive Display - 70-inch Full HD screen with 6-point infrared touch technology and 176-degree viewing angles for clear visibility.
- Connectivity Options - Features four HDMI ports, Gigabit Ethernet, USB 2.0/3.0, MHL, and optical digital audio for versatile device integration.
- Included Accessories - Package contains a Logitech K400 wireless keyboard, monitor remote control, and Hitachi WT-1 whiteboard tablet for immediate use.
Ideal for: Suitable for boardrooms and classrooms requiring integrated computing and conferencing, this unit serves buyers across the GCC and Africa seeking a complete AV solution.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Hubware H1 70
- Product type
- All-in-One Interactive Flat Panel with Built-in PC
- Key features
- Full HD infrared touchscreen, 6-point touch, built-in Windows 7 PC, Logitech CC3000e camera, OneScreen Connect conferencing
- Application
- Bundled collaboration software: Hitachi StarBoard Software 9.6
- Protocols
- SIP, H.323, H.329, WebRTC, LDAP/AD, H.264, VP8, G.711, ICE/STUN/TURN
- Security features
- Encrypted meetings by default; HTTPS login and configuration
Display
- Refresh rate
- 120 Hz
- Resolution
- Full HD
- Screen size
- 70"
- Viewing angle
- 176 x 176 degrees (H x V)
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000,000:1 (dynamic)
Touch
- Touch points
- 6-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Intel Core i5-4570T 2.90 GHz (3.6 GHz Turbo)
- Operating system
- Android 4
- RAM
- 4 GB DDR3 (16 GB maximum)
- Storage
- 128 GB
Connectivity
- Ethernet (RJ45)
- Gigabit Ethernet (PC); Ethernet In × 1 (display)
- HDMI input
- HDMI × 4
- USB ports
- USB × 1 (display); 4 × USB 2.0 and 2 × USB 3.0 (PC)
- Wi-Fi
- 802.11 b/g/n (PC)
- Ports
- HD component × 1, RS-232C × 1, USB × 1, PC × 1, audio In (L/R) × 2, composite video × 1, HDMI × 4, Ethernet In × 1, MHL, optical digital audio
Camera & audio
- Built-in camera
- Yes
- Camera
- Logitech ConferenceCam CC3000e, Full HD 1080p, 30 fps, 90° field of view, 10x zoom, 260° pan, 130° tilt
- Speaker output
- 10 W + 10 W
- Speaker configuration
- 1-way, 2 speakers
- Microphone
- Two omni-directional full-duplex microphones, 6 m (20 ft) range
Physical & warranty
- In the box
- Logitech K400 wireless keyboard, monitor remote control, Hitachi WT-1 whiteboard tablet
- Dimensions
- 1600 x 1110 x 168 mm
- Weight
- 67.6 kg
- Shipping dimensions
- 1742 x 1097 x 229 mm
- Input voltage
- 100–120 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the OneScreen Hubware H1 70 still in production?
No, this model is discontinued. Smart-Boards can check current stock availability or recommend a modern successor that offers updated specs and support for your region.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African countries, using established logistics partners for cost-effective delivery.
Does the product include installation services?
On-site installation is available within the UAE only. For other GCC and African countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What is the screen resolution and touch capability?
The display has a 1920 x 1080 Full HD resolution and supports 6-point infrared multi-touch, allowing multiple users to interact with the content simultaneously.
Does it support direct connection to conferencing systems?
Yes, it supports SIP, H.323, and H.329 protocols, and includes a built-in Logitech CC3000e camera and microphones for integrated video conferencing without extra hardware.
What operating system does the built-in PC run?
The integrated PC runs Windows 7 Professional 64-bit, pre-installed with Hitachi StarBoard Software 9.6 for educational and business collaboration.
What is the weight and shipping dimension?
The unit weighs 67.6 kg, with shipping dimensions of 1742 x 1097 x 229 mm, requiring appropriate handling for transport to GCC and African destinations.
