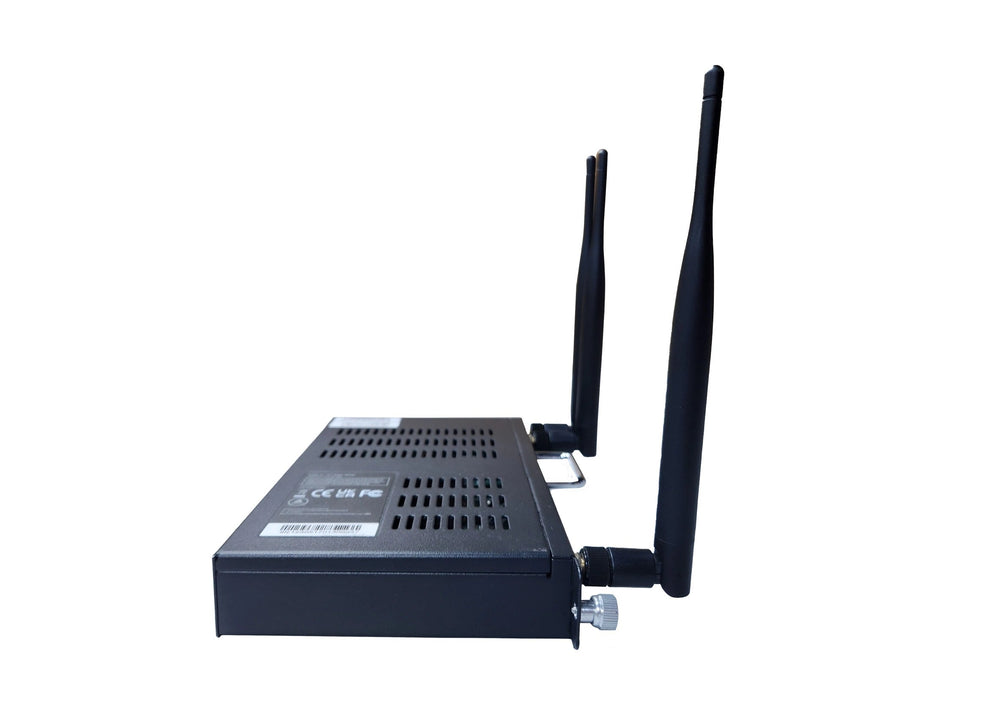

The OneScreen OPS for Android is a slot-in PC module for interactive panels. It features an octa-core CPU, 8 GB RAM, and Android 13. Smart-Boards supplies this accessory across the GCC and Africa.
This Android OPS module provides embedded computing for OneScreen TL6, TL7, and compatible panels. It runs Android 13 with EDLA certification. The hardware includes an octa-core processor and Mali G57 MC5 GPU with a 4.8 TOPS NPU. Connectivity covers Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.2 for robust network integration.
Available in small and large form factors, the unit weighs between 0.75 kg and 1.21 kg. It offers HDMI 2.0 4K at 60 Hz input and output, plus USB 3.0 ports. Operating temperatures range from 0 to 40 °C. As a discontinued first-generation product, it is succeeded by the Android OPS 2 series.
Key features
- Android 13 System - Runs EDLA-certified Android 13 on an octa-core CPU with 8 GB RAM and 128 GB storage for reliable panel operation.
- Wi-Fi 6 Connectivity - Supports 2.4 GHz and 5 GHz Wi-Fi 6 with hotspot capability and Bluetooth 5.2 for wireless device pairing.
- Video Input/Output - Features one HDMI 2.0 input and one HDMI 2.0 output, both supporting 4K resolution at 60 Hz for clear display.
- USB and Audio Ports - Includes three USB 3.0 Type-A ports, one USB Type-C port, and 3.5 mm audio in and line out jacks.
- Form Factor Options - Available in small form (180 x 118 x 30 mm, 0.75 kg) and large form (192 x 180 x 42 mm, 1.21 kg) sizes.
Ideal for: Schools and offices using OneScreen TL6, TL7, or compatible panels requiring an Android module, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- OPS for Android
- Product type
- Android OPS Module
- Key features
- Android 13 EDLA, octa-core CPU, 4.8 TOPS NPU, Wi-Fi 6, Bluetooth 5.2, HDMI 2.0 4K at 60 Hz in and out, small and large form
- Compatibility
- OneScreen Touchscreen TL6 and earlier, OneScreen TL7, OPS slots of other interactive panels
- Form factor
- OPS, small form and large form
System
- Processor
- Octa-core CPU
- Graphics
- Mali G57 MC5 GPU, NPU 4.8 TOPS
- Operating system
- Android 13
- RAM
- 8 GB
- Storage
- 128 GB
- Storage conditions
- -20 to 60 °C, 10% to 90% non-condensing
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- Gigabit Ethernet (1000 Mbps), RJ45 × 1
- HDMI input
- HDMI 2.0 In × 1 (4K at 60 Hz)
- HDMI output
- HDMI 2.0 Out × 1 (4K at 60 Hz)
- USB ports
- USB 3.0 Type-A × 3, USB Type-C × 1 (host 3.0, data only)
- Wi-Fi
- Wi-Fi 6 (2.4 GHz and 5 GHz) with hotspot capability
- Ports
- HDMI In × 1, HDMI Out × 1, USB 3.0 × 3, USB-C × 1, RJ45 × 1, 3.5 mm audio in × 1, 3.5 mm line out × 1
Camera & audio
- Audio in
- 3.5 mm earphone audio in × 1
- Audio out
- 3.5 mm line out × 1
Physical & warranty
- Operating humidity
- 10% to 90% RH, non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 35 W (rated)
- Dimensions
- 180 x 118 x 30 mm (small form); 192 x 180 x 42 mm (large form)
- Weight
- 0.75 kg (small form); 1.21 kg (large form)
- Shipping dimensions
- 245 x 186 x 57 mm (small form); 250 x 261 x 67 mm (large form)
- Shipping weight
- 1.0 kg (small form); 1.47 kg (large form)
- Input voltage
- 12–19 V DC (3 A to 1.84 A)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product currently available?
No. The OneScreen OPS for Android is a discontinued first-generation module. The manufacturer has succeeded it with the Android OPS 2 series. Smart-Boards can confirm specific availability or recommend the current successor model upon request.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations. Delivery relies on established logistics partners to ensure costs remain low. The exact delivery time depends on the country and order size.
Do you offer installation services?
On-site installation is available within the UAE only. For other countries, units are delivered ready for local setup. We provide remote guidance to assist local teams with configuration and initial setup during the process.
What are the power requirements?
The module requires 12–19 V DC input with a current draw between 3 A and 1.84 A. The rated power consumption is 35 W. This ensures compatibility with standard OPS slot power supplies in interactive flat panels.
Does it support wired network connections?
Yes. The device includes one Gigabit Ethernet port (RJ45) supporting 1000 Mbps. This provides a stable wired connection alternative to the Wi-Fi 6 wireless option for environments requiring consistent network performance.
What is the operating temperature range?
The module operates between 0 to 40 °C with 10% to 90% RH non-condensing humidity. Storage conditions range from -20 to 60 °C. These specifications suit standard indoor environments in GCC and African climates.
How is pricing handled for this item?
Pricing is by quotation only. Smart-Boards provides quote-only pricing for education, government, and bulk orders. Contact our team for a formal quotation, which will include confirmed delivery times for your specific location.
