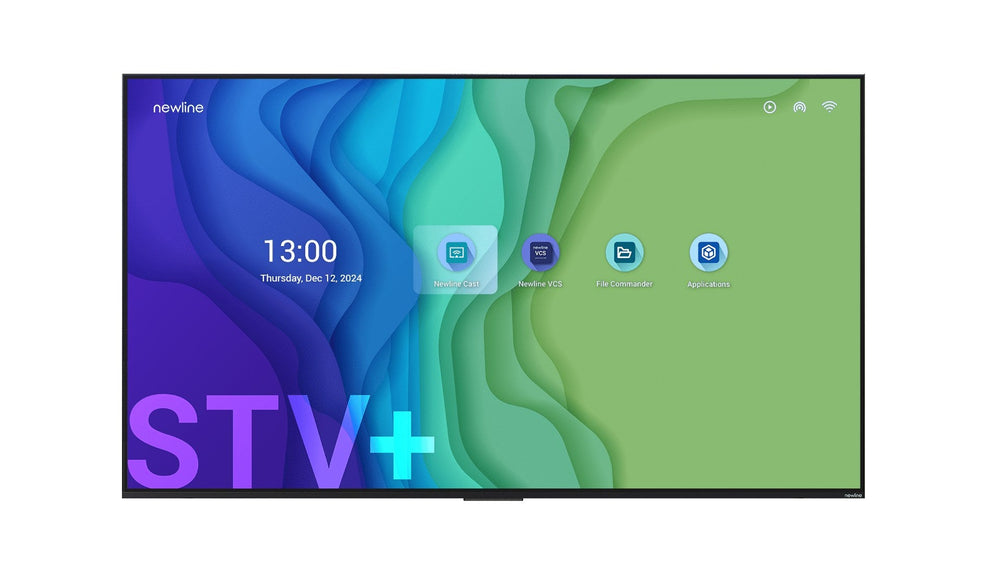

The Newline 75" STV is a professional digital signage display designed for continuous commercial operation. Featuring 4K UHD resolution, HDR support, and a 1 mm bezel, it delivers high-impact visual content. Smart-Boards supplies this unit across the GCC and Africa for corporate and institutional use.
This 75-inch LCD panel provides 4K UHD clarity with 1.07 billion colours and a 4,000:1 contrast ratio for vivid imagery. The ultra-narrow 1 mm bezel ensures clean multi-screen installations, while High Dynamic Range (HDR) enhances detail in bright environments. With 300 nits brightness and 178° viewing angles, it maintains visibility in lobbies, airports, and corporate halls. The non-touch design prioritizes durability for static content distribution.
Built for reliability, the STV series supports 16 hours of operation per day, seven days a week, powered by a quad-core ARM processor. Connectivity includes Wi-Fi 5.0 and compatibility with Newline Cast+ and VCS for flexible content management. Built-in stereo speakers (10 W x 2) offer basic audio output. Weighing 22.7 kg with a 400 x 300 mm VESA mount pattern, it fits standard commercial mounting solutions. Smart-Boards provides quote-only pricing and logistics support for multi-site rollouts.
Key features
- 4K UHD Clarity - Delivers 3840 x 2160 resolution with HDR for high-contrast, detailed visual content.
- Commercial Duty Cycle - Engineered for 16 hours of daily operation, seven days a week, ensuring long-term reliability.
- Ultra-Narrow Bezel - Features a 1 mm bezel width for seamless video wall configurations and clean aesthetics.
- Wireless Casting - Compatible with Newline Cast+ for effortless wireless content sharing from mobile devices.
- Smart Content VCS - Supports Newline VCS broadcast for centralized management of digital signage networks.
Ideal for: Corporate lobbies, educational campuses, retail environments, and public spaces requiring reliable 4K digital signage across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 75" STV
- Product type
- Digital Signage Display
- Key features
- 4K UHD, 400 nits, 5,000:1 contrast, Android 14, Cast+ wireless casting, Signage Pro, HDMI ARC/eARC
- Application
- Digital signage, business presentations, classroom lessons
- Compatibility
- Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
- Dynamic range
- High Dynamic Range (HDR)
Display
- Brightness
- 400 cd/m²
- Colour depth
- 1.07 billion colours
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 5,000:1
- Display type
- Direct LED
- Response time
- 6.5 ms
Touch
- Touchscreen
- Non-touch
System
- Processor
- 4 x A73 2.20 GHz, 4 x A53 2.20 GHz
- Graphics
- Arm Mali-G52
- Operating system
- Android 14
- RAM
- 4 GB
- Storage
- 16 GB
- Operating hours
- 24 hours x 7 days
- Storage conditions
- -20 to 60 °C; 20% to 80% RH (non-condensing)
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- LAN In (RJ45) × 1
- HDMI input
- 3 × HDMI 2.1 (HDCP 2.2, 4K at 30 Hz)
- Serial port
- RS232 × 1
- Wi-Fi
- Wi-Fi 5
- Ports
- USB Type-A 3.0 × 1, USB Type-A 2.0 × 1, HDMI In 2.1 × 3, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Camera & audio
- Speaker output
- 2 x 15 W
- Speaker configuration
- 2.0
Physical & warranty
- Operating humidity
- 10% to 90% RH (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 111 W (standard mode)
- Standby power
- 0.5 W
- Dimensions
- 1668 x 956 x 88 mm
- Weight
- 23.1 kg
- VESA mount
- 400 x 300 mm
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the brightness level of the Newline 75" STV?
The display offers 300 nits of brightness, which is suitable for indoor environments with controlled lighting. For high-ambient light areas, consider additional lighting analysis.
Does this model include a touchscreen?
No, the Newline 75" STV is a non-touch digital signage display. It is designed specifically for passive content viewing rather than interactive use.
Which countries can you deliver to?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners at competitive rates.
Is on-site installation included?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed.
What is the power consumption?
The standard mode consumes 260 W, while standby power is below 0.5 W. This efficiency supports the 16x7 duty cycle requirement for commercial use.
What mounting options are supported?
The unit supports VESA 400 x 300 mm mounting patterns. It weighs 22.7 kg, requiring standard commercial grade brackets for safe wall or stand mounting.
How is pricing determined?
Pricing is by quotation only. We provide tailored quotes including education, government, bulk, and tender options based on your specific country and order size.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
