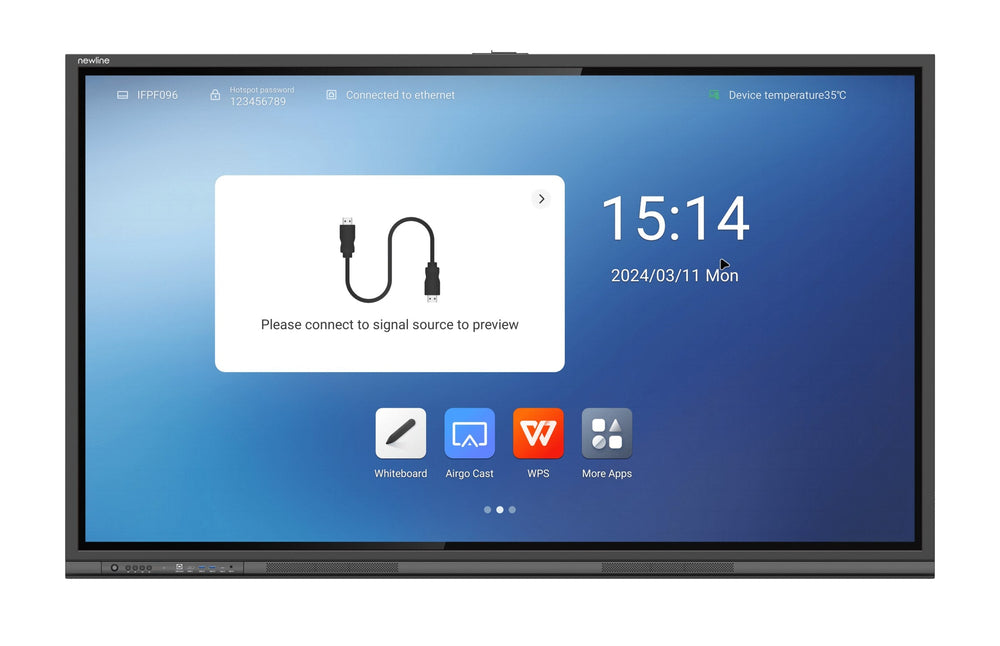

The Newline TT-8623S is an 86-inch interactive flat panel designed for educational and corporate environments. This unit from the S Pro Series offers a large-format display for collaborative work. Smart-Boards supplies this model with quote-only pricing and logistics support for the GCC and Africa.
The Newline TT-8623S features an 86-inch screen size, providing ample visual space for presentations and interactive sessions. As part of the S Pro Series, it serves as a central hub for digital communication in schools, universities, and corporate offices. The panel supports multi-touch input for direct interaction with content.
Smart-Boards acts as an authorised reseller for this Newline product, ensuring genuine hardware for buyers across the GCC and Africa. Delivery timelines depend on the specific country and order size, which are confirmed during the quotation process. We provide live or virtual demonstrations to verify suitability for your site requirements.
Key features
- Large Format Display - The 86-inch screen size offers a high-resolution viewing area suitable for group collaboration and large room installations.
- Interactive Technology - Built-in multi-touch capabilities allow users to write, draw, and navigate content directly on the panel surface.
- S Pro Series Design - Part of the S Pro Series, this model is engineered for durability and consistent performance in high-traffic educational or business settings.
- Direct Connectivity - The unit supports standard input connections for laptops and media players, facilitating easy integration into existing AV setups.
- Authorised Support - Purchased from Smart-Boards, the panel includes manufacturer warranty and after-sales support for the region.
Ideal for: Classrooms, lecture halls, and corporate meeting rooms requiring a large interactive display, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD slot
- Model
- TT-8623S
- Product type
- Interactive Flat Panel
- Key features
- Anti-glare and anti-fingerprint surface, 9H hardness, Stylus or finger writing, Android 14, Wi-Fi 6, Bluetooth 5.2, Integrated PC slot, Wake-on-LAN
Display
- Backlight
- Direct LED
- Brightness
- 400 cd/m²
- Colour depth
- 1.07 billion colours
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Display
- Active area 1895 x 1066 mm
- Frequency response
- 250 Hz–20 kHz
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch points
- 20-point multi-touch
- Touch technology
- Infrared
System
- Processor
- Arm Cortex-A55 x 8, quad-core Mali-G52 GPU
- OPS slot
- Integrated PC slot available
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 64 GB
- Storage conditions
- -20 to 60 °C, 0% to 90% RH (non-condensing)
Connectivity
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- Dual-band 2.4 GHz + 5 GHz, Wi-Fi 6
- Ports
- HDMI In × 3, HDMI Out × 1, VGA In × 1, DisplayPort × 1, USB 3.0 × 3, USB 2.0 × 1, USB Type-B touch × 2, USB-C × 1, RJ-45 × 2, RS-232 × 1, Microphone In × 1
Camera & audio
- Audio out
- Audio Line Out × 1, S/PDIF Out × 1
- Speaker output
- 80 ±3 dB, 20 W × 2 maximum
Physical & warranty
- Mounting type
- Wall-mounted or mobile stand (optional)
- Operating humidity
- 20% to 80% RH (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 650 W (maximum)
- Standby power
- Less than 0.5 W
- Dimensions
- 1981 x 1186 x 111 mm
- Weight
- 63 kg
- Shipping dimensions
- 2119 x 228 x 1290 mm
- Shipping weight
- 79.5 kg (gross)
- Input voltage
- 100–240 V AC, 6.5 A max
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver the Newline TT-8623S to?
Yes, we supply the Newline TT-8623S to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain. We also ship to selected African nations through established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For deliveries to other countries, the panel arrives ready for local setup, with remote guidance available from our team to assist with initial configuration.
Does Smart-Boards stock the Newline TT-8623S?
Stock levels vary by region and order size. We confirm availability and delivery times during the quotation process, ensuring you receive accurate information before purchasing.
What is the warranty coverage for this interactive panel?
The Newline TT-8623S comes with the standard manufacturer warranty. Smart-Boards also provides after-sales support to assist with technical queries and service needs in the GCC and Africa.
Can I view the panel before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations of the Newline TT-8623S. These sessions allow you to verify the display quality and interactive features relevant to your specific use case.
How is pricing determined for this model?
Pricing is by quotation only. We provide quote-only pricing that includes education, government, and bulk options to ensure competitive rates for multi-site rollouts across the region.
Is Newline an authorised brand for Smart-Boards?
Yes, Smart-Boards is an authorised reseller of Newline products. We supply genuine hardware and documentation to ensure compliance with your procurement requirements.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
