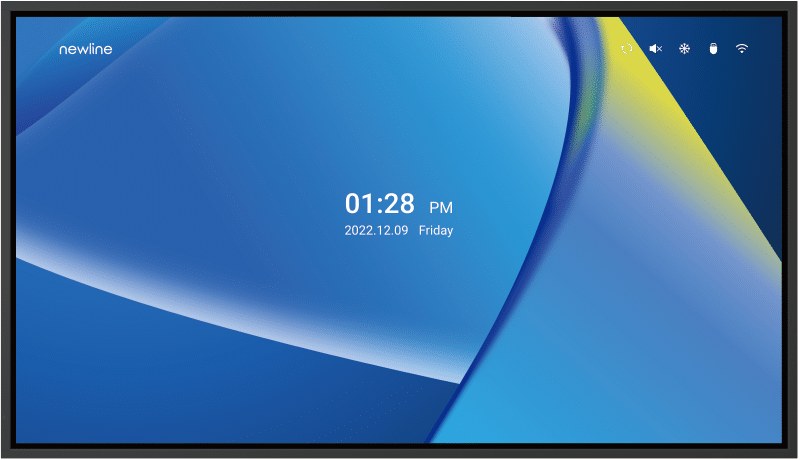

The Newline NT+ Series TT-8623NT is an 86-inch interactive flat panel designed for large collaborative spaces. This model provides a high-resolution surface for digital interaction. Smart-Boards supplies this unit across the GCC and African markets, offering expert guidance on deployment and logistics.
This 86-inch interactive flat panel from Newline's NT+ Series is engineered for environments requiring a substantial display area. The large screen format supports clear visibility for groups, making it suitable for boardrooms, lecture halls, and training centres. The unit functions as a standalone digital surface, allowing users to engage with content directly through touch inputs without the need for external projection hardware.
Smart-Boards acts as an authorised reseller for Newline, ensuring genuine product supply for clients in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African nations. While the device arrives ready for local setup, on-site installation services are currently limited to the UAE. For other regions, customers receive the unit with remote guidance to facilitate correct mounting and power configuration by local partners.
Key features
- 86-inch Display - Features a large 86-inch screen size for optimal visibility in spacious meeting rooms or classrooms.
- Interactive Surface - Built-in touch technology enables direct digital interaction with applications and content.
- NT+ Series Design - Part of Newline's NT+ range, focusing on reliable performance for professional and educational settings.
- Flat Panel Form - Slim interactive flat panel construction replaces traditional projection setups with a compact, wall-mounted solution.
- GCC & Africa Supply - Available for delivery to GCC and African countries through Smart-Boards' established logistics network.
Ideal for universities, ministries, and corporate offices across the GCC and Africa requiring large-format digital collaboration tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TT-8623NT
- Product type
- Non-Touch Display
- Key features
- 4K UHD, non-touch, wireless screen sharing, cloud storage access, USB file access, Android 11, USB and OTA firmware update, multi-language support
Display
- Backlight
- LED
- Brightness
- 400 cd/m²
- Colour depth
- 1.07 billion colours (10-bit)
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178°
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1 (typical)
- Frequency response
- 250 Hz – 20 kHz
- Response time
- 8 ms (typical)
Touch
- Touchscreen
- No (non-touch)
System
- Processor
- Quad-core Arm Cortex-A55, 1.5 GHz (up to 1.9 GHz)
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Storage conditions
- 15 to 45 °C, 20% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- Wi-Fi 6 (pluggable module)
- Ports
- HDMI In × 3, USB 2.0 × 3, RJ-45 LAN In × 1, RS-232 × 1
Camera & audio
- Speaker output
- 15 W × 2 average, 20 W × 2 maximum
Physical & warranty
- Mounting type
- Wall-mounted / mobile cart
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 350 W (standard mode)
- Standby power
- Under 0.5 W
- Dimensions
- 1946 x 1116 x 94 mm
- Weight
- 42 kg (net)
- VESA mount
- 800 x 400 mm
- Input voltage
- 100–240 V AC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Newline TT-8623NT available for purchase?
Yes, the Newline NT+ Series TT-8623NT is available for quotation through Smart-Boards. As an authorised reseller, we supply this interactive flat panel to institutions across the GCC and Africa. Pricing is provided based on your specific location and order volume.
Which countries can receive this interactive panel?
Smart-Boards ships this unit to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and selected African countries. Delivery costs are minimised through established logistics partners. Lead times vary by country and order size, which is confirmed in your quotation.
Does Smart-Boards provide installation services?
On-site installation is available within the UAE only. For deliveries to other GCC or African countries, the unit is supplied ready for local setup. We provide remote guidance to assist your team with mounting and initial configuration during the deployment process.
What warranty coverage is included?
The product comes with the manufacturer's standard warranty. Smart-Boards also provides after-sales support for our clients in the GCC and Africa. Specific warranty terms are detailed in the product documentation provided upon purchase.
Can I see a demonstration before buying?
Yes, we offer live or virtual demonstrations of the Newline TT-8623NT. This allows you to verify the touch responsiveness and display quality. Contact our team to schedule a viewing session tailored to your technical requirements.
Is the pricing fixed or quoted?
Pricing is by quotation only. We offer education, government, bulk, and tender options to suit different procurement needs. The final cost depends on the destination country, order size, and any applicable logistics requirements.
What are the key specs of this model?
The Newline TT-8623NT is an 86-inch interactive flat panel. It belongs to the NT+ Series and is designed for large-scale visual collaboration. It serves as a direct replacement for traditional projection systems in modern digital workspaces.
